Descriere
Huawei S5735-S24T8J4XEZ-V2 Switch is standard gigabit Ethernet switch with 24 x porturi 10/100/1000Base-T, 8 X 2.5 Porturi GE SFP+(or 2*10GE SFP+ ports), 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports and 1+1 alimentare de rezervă. It provides GE electrical & 2.5GE optical downlink ports, 10GE uplink ports and one extended slot.
Huawei S5735-S24T8J4XEZ-V2 Switch Product Overview
The switch offers Forwarding performance: 162 Mpps and Switching capacity*: 216 Gbps/520 Gbps. It is based on next-generation high-performing hardware and software platform. S5735-S24T8J4XEZ-V2 supports simplified operations and maintenance (O&M), și rețea Ethernet flexibilă. De asemenea, oferă Strat îmbunătățit 3 caracteristici și caracteristici IPv6 mature.
În același timp, the switch provides a range of VLAN slicing functions to meet diversified SLA requirements of different services and customers. Service isolation and bandwidth guarantee are implemented based on QoS. Slices can be completely isolated from each other without affecting each other. Traffic is isolated at the physical layer, and network slicing is performed for services on the same physical network. The Network Slicing technology can be used at the access, agregare, and core layers to meet differentiated SLA requirements of new services on campus networks.
S5735-S-V2 switches can be used in various scenarios. De exemplu, poate fi folosit ca comutator de acces sau de agregare într-o rețea de campus sau ca comutator de acces pentru rețeaua metropolitană.

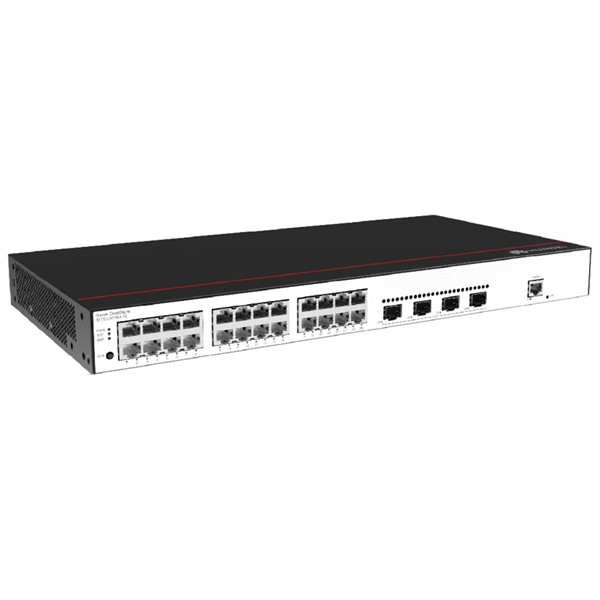

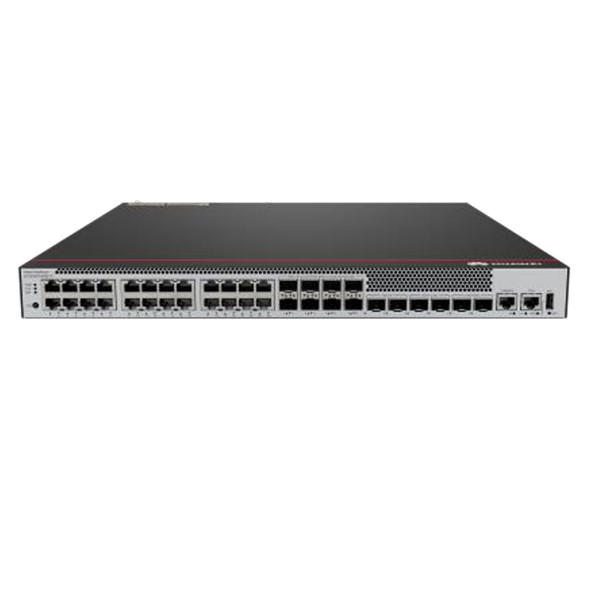

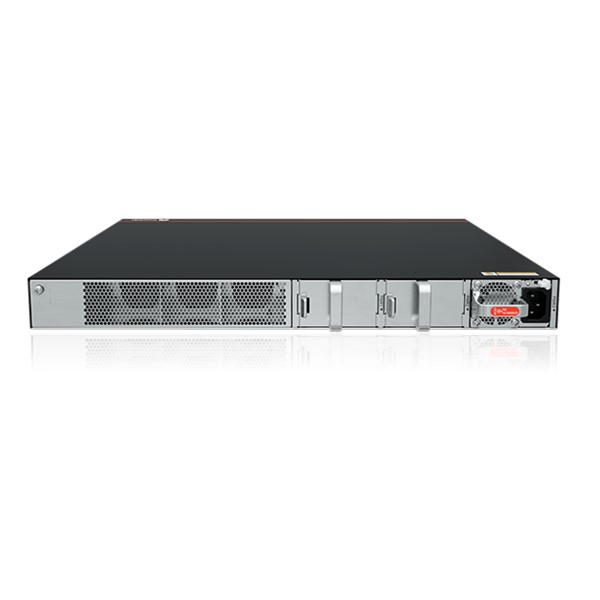

Huawei S5735-S24T8J4XEZ-V2 Switch Product Pictures
Huawei S5735-S24T8J4XEZ-V2 Switch Product Specifications
| Modelul produsului | CloudEngine S5735-S24PN4XE-V2 | CloudEngine S5735-S24T8J4XEZ-V2 | CloudEngine S5735-S24P8J4XEZ-V2 | CloudEngine S5735-S24T8J4XE-XA-V2 | CloudEngine S5735-S48PN4XE-V2 |
| Performanță de redirecționare | 144 Mps | 162 Mps | 162 Mps | 162 Mps | 276 Mps |
| Capacitatea de comutare2 | 248 Gbps/520 Gbps* | 216 Gbps/520 Gbps | 216 Gbps/520 Gbps | 216 Gbps/520 Gbps | 368 Gbps/520 Gbps* |
| Porturi fixe | 24 x 10/100/1000/2.5GE Base-T ports, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE | 24 x 10M/100M/1000M Base-T ports , 8 x 2.5GE SFP ports (can be switched to 2 x porturi SFP+ 10GE) ,4 x porturi SFP+ 10GE , 2 x porturi de stivă 12GE | 48 x 10/100/1000/2.5GE Base-T ports, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE | ||
| PoE | Sprijinit, PoE+ | – | Sprijinit, PoE+ | – | Sprijinit, PoE+ |
| Modul de putere | N+1 backup | 1+1 alimentare de rezervă | 3 x power modules, N+1 alimentare de rezervă | 2 x built-in AC power modules, 1+1 alimentare de rezervă | N+1 backup |
| Expansion Slots | – | Reserved rear card slot | Reserved rear card slot | – | – |
| Caracteristici MAC | In compliance with IEEE 802.1D | ||||
| Învățare și îmbătrânire automată a adresei MAC | |||||
| Static, dinamic, și intrări de adresă MAC blackhole | |||||
| Filtrarea pachetelor pe baza adreselor MAC sursă | |||||
| VLAN | 4094 VLAN-uri | ||||
| VLAN de voce | |||||
| MUX VLAN | |||||
| Atribuire VLAN bazată pe adrese MAC, protocoale, subrețele IP, politici, și porturi | |||||
| Rutare IP | Static routes, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6, ECMP, routing policies, and policy-based routing | ||||
| Interoperabilitate | VBST (compatibil cu PVST/PVST+/RPVST) | ||||
| LNP (similar cu DTP) | |||||
| VCMP (similar cu VTP) | |||||
Huawei S5735-S24T8J4XEZ-V2 Switch Product Features
- S5735-S-V2 provides a series of mechanisms to defend against DoS attacks and user-targeted attacks. Atacurile DoS sunt vizate de switch-uri și includ SYN flood, Teren, Ştrumf, și atacurile de inundații ICMP. Atacurile vizate de utilizator includ atacuri false pe serverul DHCP, Falsificarea adresei IP/MAC, Flood de solicitări DHCP, și modificarea valorii DHCP CHADDR.
- S5735-S-V2 configurează și menține o tabelă de legare DHCP snooping, și aruncă pachetele care nu se potrivesc cu intrările din tabel. Caracteristica DHCP snooping port de încredere asigură că utilizatorii se conectează numai la serverul DHCP autorizat.
- S5735-S-V2 is equipped with two pluggable power modules that work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements.
- S5735-S-V2 supports Smart Link, care implementează backup-ul uplink-urilor. One CloudEngine S5735-S-V2 switch can connect to multiple aggregation switches through multiple links, îmbunătățirea semnificativă a fiabilității dispozitivelor de acces.
Huawei S5735-S24T8J4XEZ-V2 Switch and More Models
S5735-S24U4XE-V2 24 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE 3 surse de alimentare, N+1 power supply backup PoE++(90W)
S5735-S24P8J4XEZ-V2 24 x porturi 10/100/1000Base-T, 8 X 2.5 Porturi GE SFP+(or 2*10GE SFP+ ports), 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports One extended slot 3 surse de alimentare, N+1 alimentare de rezervă
S5735-S48T4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE 1+1 alimentare de rezervă
S5735-S48P4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE 3 surse de alimentare, N+1 power supply backup PoE+
S5735-S48P4XEZ-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports One extended slot 3 surse de alimentare, N+1 power supply backup PoE+
S5735-S48U4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE 3 surse de alimentare, N+1 power supply backup PoE++(90W)
Huawei S5735-S24T8J4XEZ-V2 Switch Ordering Info
| Model | Descriere produs |
| CloudEngine S5735S24T4XE-V2 | CloudEngine S5735-S24T4XE-V2 (24 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE, fără modul de alimentare) |
| CloudEngine S5735S24T4XEZ-V2 | CloudEngine S5735-S24T4XEZ-V2 (24*10/100/1000porturi BASE-T, 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S24P4XE-V2 | CloudEngine S5735-S24P4XE-V2 (24 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE, PoE+, fără modul de alimentare) |
| CloudEngine S5735S24P4XEZ-V2 | CloudEngine S5735-S24P4XEZ-V2 (24*10/100/1000porturi BASE-T (PoE+), 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S24U4XE-V2 | CloudEngine S5735-S24U4XE-V2 (24 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 porturi de stivă x12GE, PoE++, fără modul de alimentare) |
| CloudEngine S5735S24T8J4XE-XA-V2 | CloudEngine S5735-S24T8J4XE-XA-V2 (24*10/100/1000porturi BASE-T, 8*2.5Porturi GE SFP (or 2*10GE SFP+ ports), 4*10Porturi GE SFP+, 2*12GE stack ports, dual built-in AC power) |
| CloudEngine S5735S24T8J4XEZ-V2 | CloudEngine S5735-S24T8J4XEZ-V2 (24*10/100/1000porturi BASE-T, 8*2.5Porturi GE SFP (or 2*10GE SFP+ ports), 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S24P8J4XEZ-V2 | CloudEngine S5735-S24P8J4XEZ-V2 (24*10/100/1000porturi BASE-T (PoE+), 8*2.5Porturi GE SFP (or 2*10GE SFP+ ports), 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S48T4XE-V2 | CloudEngine S5735-S48T4XE (48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE, fără modul de alimentare) |
| CloudEngine S5735S48T4XE-XA-V2 | CloudEngine S5735-S48T4XE-XA-V2 (48*10/100/1000porturi BASE-T, 4*10Porturi GE SFP+, 2*12GE stack ports, dual built-in AC power) |
| CloudEngine S5735S48T4XEZ-V2 | CloudEngine S5735-S48T4XEZ-V2 (48*10/100/1000porturi BASE-T, 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S48P4XE-V2 | CloudEngine S5735-S48P4XE-V2 (48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi de stivă 12GE, PoE+, fără modul de alimentare) |
| CloudEngine S5735S48P4XEZ-V2 | CloudEngine S5735-S48P4XEZ-V2 (48*10/100/1000porturi BASE-T (PoE+), 4*10Porturi GE SFP+, 2*12GE stack ports, expansion card slot, fără modul de alimentare) |
| CloudEngine S5735S48U4XE-V2 | CloudEngine S5735-S48U4XE-V2 (48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x porturi 12GEstack, PoE++, fără modul de alimentare) |
| PAC80S12-CN | 80 W Modul de alimentare CA |
| PAC180S12-CN | 180 W Modul de alimentare CA |
| PDC240S12-CN | 240 W Modul de alimentare CC |
| PAC600S12-PB | 600W AC &240 Modul de alimentare V DC |
| PDC1K2S12-CE | 1200 W Modul de alimentare CC |
| PAC600S56-EB | 600 W Modul de alimentare AC PoE |
| PAC1000S56-EB | 1000 W Modul de alimentare AC PoE |
| PDC1000S56-EB | 1000 W Modul de alimentare CC PoE |
| N1-S57S-M-Lic | Seria S57XX-S SW de bază,Per Dispozitiv |
| N1-S57S-M-SnS1Y | Seria S57XX-S SW de bază,SnS,Per Dispozitiv,1An |
| N1-S57S-F-Lic | N1-CloudCampus,fundație,Seria S57XX-S,Per Dispozitiv |
| N1-S57S-F-SnS1Y | N1-CloudCampus,fundație,Seria S57XX-S,SnS,Per Dispozitiv,1An |
| N1-S57S-A-Lic | N1-CloudCampus,Avansat,Seria S57XX-S,Per Dispozitiv |
| N1-S57S-A-SnS1Y | N1-CloudCampus,Avansat,Seria S57XX-S,SnS,Per Dispozitiv,1An |
| N1-S57S-FToA-Lic | N1-Upgrade-Foundation la Advanced,S57XX-S,Per Dispozitiv |
| N1-S57S-FToA-SnS1Y | N1-Upgrade-Foundation la Advanced,S57XX-S,SnS,Per Dispozitiv,1An |
Huawei S5735-S24T8J4XEZ-V2 Switch Product Applications
