Descriere
Huawei S5735-S24PN4XE-V2 Switch is standard 2.5G Ethernet switch with 24 x 10/100/1000/2.5G Base-T ports, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports, 3 surse de alimentare, N+1 power supply backup and PoE+. Oferă 24/48 x 2.5GE downlink ports and 4 x 10GE uplink ports and 2 x stack ports.
Huawei S5735-S24PN4XE-V2 Switch Product Overview
The switch offers Forwarding performance: 144 Mpps and Switching capacity*: 248 Gbps/520 Gbps. It is developed based on next-generation high-performing hardware and software platform. S5735-S-V2 2.5GE supports simplified operations and maintenance (O&M), and flexible Ethernet networking. În plus, S5735-S-V2 is equipped with two pluggable power modules that work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements.
S5735-S24PN4XE-V2 also provides enhanced Layer 3 features and mature IPv6 features. S5735-S-V2 2.5GE Switches can be used in various scenarios. De exemplu, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network

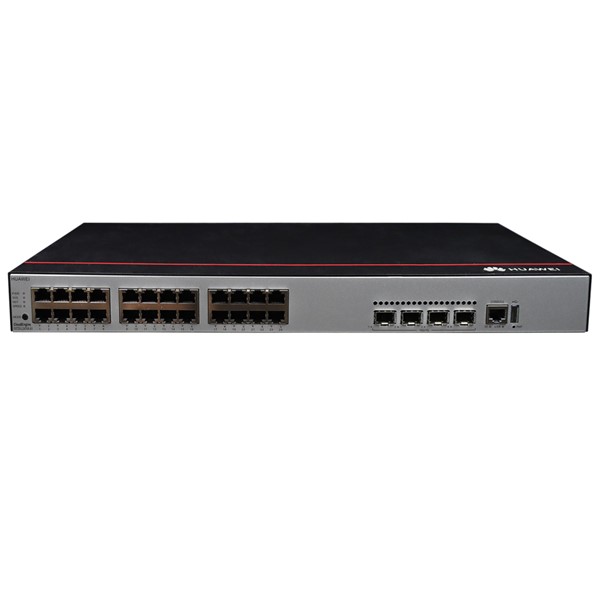

Huawei S5735-S24PN4XE-V2 Switch Product Pictures
Huawei S5735-S24PN4XE-V2 Switch Product Specifications
| Modelul produsului | CloudEngine S5735-S24PN4XE-V2 | CloudEngine S5735-S24T8J4XEZ-V2 | CloudEngine S5735-S24P8J4XEZ-V2 | CloudEngine S5735-S24T8J4XE-XA-V2 | CloudEngine S5735-S48PN4XE-V2 |
| Performanță de redirecționare | 144 Mps | 162 Mps | 162 Mps | 162 Mps | 276 Mps |
| Capacitatea de comutare2 | 248 Gbps/520 Gbps* | 216 Gbps/520 Gbps | 216 Gbps/520 Gbps | 216 Gbps/520 Gbps | 368 Gbps/520 Gbps* |
| Porturi fixe | 24 x 10/100/1000/2.5GE Base-T ports, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports | 24 x 10M/100M/1000M Base-T ports , 8 x 2.5GE SFP ports (can be switched to 2 x porturi SFP+ 10GE) ,4 x porturi SFP+ 10GE , 2 x 12GE stack ports | 48 x 10/100/1000/2.5GE Base-T ports, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports | ||
| PoE | Sprijinit, PoE+ | – | Sprijinit, PoE+ | – | Sprijinit, PoE+ |
| Modul de putere | N+1 backup | 1+1 power supply backup | 3 x power modules, N+1 power supply backup | 2 x built-in AC power modules, 1+1 power supply backup | N+1 backup |
| Expansion Slots | – | Reserved rear card slot | Reserved rear card slot | – | – |
| Caracteristici MAC | In compliance with IEEE 802.1D | ||||
| MAC address auto-learning and aging | |||||
| Static, dinamic, și intrări de adresă MAC blackhole | |||||
| Filtrarea pachetelor pe baza adreselor MAC sursă | |||||
| VLAN | 4094 VLAN-uri | ||||
| VLAN de voce | |||||
| MUX VLAN | |||||
| Atribuire VLAN bazată pe adrese MAC, protocoale, subrețele IP, politici, și porturi | |||||
| Rutare IP | Static routes, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6, ECMP, routing policies, and policy-based routing | ||||
| Interoperabilitate | VBST (compatibil cu PVST/PVST+/RPVST) | ||||
| LNP (similar cu DTP) | |||||
| VCMP (similar cu VTP) | |||||
Huawei S5735-S24PN4XE-V2 Switch Product Features
- S5735-S-V2 is equipped with two pluggable power modules that work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements.
- S5735-S-V2 supports Smart Link, care implementează backup-ul uplink-urilor. One CloudEngine S5735-S-V2 switch can connect to multiple aggregation switches through multiple links, îmbunătățirea semnificativă a fiabilității dispozitivelor de acces.
- S5735-S-V2 uses the mature, stable VRP platform and supports IPv4/IPv6 dual stack, IPv6 RIPng.
- S5735-S-V2 can be deployed on a pure IPv4 network, o rețea IPv6 pură, sau o rețea partajată IPv4/IPv6, contribuind la realizarea tranziției de la IPv4 la IPv6.
Huawei S5735-S24PN4XE-V2 Switch Product and More Models
S5735-S24U4XE-V2 24 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports 3 surse de alimentare, N+1 power supply backup PoE++(90W)
S5735-S48T4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports 1+1 power supply backup
S5735-S48P4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports 3 surse de alimentare, N+1 power supply backup PoE+
S5735-S48P4XEZ-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports One extended slot 3 surse de alimentare, N+1 power supply backup PoE+
S5735-S48U4XE-V2 48 x porturi 10/100/1000Base-T, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports 3 surse de alimentare, N+1 power supply backup PoE++(90W)
Huawei S5735-S24PN4XE-V2 Switch Ordering Info
| Model | Descriere produs |
| CloudEngine S5735S24PN4XE-V2 | CloudEngine S5735-S24PN4XE-V2 (24 x 10/100/1000/2.5G Base-T ports, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports, PoE+, fără modul de alimentare) |
| CloudEngine S5735S48PN4XE-V2 | CloudEngine S5735-S48PN4XE-V2 (48 x 10/100/1000/2.5G Base-T ports, 4 X 10 Porturi GE SFP+, 2 x 12GE stack ports, PoE+, fără modul de alimentare) |
| PAC600S56-EB | 600 W Modul de alimentare AC PoE |
| PAC1000S56-EB | 1000 W Modul de alimentare AC PoE |
| PDC1000S56-EB | 1000 W Modul de alimentare CC PoE |
| N1-S57S-M-Lic | Seria S57XX-S SW de bază, Per Dispozitiv |
| N1-S57S-M-SnS1Y | Seria S57XX-S SW de bază, SnS, Per Dispozitiv, 1An |
| N1-S57S-F-Lic | N1-CloudCampus, fundație, Seria S57XX-S, Per Dispozitiv |
| N1-S57S-F-SnS1Y | N1-CloudCampus, fundație, Seria S57XX-S, SnS, Per Dispozitiv, 1An |
| N1-S57S-A-Lite-Lic | N1-CloudCampus,Advanced-Lite,S57XX-S, Per Dispozitiv |
| N1-S57S-A-Lite-SnS-3Y | N1-CloudCampus,Advanced-Lite,S57XX-S,SnS,Per Dispozitiv,3 An |
| N1-S57S-FToA-Lite-Lic | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,Per Dispozitiv |
| N1-S57S-FToA-Lite-SnS3Y | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,SnS,Per Dispozitiv,3 An |
Huawei S5735-S24PN4XE-V2 Switch Product Applications
