Descriere
Cisco C9200CX-12T-2X2G-A Switch is a next generation of compact, enterprise-class, access layer solutions with 12 ports data 2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks
Cisco C9200CX-12T-2X2G-A Switch Product Overview
Cisco C9200CX-12T-2X2G-A Switch is the foundation of Cisco’s next generation of compact, enterprise-class, access layer solutions. With the same rich feature set as the other models in the Catalyst® 9200 serie, this fanless switch is sold in various configurations, including data-only, Power over Ethernet Plus (PoE+), and 802.3bt Type 3 Clasă 6 60W UPOE models. The switch delivers exceptional table scales (MAC/route/ACL) and buffering capabilities for enterprise applications. What’s more, Cisco C9200CX-12T-2X2G-A delivers up to 128 Gbps of switching capacity, with up to 95 Mpps of forwarding performance.
The model provides nonblocking 1 Gigabit Ethernet (1G) speeds (10/100 Mbps to 1 Gbps) over PoE+ capable copper ports, and nonblocking multigigabit (mGig) speeds (10/100 Mbps to 1GB/2.5GB/5GB/10GB) over 802.3bt Type 3 Clasă 6 60W UPOE copper ports. These models offer uplink options that support nonblocking 10G Small Form-Factor Pluggable (SFP+) and 1G SFP to meet diverse campus needs when connecting to aggregation or core devices.

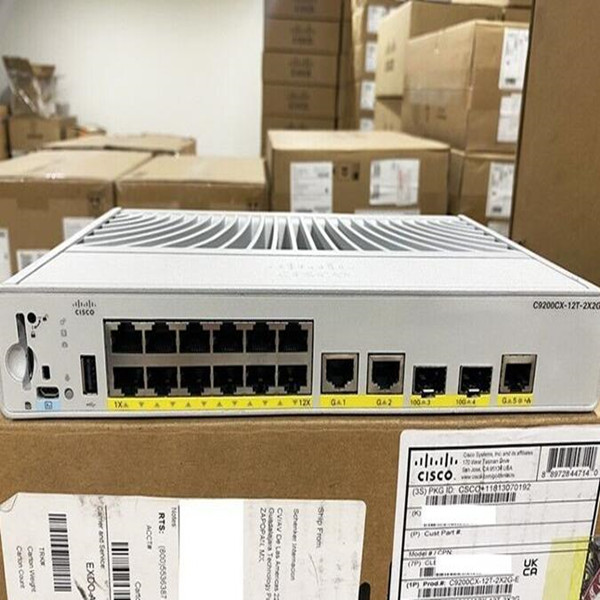

Cisco C9200CX-12T-2X2G-A Switch Product Pictures
Cisco C9200CX-12T-2X2G-A Switch Product Specifications
| C9200CX-12T-2X2G | 12 date porturi | 2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks | Powered by 802.3bt class 6 PoE | Fără ventilator |
| Optional auxiliary 80W AC or DC power adaptor | ||||
| C9200CX-8P-2X2G | 8 porturi PoE+ complet | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W AC internal | Fără ventilator |
| C9200CX-8UXG-2X | 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) | 2x 10G SFP+ fixed uplinks | 315W AC internal | Fără ventilator |
| C9200CX-12P-2XGH | 12 porturi PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fără ventilator |
| C9200CX-8P-2XGH | 8 porturi PoE+ complet | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fără ventilator |
| C9200CX-8UXG-2XH | 8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) | 2x 10G SFP+ fixed uplinks | 315W HVDC/AC internal | Fără ventilator |
| C9200CX-12P-2X2G | 12 porturi PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 315W AC internal | Fără ventilator |
Cisco C9200CX-12T-2X2G-A Switch Product Features
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
● Layer 3 capabilități, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (Acces SD)
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center
● Plug and Play (PnP) activat: A simple, sigur, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
Cisco C9200CX-12T-2X2G-A Switch and More Models
| C9200CX-12T-2X2G-A | Catalyst 9200CX 12-port 1G, 2x10G and 3x1G, date, Network Advantage |
| C9200CX-12P-2X2G-E | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Essentials |
| C9200CX-12P-2X2G-A | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, Network Advantage |
| C9200CX-8P-2X2G-E | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Essentials |
| C9200CX-8P-2X2G-A | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, Network Advantage |
| C9200CX-8UXG-2X-E | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Essentials |
| C9200CX-8UXG-2X-A | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, Network Advantage |
| C9200CX-12P-2XGH-E | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials |
| C9200CX-12P-2XGH-A | Catalyst 9200CX 12-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage |
| C9200CX-8P-2XGH-E | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Essentials |
| C9200CX-8P-2XGH-A | Catalyst 9200CX 8-port 1G, 2x10G and 2x1G, PoE+, HVDC, Network Advantage |
| C9200CX-8UXG-2XH-E | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Essentials |
| C9200CX-8UXG-2XH-A | Catalyst 9200CX 4-port mGig and 4-port 1G, 2x10G, UPOE, HVDC, Network Advantage |
Cisco C9200CX-12T-2X2G-A Switch Product Applications
