Descrição
Huawei S3700-28TP-PWR-EI Switch is the next-generation energy-saving Layer 3 with Twenty-four 10/100Base-TX ports, duas portas SFP 1000Base-X, and two gigabit combo ports (10/100/1000Base-T or 100/1000Base-X) AC power supply PoE+ and Forwarding performance: 9.6 MPs.
Huawei S3700-28TP-PWR-EI Switch Product Overview
Huawei S3700-28TP-PWR-EI Switch uses cutting-edge hardware and Huawei Versatile Routing Platform (PRV) software to provide high-performance access and aggregation to an enterprise campus network. The S3700 is easy to install and maintain. With its flexible VLAN deployment, PoE capabilities, comprehensive routing functions, and capability to migrate to an IPv6 network, the S3700 helps enterprise customers build next-generation IT networks.
Huawei S3700-28TP-PWR-EI Switch is a box device that is 1 Você está chapado. It is available in a standard version (E), an enhanced version (NÃO), and an advanced version (OI). The SI version provides Layer 2 functions and basic Layer 3 funções. The EI version supports complex routing protocols and provides more functions than the SI version offers.

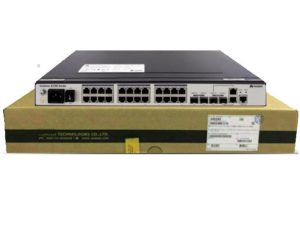

Huawei S3700-28TP-PWR-EI Switch Product Pictures
Huawei S3700-28TP-PWR-EI Switch Product Specifications
| Marca | Huawei |
| Modelo | S3700-28TP-PWR-EI |
| Tipo de Produto | Fast Ethernet switch, POE switch |
| Nível de aplicação | Three layers |
| Taxa de transmissão | 10/100Mbps |
| Exchange method | Store-and-forward |
| Largura de banda do backplane | 64Gbps |
| Taxa de encaminhamento de pacotes | 9.6MPs |
| Tabela de endereços MAC | 16K |
| Estrutura portuária | Non-modular |
| Número de portas | 28 |
| Descrição da porta | 24 10/100Base-TX, 2 1000Base-X SFP, 2 Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X) |
| Modo de transmissão | Full duplex/half duplex adaptive |
| Network standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X |
| tensão | CA 100-240V |
| Poder | 875C, PoE external power supply 740W |
| Tamanho do produto | 442×420×43.6mm |
| product weight | ＜4.3kg (excluding power module) |
| Padrões ambientais | Temperatura de trabalho: 0-50℃ |
| Umidade de trabalho: 10%-90% | |
| Temperatura de armazenamento: -5-55℃ | |
| Umidade de armazenamento: 10%-90% |
Huawei S3700-28TP-PWR-EI Switch Product Features
- Support 4K VLAN
- Support Guest VLAN, VLAN de voz, SuperVLAN
- Support VLAN based on MAC/protocol/IP subnet
- Support QinQ function
- Support flexible QinQ function
- Apoiar 1:1 VLAN switching function
- Support N:1 VLAN switching function
- Support to limit the rate of port receiving and sending messages
- Support message redirection
- Support port-based traffic monitoring, support dual-speed three-color CAR function
- Apoiar 8 priority queues per port
- Support WRR, RRD, SP, WRR, SP, DRR+SP and other queue scheduling algorithms
- Support 802.1p and DSCP priority remarking of packets
- Support L2 (Camada 2)-L4 (Camada 4) packet filtering function, providing illegal frame filtering function based on source MAC address, destination MAC address, source IP address, destination IP address, porta, protocolo, VLAN
Huawei S3700-28TP-PWR-EI Switch Product And more Models
S3700-26C-HI
S3700-28TP-EI-24S-AC
S3700-28TP-EI-AC
S3700-28TP-EI-DC
S3700-28TP-EI-MC-AC
S3700-28TP-PWR-EI
S3700-28TP-PWR-SI
S3700-28TP-SI-AC
S3700-28TP-SI-DC
S3700-52P-EI-24S-AC
S3700-52P-EI-24S-DC
S3700-52P-EI-48S-AC
S3700-52P-EI-48S-DC
S3700-52P-EI-AC
S3700-52P-EI-DC
S3700-52P-PWR-EI
S3700-52P-PWR-SI
S3700-52P-SI-AC
Huawei S3700-28TP-PWR-EI Switch Product Applications
