Descrição
Huawei MA5626-24 EPON is an industry-leading remote multi dwelling unit (MDU), which is used on a passive optical network (PON) and provides wireless fidelity (Wi-fi) coverage in Fiber To The Building (FTTB) hotspots and supplies power for access points (APs) or video cameras used for safety city construction
Huawei MA5626-24 EPON Product Overview
The product is a box-type device configurable with a GPON uplink ports and up to 8, 16, ou 24 downstream ports for broadband, voip, pots, and Internet access services. The product measures 1-U high and 19-inch wide, providing two GPON or GE network ports and four GE and FE (total eight) LAN user ports, and supplying power for terminals by using category-5 cables. Além disso, MA5626 PoE features easy installation and maintenance, high power output, alta largura de banda, integração, mute design, and high stability. It is applied in FTTB construction scenarios and placed in network cabinets in corridors. MA5626 PoE connects to the optical line terminal (OLT) by using gigabit-capable passive optical network (GPON) ports and to IP cameras or APs by using category-5 cables, providing a channel for transporting video or Wi-Fi services and supplying power for terminals by using category-5 cables and the PoE technology

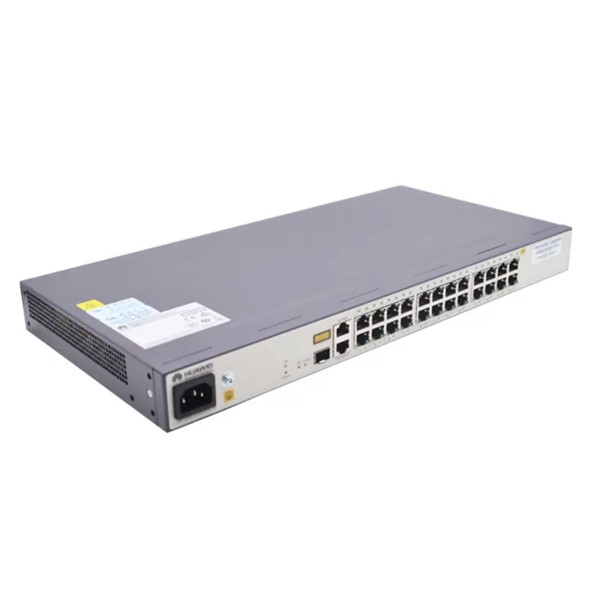

Huawei MA5626-24 EPON Product Pictures
Huawei MA5626-24 EPON Product Specifications
| Dimensões (A×L×P) | 43.6mm×442mm×220mm |
| Porta do lado da rede | The MA5626 PoE provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows: •• 2×GPON •• 2×GE (óptico) •• 1×GE (óptico) + 1×GPON |
| Porta do lado do usuário | 4×GE (elétrico) +4×FE (elétrico) |
| Temperatura de operação | -40oC a 55oC; inicialização a -25oC |
| Umidade | 5% para 95% (Sem Condensação) |
| Modo de dissipação de calor | Sem fãs; resfriamento passivo |
| Fonte de energia | AC: 220V |
| Fonte de alimentação PoE | 30C (802.3no) and 15W (802.3af) |
| Capacidade de proteção contra raios | 6kV |
| Peso | 3.5kg |
Huawei MA5626-24 EPON Product Features
- MA5626 automatically adapts to GPON/EPON/GE upstream transmission modes, meeting different FTTx access requirements. Além disso, it supports both the SIP and the H.248 protocol for interconnection with the softswitch.
- MA5626 provides 6 kV surge protection and Type C dual-PON port protection to ensure device reliability.
- MA5626 supports forward PoE, which provides a power source for Wi-Fi terminals in a fiber to the wireless (FTTW) rede. It also supports reverse PoE so that it can be powered in FTTB scenarios.
Huawei MA5626-24 EPON and More Models
MA5626-8 GPON is available in desktop and standard models
MA5626-8 EPON
MA5626-16 GPON
MA5626-16 EPON
MA5626-24 GPON
MA5626-24 EPON
MA5620-8 GPON with voice interface
MA5620-8 EPON with a voice interface
MA5620-16 GPON with voice interface
MA5620-16 EPON with voice interface
MA5620-24 GPON with a voice interface
MA5620-24 EPON with a voice interface
Huawei MA5626-24 EPON Product Applications
