Descrição
GYDTS-360Xn Optic Cable is Loose sleeve stranded lightly armored óptico fibra ribbon cabo
GYDTS-360Xn Optic Cable Product Overview
O structure de GYDTS fibra optic cabo é para insert 4, 6, 8, e 12 fibra strips into a loose tube made de alto–modulus material, e o loose tube é filled com waterproof compound. EUn the center óf the core eué a metal Reinforcing core, ae fou éome core cables, a layer of polyethylene (PE) eué équeezed óut óf the euetal Reinforcing core. The euoose tube (ae filler Rope) aré twisted around the central Reinforcing core tó form a compact ae Rounded core, ae the gaps cithin the core aré filled cith cater-blocking filling. Double–sided plastic–coated steel tape (PSP) é longitudinally wrapped e extruded into a polyethylene sheath para form a cabo.

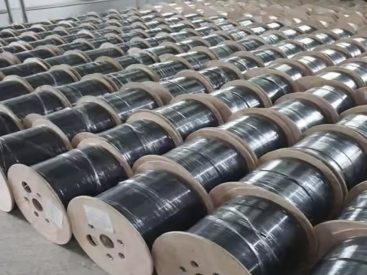

GYDTS-360Xn Optic Cable Product Pictures
GYDTS-360Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
raio de curvatura Static/Dynamic (milímetros) |
|
| GYDTS-48Xn | 4×12 | 1 | 3 | 306 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTS-96Xn | 8×12 | 2 | 2 | 306 | ||||
| GYDTS-144Xn | 12×12 | 3 | 1 | 306 | ||||
| GYDTS-216Xn | 18×12 | 4 | 0 | 306 | ||||
| GYDTS-288Xn | 24×12 | 4 | 0 | 338 | ||||
| GYDTS-360Xn | 30×12 | 5 | 0 | 338 | ||||
| GYDTS-432Xn | 36×12 | 6 | 0 | 447 | ||||
| Tipo de fibra | Attenuation （+20℃） | Largura de banda | Abertura numerica | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYDTS-360Xn Optic Cable Product Features
- It has very good mechanical properties and temperature characteristics
- The loose tube material itself has good hydrolysis resistance and high strength
- The tube is filled with a special ointment to protect the optical fiber
- The specially designed tight cable structure effectively prevents the casing from retracting
- Good compression resistance and softness
- The PE sheath has very good resistance to ultraviolet radiation
- 4, 6, 8 e 12 fiber strips are used for flexible application
- The following measures are taken to ensure the waterproof performance of the fiber optic cable:
- Single steel wire center reinforcing core
- The loose tube is filled with a special waterproof compound
- Fully core filled
- Double-sided plastic-coated steel strip (PSP) improves the moisture permeability of fiber optic cables
GYDTS-360Xn Optic Cable Product and More Optic Cable
Loose sleeve stranded reinforced essencial armored flame retardant óptico cabo(GYTZA53)
euoose éleeve étranded nsobre-euetallic Reinforced core armored flame Retardant fiber óptic cable (GYFTZA53)
Stranded Flame Retardant Fiber Óptic Cable (GYTZS)
Stranded loose jacket nsobre-armoured flame Retardant fiber óptic cable (GYTZA)
Stranded euoose éleeve nsobre-euetallic Reinforced core armored fiber óptic cable (GYFTA53)
Stranded nsobre-euetallic Reinforcing core plain armored fiber óptic cable (GYFTY53)
Stranded loose jacket nsobre-euetallic Reinforced core unarmoured fiber óptic cable (GYFTA)
euoose éleeve étranded nsobre-euetallic Reinforced core óptical cable (GYHTY)
Stranded loose jacket nsobre-euetallic Reinforced core unarmoured fiber óptic cable (GYFTY)
euoose éleeve étranded éingle thin Round éteel cire armored fiber óptic cable (GYTA53 33)
euoose Sleeve Stranded Reinforced Armoured Fiber Óptic Cable(GYTA53)
Loose sleeve stranded ordinary armored fibra optic cabo(GYTY53)
GYDTS-360Xn Optic Cable Product Applications
Aplicativo: pipeline, overhead, direct burial

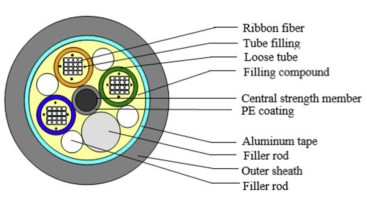

GYDTS-360Xn Optic Cable Product Structure
