Description
ZTE XFTO Service Board is ZTE 8-port 10GE uplink board applied for OLT C600 C650 C680
ZTE XFTO Service Board Product Overview
ZTE XFTO Service Board is ZTE 8-port 10GE uplink board applied for OLT C600 C650 C680.
ZXA10 C600 is a large-capacity optical access OL device based on the TTAN platform. It can meet the requirements of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconstruction, carrier-class QoS and security assurance. ZXA10 C600 is a 11U high-fiber access device with 17/15 line card slots, which can support 272/240 GPON/10G PON ports.
ZXA10 C680 is a super-capacity optical access OLT device based on TITAN platform. It can meet the requirements of ultra-high bandwidth access, big video, fixed-mobile convergence, network reconstruction, carrier-class QoS and security assurance. It is a 60S high optical access and aggregation device with 36 line card slots, the largest in the industry, and can provide 576 GPON/10G PON ports.
ZXA10 C650 is a medium-sized optical access OLT device based on the TITAN platform, which can meet the requirements of ultra-high bandwidth access, large video, fixed-mobile convergence, network reconstruction, carrier-class QoS and security assurance. It is a 6U high device with 7 line card slots, which can support 112*GPON/10GPON ports.

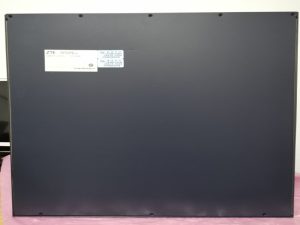

ZTE XFTO Service Board Product Pictures
ZTE XFTO Service Board Product Features
- Management and control module: Implement card configuration (including traffic processing and optical module configuration) and optical module status detection.
- Switching module: Switch data between optical modules and the backplane bus and implements VLAN and Ethernet functions.
- 10GE/GE optical module : Provide a 10GE/GE optical interface for connecting to the peer device.
- Clock module: Process the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
ZTE XFTO Service Board and C650 C680 Services Boards
| Interface Type | Interface Card | ||
| ZXA10 C600 | ZXA10 C650 | ZXA10 C680 | |
| Out-of-band NM interface (RJ45) | SFUL | SFUL | IEMP |
| Local serial interface (console) | SFUL | SFUL | IEMP |
| Service interface | GPON/XG-PON1/ XGS-PON EPON/10G-EPON Ethernet (P2P) TDM | GPON/XG-PON1/ XGS-PON P2P | GPON/10G-GPON |
| Unit | 11U (19inch/21inch) | 6U (19 inch) | 60*25cm |
ZTE XFTO Service Board and the Related Service Boards
| Interface Type | Interface card | Interface Quantity |
| GPON | GFGH | 16 |
| 10G-EPON | EFTH/EFTL | 16 |
| XG-PON | GFXH | 16 |
| XGS-PON | GFTH | 16 |
| XG-PON/GPON | GFBH | 16 |
| XGS-PON/GPON | GFCH | 16 |
ZTE XFTO Service Board Product Applications
