Description
Huawei SmartAX MA5801-FL04-H1 is a small sized box shaped OLT, which provides four FlexPON service ports and can work with a FlexPON optical module to support GPON, XG(S) PON, and XG(S) PON&GPON access.
Huawei SmartAX MA5801-FL04-H1 Product Overview
It is a small-sized box-shaped optical line terminal (OLT). The product is applicable to buildings,villages, or other sparsely populated areas to deploy networks in an economic and efficient way.
MA5801-FL04-H1provides four FlexPON service ports and can work with a FlexPON optical module to support GPON, XG(S) PON, and XG(S) PON&GPON access. It also provides a unified bearer platform for multiple services, such as broadband, voice, video streaming, and video backhaul services. The product enables one fiber network to carry all types of services, simplifying the network architecture and reducing the OPEX.

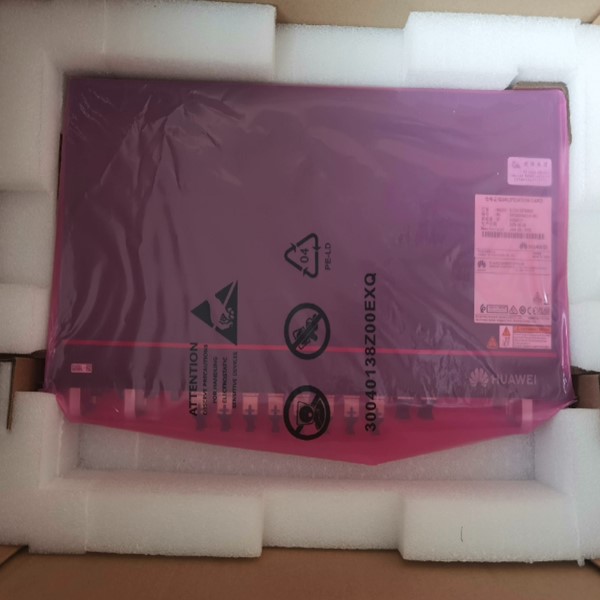

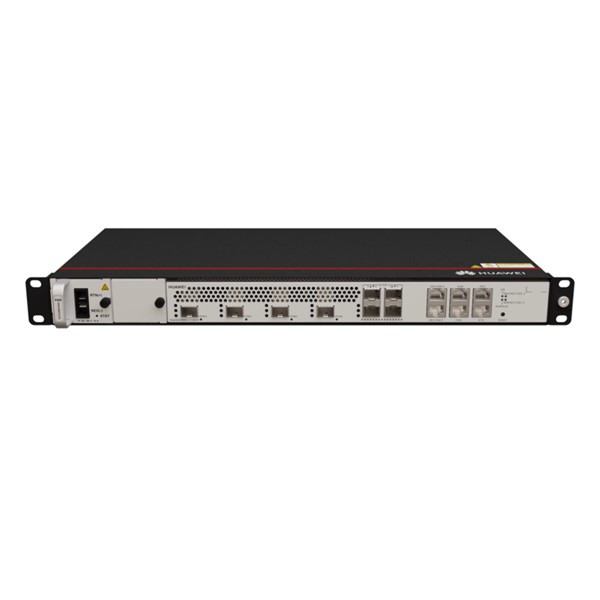

Huawei SmartAX MA5801-FL04-H1 Product Pictures
Huawei SmartAX MA5801-FL04-H1 Product Specifications
| Metrics | Description |
| Dimensions (W x D x H) | Without mounting ears: 442 mm x 220 mm x 43.6 mm (17.4 in. x 8.66 in. x 1.72 in.) |
| With IEC mounting ears: 482.6 mm x 220 mm x 43.6 mm (19 in. x 8.66 in. x 1.72 in.) | |
| With ETSI mounting ears: 531 mm x 220 mm x 43.6 mm (20.91 in. x 8.66 in. x 1.72 in.) | |
| Weight without packaging | l DC power supply: 3.0 kg |
| l AC power supply: 3.2 kg | |
| Weight with packaging | l DC power supply: 5.7 kg |
| l AC power supply: 5.9 kg | |
| Power supply mode | l DC power supply |
| l AC power supply | |
| Operating voltage range | l DC power supply: –38.4 V to –72 V |
| l AC power supply: 100 V to 240 V | |
| Rated voltage | l DC power supply: –48 V/–60 V |
| l AC power supply: 110 V/220 V | |
| Maximum input current | l DC power supply: 6 A |
| l AC power supply: 2.5 A | |
| Operating temperature range | –40°C to +65°C. The minimum startup temperature is –25°C. |
| Operating humidity range | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | Below 4000 m. The air density varies with the altitude, which affects the heat dissipation capability of the device. Therefore, the operating temperature of the device changes with the altitude. |
| System forwarding capacity | 185 Gbit/s |
| Maximum number of MAC addresses | 32768 |
| Maximum number of | 512 |
| connected ONTs | |
| Maximum entries in the IPv4 routing table | 8192 |
| Maximum entries in the IPv6 routing table | 4096 |
| Maximum entries in the ARP table | 16384 |
| Bit error rate (BER) in full load | When FEC is enabled, GPON BER: < 10 e-10, and XG(S)-PON BER: < 10 e-12. |
| Number of upstream optical ports | 4 x GE/10GE |
| Number of upstream electrical ports | 2 x GE/2.5GE |
| Number of service ports | 4 x FlexPON (GPON, XG(S)-PON, XG(S)-PON&GPON Combo) |
| System reliability metrics | System availability in typical configuration: > 99.999% |
| Mean time between failures (MTBF): about 45 years | |
| Power consumption | DC power supply: |
| l Static power consumption: 41 W | |
| l Typical power consumption: 62 W l Maximum power consumption: 78 W AC power supply: | |
| l Static power consumption: 42 W | |
| l Typical power consumption: 62 W | |
| l Maximum power consumption: 79 W |
Huawei SmartAX MA5801-FL04-H1 Product Features
- To fast construct FMC networks, mobile operators can fully utilize existing backhaul network resources and cabinet space for building FTTH networks. Specifically, they can deploy the product in their mobile cabinets and route drop fibers in a short distance to cover surrounding households. This enables fast network deployment, shortens the time to market (TTM), accelerates the return on investment (ROI), and facilitates an upward business spiral.
- To cover remote and sparsely populated areas with national broadband, this product can be used together with different optical modules and the one stop outdoor site solution. This enables fast deployment of long distance FTTH networks. In g eographically complicated areas such as mountainous areas and islands, the upstream fiber deployment is costly and time consuming. The microwave backhaul solution can be used to implement long distance and highly reliable FTTH network access, accelerating the deployment by 70% and striking a balance between network coverage and investment.
- Supports 4 Flex-PON service ports and works with Flex-PON optical modules to implement Flex-PON access.
Huawei SmartAX MA5801-FL04-H1 Product Applications
