Description
Huawei S5735-S48S4XE-V2 Switch is is standard gigabit Ethernet switch with 48 x GE SFP ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports and 1+1 power supply backup. It provides all GE downlink ports,10GE uplink ports and 2 stack ports.
Huawei S5735-S48S4XE-V2 Switch Product Overview
It is developed based on next-generation high-performing hardware and software platform. The switch supports simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. Meanwhile, S5735-S48S4XE-V2 provides a series of mechanisms to defend against DoS attacks and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and changing of the DHCP CHADDR value. Moreover, S5735-S-V2 sets up and maintains a DHCP snooping binding table, and discards the packets that do not match the table entries. The DHCP snooping trusted port feature ensures that users connect only to the authorized DHCP server.
Huawei S5735-S48S4XE-V2 Switch Product Pictures
Huawei S5735-S48S4XE-V2 Switch Product Specifications
| Product Model | CloudEngine S5735-S24ST4XE-V2 | CloudEngine S5735-S48S4XE-V2 |
| Forwarding Performance | 132 Mpps | 168 Mpps |
| Switching Capacity2 | 176 Gbps/520 Gbps | 224 Gbps/520 Gbps |
| Fixed Ports | 24 x GE SFP ports (8 of which are dual-purpose 10/100/1000 or SFP ports), 4 x 10GE SFP+ ports, 2 x dedicated stack ports | 48 x GE SFP ports, 4 x 10GE SFP+ ports, 2 x dedicated stack ports |
| Power Supply Type | 1+1 power supply backup | |
| MAC Features | In compliance with IEEE 802.1D | |
| MAC address auto-learning and aging | ||
| Static, dynamic, and blackhole MAC address entries | ||
| Packet filtering based on source MAC addresses | ||
| VLAN Features | 4094 VLANs | |
| Voice VLAN | ||
| MUX VLAN | ||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, and BGP4+ | |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | |
| LNP (similar to DTP) | ||
Huawei S5735-S48S4XE-V2 Switch Product Features
- 5735-S-V2 supports intelligent stack (iStack). This technology combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability.
- S5735-S-V2 provides a range of VLAN slicing functions to meet diversified SLA requirements of different services and customers. Service isolation and bandwidth guarantee are implemented based on QoS. Slices can be completely isolated from each other without affecting each other. Traffic is isolated at the physical layer, and network slicing is performed for services on the same physical network. The Network Slicing technology can be used at the access, aggregation, and core layers to meet differentiated SLA requirements of new services on campus networks.
- S5735-S-V2 provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. The CampusInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.
Huawei S5735-S48S4XE-V2 Switch Product Ordering Info
| CloudEngine S5735S24ST4XE-V2 | CloudEngine S5735-S24ST4XE-V2 (24*GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| CloudEngine S5735S48S4XE-V2 | CloudEngine S5735-S48S4XE-V2 (48*GE SFP ports, 4*10GE SFP+ ports, without power module) |
| PAC80S12-CN | 80 W AC Power Module |
| PAC180S12-CN | 180 W AC&240 V DC Power Module |
| PAC600S12-PB | 600W AC &240 V DC Power Module |
| PDC1K2S12-CE | 1200 W DC Power Module |
| N1-S57S-M-Lic | S57XX-S Series Basic SW, Per Device |
| N1-S57S-M-SnS1Y | S57XX-S Series Basic SW, SnS, Per Device, 1Year |
| N1-S57S-F-Lic | N1-CloudCampus, Foundation, S57XX-S Series, Per Device |
| N1-S57S-F-SnS1Y | N1-CloudCampus, Foundation, S57XX-S Series, SnS, Per Device, 1Year |
| N1-S57S-A-Lite-Lic | N1-CloudCampus,Advanced-Lite,S57XX-S, Per Device |
| N1-S57S-A-Lite-SnS-3Y | N1-CloudCampus,Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |
| N1-S57S-FToA-Lite-Lic | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,Per Device |
| N1-S57S-FToA-LiteSnS-3Y | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |

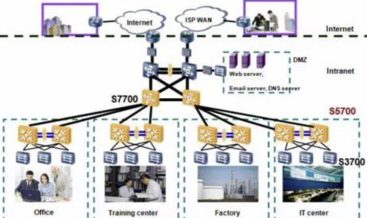

Huawei S5735-S48S4XE-V2 Switch Product Applications
