Description
Huawei S5731-S48S4X Switch is a next-generation standard gigabit switch 48 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports 1+1 power backup Forwarding performance: 125 Mpps and Switching capacity: 176 Gbps/672 Gbps
Huawei S5731-S48S4X Switch Product Overview
It is a next-generation standard gigabit switch that provides GE electrical/optical downlink ports and 10GE uplink ports. S5731-S48S4X supports simplified operations and maintenan ce (O&M), intelligent stack (iStack), flexible Ethernet networking. At the same time, the switch supports zero touch deployment, replaceme nt of faulty devices without additional configuration,USB based deployment, batch configuration, and batch remote upgrade. The capabilities facilitate device deployment, upgrade, service provisioning, and other management and maintenance operations, and a lso greatly reduce O&M costs. Additionally, Huawei S5731-S48S4X can be managed using SNMP v1/v2c/v3, CLI, web based network management system, or SSH v2. 0. It also supports RMON, multiple log hosts, port traffic statistics collection, and network quality a nalysis, which facilitate network optimization and reconstruction.

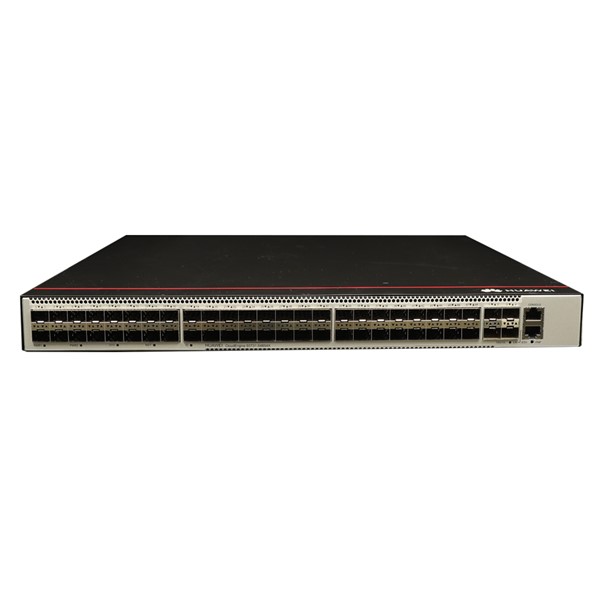

Huawei S5731-S48S4X Switch Product Pictures
Huawei S5731-S48S4X Switch Product Specifications
| Product Model | S5731-S32ST4X | S5731-S32ST4X-A | S5731-S48S4X | S5731-S48S4X-A |
| S5731-S32ST4X-D | ||||
| Forwarding Performance | 125 mpps | 125 mpps | 125 mpps | 125 mpps |
| Switching Capacity2 | 216/672 Gbit/s | 216/672 Gbit/s | 308/672 Gbit/s | 308/672 Gbit/s |
| Fixed Ports | 24 x 1/2.5GE SFP ports, 8 x 10/100/ | 44 x 1/2.5GE SFP, 4 x GE SFP, 4 x 10GE SFP+ ports | ||
| 1000Base-T Ethernet ports, 4 x 10GE SFP+ ports | ||||
| PoE+ | Not supported | Not supported | Not supported | Not supported |
| MAC Features | 64,000 MAC entries | |||
| MAC address learning and aging | ||||
| Static, dynamic, and blackhole MAC address entries | ||||
| Packet filtering based on source MAC addresses | ||||
| VLAN Features | 4094 VLANs | |||
| Guest VLAN, voice VLAN | ||||
| GVRP | ||||
| MUX VLAN | ||||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||||
| 1:1 and N:1 VLAN mapping | ||||
| SVF | Plug-and-play SVF client | |||
| Automatic software and patch loading to clients | ||||
| One-click and automatic delivery of service configurations | ||||
| Independent client operations | ||||
| VXLAN | VXLAN L2 and L3 gateways | |||
| Centralized and distributed gateways | ||||
| BGP-EVPN | ||||
| Configured through the NETCONF protocol | ||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | |||
| LNP (similar to DTP) | ||||
| VCMP (similar to VTP) | ||||
Huawei S5731-S48S4X Switch Product Features
- S5731 S supports the MPLS function, and can be used as access devices of high quality enterprise leased line.
- S5731 S allows u sers in different VPNs to connect to the same switch and isolates users through multiinstance routing. Users in multiple VPNs connect to a provider edge (PE) device through the same physical port on the switch, which reduces the cost on VPN network deploy ment.
- S5731 S supports Smart Link. One CloudEngine S5731 S switch can connect to multiple aggregation switches through multiple links, implementing backup of uplinks and significantly improving reliability of access devices.
- S5731 S supports Ethernet OAM (IEEE 802.3ah/802.1ag) to detect li nk faults quickly. Mature IPv6 Technologies
- S5731 S uses the mature, stable VRP platform and supports IPv4/IPv6 dual stack, IPv6 RIPng, and IPv6 over IPv4 tunnels (including manual, 6 to 4, and ISATAP tunnels). With these IPv6 features, the CloudEngine S5731 S can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4 to IPv6 transition.
Huawei S5731-S48S4X Switch and More S5731-S Models
S5731-S24T4X 24×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports 1+1 power backup
S5731-S24T4X-A 24×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports AC power supply
S5731-S24T4X-D 24×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports DC power supply
S5731-S24P4X 24×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports 1+1 power backup PoE+
S5731-S32ST4X 24×1/2.5GE SFP ports, 8×10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports 1+1 power backup
S5731-S32ST4X-A 24×1/2.5GE SFP ports, 8×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports AC power supply
S5731-S32ST4X-D 24×1/2.5GE SFP ports, 8×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports DC power supply
S5731-S48T4X 48×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports 1+1 power backup
S5731-S48T4X-A 48×10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports AC power supply
S5731-S48P4X 48 x 10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports 1+1 power backup PoE+
S5731-S48S4X 44×1/2.5GE SFP, 4xGE SFP, 4x10GE SFP+ ports 1+1 power backup
S5731-S48S4X-A 44×1/2.5GE SFP, 4xGE SFP, 4x10GE SFP+ ports AC power supply
Huawei S5731-S48S4X Switch Product Applications
