Description

Huawei S5730-48C-PWR-SI-AC Switch is a Standard Gigabit Ethernet Switch with 24*10/100/1000 Ethernet ports, 8 10GE SFP+ ports PoE+ and One 500 W AC power supply equipped by default

Huawei S5730-48C-PWR-SI-AC Switch Product Overview

The switch provides flexible all-gigabit access and cost-effective fixed GE/10GE ports as well as 40GE uplink ports. At the same time, S5730-SI builds on next-generation high performing hardware and the Huawei Versatile Routing Platform (VRP). Huawei S5730-48C-PWR-SI-AC Switch also supports simplified operations and maintenance (O&M), intelligent stack (iStack), and flexible Ethernet networking. In addition, the product offers enhanced Layer 3 features and mature IPv6 features, and supports zero-touch deployment, replacement of faulty devices without additional configuration, USB-based deployment, batch configuration, and batch remote upgrade. The capabilities facilitate device deployment, upgrade, service provisioning, and other management and maintenance operations, and also greatly reduce O&M costs. The S5730-SI can be managed using SNMP v1/v2c/v3, CLI, web-based network management system, or SSH v2. 0. Additionally, it supports RMON, multiple log hosts, port traffic statistics collection, and network quality analysis, which facilitate network optimization and reconstruction.

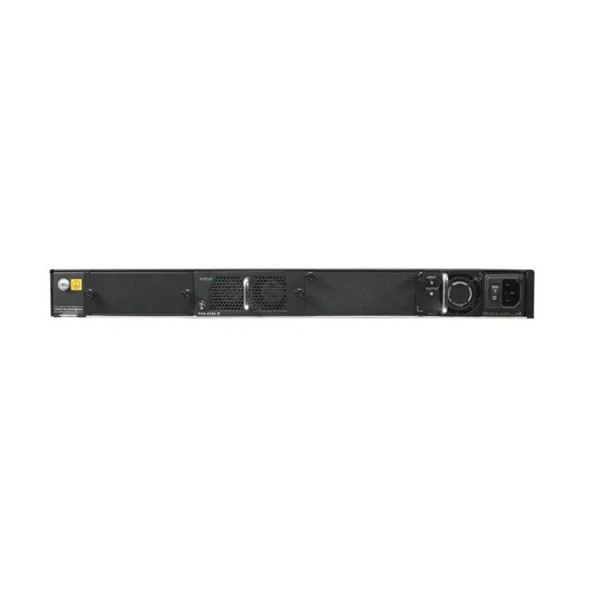

Huawei S5730-48C-PWR-SI-AC Switch Product Pictures

Huawei S5730-48C-PWR-SI-AC S5730-SI price and specs ycictHuawei S5730-48C-SI-AC specs S5730 series price and specs ycict

Huawei S5735S-S24T4S-A ycictHuawei S5700S price and specs ycict

Huawei S5730-48C-PWR-SI-AC Switch Product Specifications

Product model S5730-48C-PWR-SI-AC
Switching Capacity 680 Gbit/s
Forwarding Performance 240 Mpps
Fixed Ports 24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+
Extended Slots One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
IP Routing Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
MAC Address Table 32K
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features 4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping

Huawei S5730-48C-PWR-SI-AC Switch Product Features

  • Supports Smart Link. One S5730-SI switch can connect to multiple aggregation switches through multiple links, implementing backup of uplinks and significantly improving reliability of access devices.
  • Supports Ethernet OAM (IEEE 802. 3ah/802. 1ag) to detect link faults quickly.
  • S5730-SI is equipped with two removable power supplies that can work in 1+1 redundancy backup mode. Mixed installation of AC and DC power supplies is supported, allowing for flexible configuration of AC and DC power supplies according to service requirements.
  • Support Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable and easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G. 8032. It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.

Huawei S5730-48C-PWR-SI-AC Switch and More S5730-SI Models

S5730-48C-SI-AC
S5730-48C-PWR-SI-AC
S5730-68C-SI-AC
S5730-68C-PWR-SI-AC
S5730-68C-PWR-SI

Huawei S5730-48C-PWR-SI-AC Switch Product Applications

Huawei S5730-48C-PWR-SI-AC Switch price and specs ycict
