Description
Huawei S1720-52GWR-PWR-4X-E Switch is a next-generation energy-saving Ethernet access switch with Downlink: 48 Ethernet 10/100/1,000 ports, Uplink: 4 10 Gig SFP+, PoE+ and AC power supply
Huawei S1720-52GWR-PWR-4X-E Switch Product Overview
The switch provides forwarding performance: 132 Mpps and switching Capacity: 336 Gbit/s. It is designed for small and medium-sized enterprises, Internet cafés, hotels, and schools.
S1700 series switches are easy to install and maintain and come with diverse service features, helping customers build secure, reliable, high-performance networks. Moreover, S1720 series web-managed and fully-managed switches support enhanced Media Delivery Index (eMDI). The S1720 functions as a monitoring node to periodically collect and report eMDI fault data to eSight, and then eSight quickly locates video service quality faults based on monitoring results of multiple nodes.

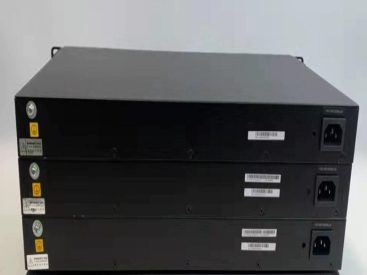

Huawei S1720-52GWR-PWR-4X-E Switch Product Pictures
Huawei S1720-52GWR-PWR-4X-E Switch Product Specifications
| Product Model | S1720-10GW-2P-E S1720-10GW-PWR-2P-E |
S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
S1720X-16XWR-E S1720X-32XWR-E |
| Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
||
| Switching Capacity | 68 Gbit/s | S1720-28GWR-P/TP series: 68 Gbit/s S1720-28GWR-X series: 168 Gbit/s S1720-52GWR-P series: 336 Gbit/s S1720-52GWR-X: 336 Gbit/s |
680 Gbit/s |
| Forwarding Performance | 15 Mpps | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps |
S1720X-16XWR-E: 240 Mpps S1720X-32XWR-E: 252 Mpps |
| Fixed Ports | Downlink: 8 x 10/100/1,000 Base-T electrical ports Uplink: 2 x 1,000 Base-X optical ports |
S1720-28GWR-P series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports S1720-52GWR-P series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
S1720X-32XWR-E: 32 x 10G Base-X optical ports Note: These ports can be used for both upstream and downstream transmission. |
| VLAN Features | 4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
||
| IP Routing | IPv4 and IPv6 static routing RIP, RIPng, and OSPF (S1720-E series) |
||
| Device Maintenance | Remote Network Monitoring (RMON) “System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) “ |
||
Huawei S1720-52GWR-PWR-4X-E Switch Product Features
- S1700 is easy to manage and maintain, equipped with a one-key operation button on the front panel.
- Web-managed S1700 models come with a web network management system, making it easy to configure switches.
- Fully-managed S1700 models allow for the use of an Simple Network Management Protocol (SNMP)-based Network Management System (NMS) for centralized configuration and management.
- Web-managed S1720 models come with a web network management system, making it easy to configure switches.
- Fully-managed S1720 models can support Command Line Interface (CLI) configuration.
- S1720 series web-managed and fully-managed switches support enhanced Media Delivery Index (eMDI). The S1720 functions as a monitoring node to periodically collect and report eMDI fault data to eSight, and then eSight quickly locates video service quality faults based on monitoring results of multiple nodes.
Huawei S1720-52GWR-PWR-4X-E Switch Product and More Models
S1720-10GW-2P-E (8 Ethernet 10/100/1,000 ports, 2 Gig SFP, with license, AC 110/220V)
S1720-10GW-PWR-2P-E (8 Ethernet 10/100/1,000 PoE+ ports, 2 Gig SFP, with license, AC 110/220V)
S1720-28GWR-4P-E (24 Ethernet 10/100/1,000 ports, 4 Gig SFP, with license, AC 110/220V)
S1720-28GWR-4X-E (24 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, with license, AC 110/220V)
S1720-28GWR-PWR-4P-E (24 Ethernet 10/100/1,000 ports, 4 Gig SFP, PoE+, with license, 370W POE AC 110/220V)
S1720-28GWR-PWR-4X-E (24 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, PoE+, with license, 370W POE AC 110/220V)
S1720-52GWR-4P-E (48 Ethernet 10/100/1,000 ports, 4 Gig SFP, with license, AC 110/220V)
S1720-52GWR-4X-E (48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, with license, AC 110/220V)
S1720-52GWR-PWR-4P-E (48 Ethernet 10/100/1,000 ports, 4 Gig SFP, PoE+, with license, 370W POE AC 110/220V)
S1720-52GWR-PWR-4X-E (48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, PoE+,with license,370W POE AC 110/220V)
S1720-28GWR-PWR-4TP-E (24 Ethernet 10/100/1,000, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, 8 ports PoE+, with license, 124W POE AC, front access)
S1720X-16XWR-E (16 10Gig SFP+, with license, AC110/220V)
S1720X-32XWR-E (32 10Gig SFP+, with license, AC110/220V)
Huawei S1720-52GWR-PWR-4X-E Switch Product Applications
