Description
Huawei S1720-28GWR-PWR-4P-E Switch is designed for small and medium-sized enterprises, Internet cafés, hotels, and schools with Downlink: 24 Ethernet 10/100/1,000 ports, Uplink: 4 Gig SFP ports, PoE+and AC power supply
Huawei S1720-28GWR-PWR-4P-E Switch Product Overview
It is a next-generation energy-saving Ethernet access switch offering Forwarding performance: 42 Mpps and Switching Capacity: 68 Gbit/s. Huawei S1700 series switches are ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and others. They are easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks.

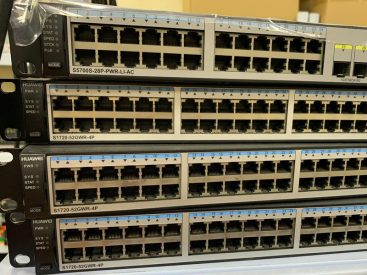

Huawei S1720-28GWR-PWR-4P-E Switch Product Pictures
Huawei S1720-28GWR-PWR-4P-E Switch Specifications
| Product Model | S1720-10GW-2P-E S1720-10GW-PWR-2P-E |
S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
S1720X-16XWR-E S1720X-32XWR-E |
| Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
||
| Switching Capacity | 68 Gbit/s | S1720-28GWR-P/TP series: 68 Gbit/s S1720-28GWR-X series: 168 Gbit/s S1720-52GWR-P series: 336 Gbit/s S1720-52GWR-X: 336 Gbit/s |
680 Gbit/s |
| Forwarding Performance | 15 Mpps | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps |
S1720X-16XWR-E: 240 Mpps S1720X-32XWR-E: 252 Mpps |
| Fixed Ports | Downlink: 8 x 10/100/1,000 Base-T electrical ports Uplink: 2 x 1,000 Base-X optical ports |
S1720-28GWR-P series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports S1720-52GWR-P series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
S1720X-32XWR-E: 32 x 10G Base-X optical ports Note: These ports can be used for both upstream and downstream transmission. |
| VLAN Features | 4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
||
| IP Routing | IPv4 and IPv6 static routing RIP, RIPng, and OSPF (S1720-E series) Remote Network Monitoring (RMON) |
||
| Device | Remote Network Monitoring (RMON) | ||
| Maintenance | System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
||
Huawei S1720-28GWR-PWR-4P-E Switch Product Features
- S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports
- packet filtering based on MAC addresses or ports in ord er to defend against hackers and virus attacks.
- S1700 provides LACP, STP, RSTP and MSTP functions to implement link aggregation and backup. Fully managed
- S1720 switches support up to 64 MSTP instances for fl exible networking.
- When a PoE switch is rebooted after the software version is upgraded, the power supply to PDs is not interrupted. This capability ensures that PDs are not powered off during the switch reboot.
- S1700 is easy to manage and maintain, being equipped wit h a one key operation button on the front panel.
Huawei S1720-28GWR-PWR-4P-E Switch and More Models
S1700-16G (16 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 ports, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and 2 Gig SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 ports, 2 Gig SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, 8 ports PoE+, 124W PoE AC)
Huawei S1720-28GWR-PWR-4P-E Switch Product Applications
