Description
Huawei S1720-10GW-PWR-2P-E Switch is a next-generation energy-saving Ethernet access switch with Downlink: 8 Ethernet 10/100/1000 ports, Uplink: 2 Gig SFP ports, PoE+ and AC power supply
Huawei S1720-10GW-PWR-2P-E Switch Product Overview
The switch is designed for small- and medium-sized enterprises, Internet cafes, hotels, and schools. It is very easy to install and maintain and come with diverse service features, helping customers build secure, reliable, high performance networks.
Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.
- Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.
- Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).
- Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

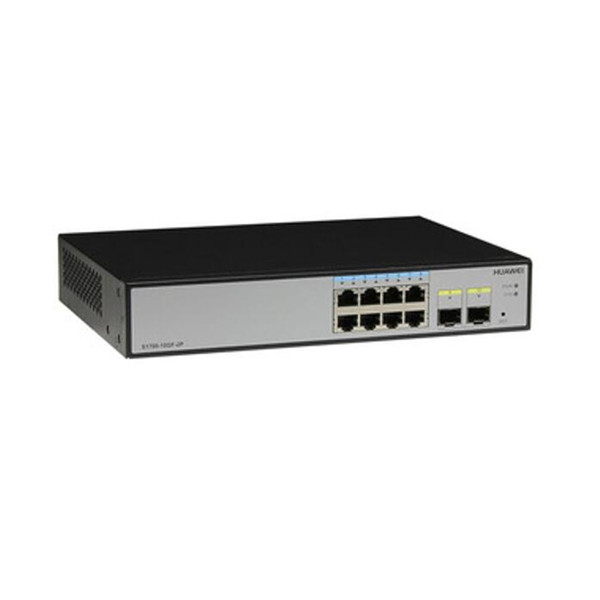

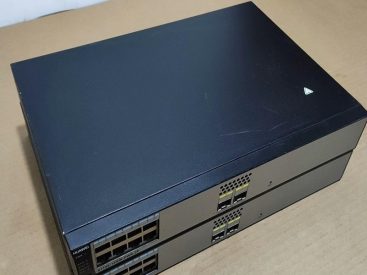

Huawei S1720-10GW-PWR-2P-E Switch Product Pictures
Huawei S1720-10GW-PWR-2P-E Switch Product Specifications
Product Model | S1720-10GW-2P-E S1720-10GW-PWR-2P-E |
S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
S1720X-16XWR-E S1720X-32XWR-E |
Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
||
Switching Capacity | 68 Gbit/s | S1720-28GWR-P/TP series: 68 Gbit/s S1720-28GWR-X series: 168 Gbit/s S1720-52GWR-P series: 336 Gbit/s S1720-52GWR-X: 336 Gbit/s |
680 Gbit/s |
Forwarding Performance | 15 Mpps | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps |
S1720X-16XWR-E: 240 Mpps S1720X-32XWR-E: 252 Mpps |
Fixed Ports | Downlink: 8 x 10/100/1,000 Base-T electrical ports Uplink: 2 x 1,000 Base-X optical ports |
S1720-28GWR-P series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports S1720-52GWR-P series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
S1720X-32XWR-E: 32 x 10G Base-X optical ports Note: These ports can be used for both upstream and downstream transmission. |
VLAN Features | 4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
||
IP Routing | IPv4 and IPv6 static routing RIP, RIPng, and OSPF (S1720-E series) |
||
Device | Remote Network Monitoring (RMON) | ||
Maintenance | System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
Huawei S1720-10GW-PWR-2P-E Switch Product Features
- S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports packet filtering based on MAC addresses or ports in ord er to defend against hackers and virus attacks.
- S1700 provides LACP, STP, RSTP and MSTP functions to implement link aggregation and backup. Fully managed
- S1720 switches support up to 64 MSTP instances for fl exible networking.
- S1700/S1720 M AC address table supports up to 8K/16K of MAC addresses, making it easy to expand networks and deploy new services. The S1700 support layer 3 static routing forwarding which include IPv4 and IPv6 protocols.
