Description
Huawei S12700E-8 Switch Features 28800 Mpps Forwarding Performance 38.4 Tbps Switching Capacity 2 MPU slots 4 SFU slots 8 Service card slots 4 Fan slots
Huawei S12700E-8 Switch Product Overview
Huawei S12700E-8 Switch is flagship core switches in Huawei’s CloudCampus portfolio.Under building an intelligent campus core, these feature-rich switches can assist customers head towards a service experience-centric campus network that is intelligent and simplified. The switch stands out with massive capacity expansion and flexible service upgrade capabilities to protect customer investments and facilitate their long-term network evolution. Built on Huawei’s high-performance full-programmable chipsets, S12700E delivers 4.8 Tbps of single-slot bandwidth, which can easily scale to 7.2 Tbps simply by upgrading SFUs in the future. S12700E also offers a broad range of line cards, including 100GE, 40GE, 25GE, 10GE, and GE line cards, and provides up to 288 x 100GE ports, the unmatched port density in the industry. These give customers flexible choices to meet their capacity expansion and upgrade needs.
By integrating large-capacity WLAN AC capabilities, a single CloudEngine S12700E can manage up to 10,240 WLAN APs. This capability, combined with free mobility functionality, achieves fully converged wired and wireless networks and policies, greatly simplifying network management with users and services at the core.

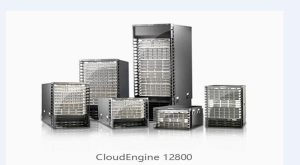

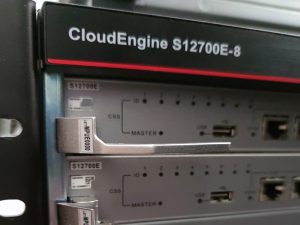

Huawei S12700E-8 Switch Product Pictures
Huawei S12700E-8 Switch Product Specifications
| Product Model | CloudEngine S12700E-4 | CloudEngine S12700E-8 | CloudEngine S12700E-12 |
| Forwarding Performance | 14400 Mpps | 28800 Mpps | 43200 Mpps |
| Switching Capacity | 19.2 Tbps | 38.4 Tbps | 57.6 Tbps |
| MPU slots | 2 | 2 | 2 |
| SFU slots | 2 | 4 | 4 |
| Service card slots | 4 | 8 | 12 |
| Fan slots | 2 | 4 | 5 |
| Wireless Services | Managing up to 10K APs | ||
| AP access control, AP domain management, and AP configuration template management | |||
| Radio channel management, unified static configuration, and dynamic centralized management | |||
| WLAN basic services, QoS, security, and user management | |||
| CAPWAP, tag/terminal location, and spectrum analysis | |||
| iPCA | Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio | ||
| Collection of statistics on the number of lost packets and packet loss ratio at network and device levels | |||
| Super Virtual Fabric (SVF) | Works as the parent node to vertically virtualize downstream switches and APs as one device for simpler management | ||
| A two-layer client architecture supported | |||
| Third-party devices allowed between SVF parent and clients | |||
| VXLAN | VXLAN L2 and L3 gateways | ||
| Centralized and distributed gateways | |||
| BGP-EVPN | |||
| Configured through the NETCONF protocol | |||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | ||
| LNP (similar to DTP) | |||
| VCMP (similar to VTP) | |||
Huawei CloudEngine S12700E-8 Switch Features
Full programmable architecture
The S12700E adopts Huawei’s self-developed Solar series of fully programmable architecture chips. When protocol evolution and technology update require forwarding process changes, customers do not need to replace new hardware, and can be supported by software updates. The service is fast and flexible, and protects customer investment. Traditional ASICs The chip adopts a fixed forwarding architecture and forwarding process. The new service cannot be deployed quickly and needs to wait for 1 to 3 years of hardware support.
Wired and wireless convergence
The S12700E has built-in AC, no need to purchase additional AC hardware. The whole machine can manage up to 10K APs. The forwarding performance of the whole machine can reach 4T-bit, which solves the bottleneck of external AC processing performance and calmly faces the high-speed wireless era.
System openness
Support Netconf/YANG, users can automatically configure through Netconf/YANG. OPS (Open Programmability System) is an open programmable system based on the Python language. IT administrators can use the Python script to program the operation and maintenance functions of the switch, quickly realize functional innovation and realize intelligent operation and maintenance.
Huawei S12700E-8 Switch Product Ordering Info
| LE2BN66ED000 | N66E DC assembly cabinet (eight 60A outputs, maximum 2200W, 600 × 600 × 2200 mm) |
| LE2BN66EA000 | N66E AC assembly cabinet (four 16 A outputs, a maximum of 2500W, 600 × 600 × 2200 mm) |
| ET1BS12704E0 | S12700E-4 assembly chassis |
| ET1BS12708E0 | S12700E-8 assembly chassis |
| ET1BS12712E1 | S12700E-12 assembly chassis |
| FAN-770A-B | Fan box (-5degC–55degC, 48V, 400W, 2, indoors, VA) |
| LST7MPUE0000 | S12700E Main Processing Unit E |
| LST7MPUE0001 | S12700E Main Processing Unit E |
| EH1D200CMU00 | Centralized Monitoring Unit |
| LST7SFUEX100 | S12700E Switch Fabric Unit E(X1) |
| LST7SFUHX100 | S12700E Switch Fabric Unit H(X1) |
| LST7SFUMX100 | S12700E Switch Fabric Unit M(X1) |
| LST7C06HX6E0 | 6-port 100GE QSFP28 interface card (X6E,QSFP28) |
| LST7C06HX6S0 | 6-port 100GE QSFP28 interface card (X6S,QSFP28) |
| LST7C24HX6E0 | 24-port 100GE QSFP28 interface card (X6E,QSFP28) |
| LST7C02BX6E0 | 2-port 100GE QSFP28 interface and 4-port 40GE QSFP28 interface card (X6E,QSFP28) |
| LST7Y40SX6H0 | 40-port 25GE SFP28 interface card (X6H,SFP28) |
| LST7X48SX6E0 | 48-port 10GE SFP+ interface card (X6E,SFP+) |
| LST7X48SX6S0 | 48-port 10GE SFP+ interface card (X6S,SFP+) |
| LST7X24BX6E0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6E,SFP+) |
| LST7X24BX6S0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6S,SFP+) |
| LST7G48SX6E0 | 48-port GE SFP interface card (X6E,SFP) |
| LST7G48SX6S0 | 48-port GE SFP interface card (X6S,SFP) |
| LST7G48TX5E1 | 48-port 10/100/1000BASE-T interface card (X5E,RJ45) |
| LST7G48TX5S1 | 48-port 10/100/1000BASE-T Interface Card (X5S,RJ45) |
| W2PSD2200 | 2200W DC power module |
| PAC3KS54-CE | 3000W AC power module (black) |
| PAC3KS54-NE | 3000W AC power module (black) |
Huawei S12700E-8 Switch Product Applications
