Huawei ME60-X16 Router implements user authentication, call control, policy control, QoS guarantee, and security guarantee over various services by associating the service layer with the bearer layer.
The ME60 provides five models: ME60-8, ME60-16, ME60-X3, and ME60-X8, and ME60-X16
| Model | Switching Capacity | Forwarding Performance | Number of Slots | Dimensions (H x W x D) mm | Maximum Power Consumption | Full Configuration Weight | |
| ME60-X16 | 12.58 Tbit/s | 5,760 Mpps | 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | 1,420 x 442 x 650 (32U) | 4,610W (BSUF-100) | 6,210W (BSUF-240) | 279 kg |
Huawei ME60-X16 Router Product Overview
Huawei ME60-X16 Router Multiservice Control Gateway ( referred to as the ME60), as an MSCG is developed to meet the requirement for transformation, ensuring security, reliability, and QoS for various telecommunication services.
Based on Huawei ME60-X16 Router and its solutions, ME60 integrates user management, security control, and service control, which eliminates the defects of traditional routers and firewalls that cannot satisfy carrier-class requirements and provides user-level management and control. This greatly reduces operating expenditure and provides a platform for the operation of telecommunication services.

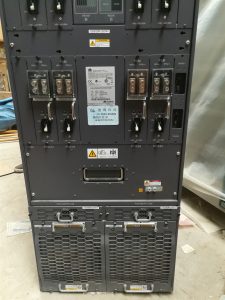

Huawei ME60-X16 Router Product Pictures
Huawei ME60-X16 Router Product Features
- Large capacity and high-density user management
MSCG supports multiple access methods such as Ethernet, xDSL, HFC, and multiple authentication methods such as PPPoE, DHCP +, 802.1X, and Binding. It also supports multiple service differentiation methods based on access terminal types and dynamic service policies.
- Carrier-grade reliability
ME60 relies on unique hot backup technology, supports hot backup between PPPoE and DHCP boards and devices, and supports multicast hot backup and L2TP hot backup. During the switchover, users do not need to dial again and the service is never interrupted.
- Flexible service provision
Support the self-service selection function of user services, dynamically adjust the bandwidth, priority, and billing methods of online services according to user business policies to achieve flexible provision of various broadband value-added services; support the policy execution function of the RACS architecture in IMS NGN, which can be based on The 5-tuple information of the service flow provides real-time QoS guarantee for VOIP services, IP multimedia session services, and VoD services.
- Comprehensive H-QoS scheduling
MSCG follows the QoS scheduling model in the DSL Forum TR-059 and supports hierarchical QoS scheduling at Session, VC, VC Group, VP and port levels.
Huawei ME60-X16 Router Product Specifications
| Specifications | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 | ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5,760 Mpps | 5,760 Mpps | 2,880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | 12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs | 22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs | 11 slots, including 8 LPUs, 2 SRUs, and 1 SFU | 5 slots, including 3 LPUs and 2 SRUs |
| Dimensions | 1,778 x 442 x 650 (40U) | 934 x 442 x 650 (21U) | 1,420 x 442 x 650 (32U) | 620 x 442 x 650 (14U) | 175 x 442 x 650 (DC 4U); |
| (H x W x D) mm | 220 x 442 x 650 (AC 5U) | ||||
| Maximum Power Consumption | 7,220W (BSUF-240) | 4,110W (BSUF-240) | 4,610W (BSUF-100) | 2,340W (BSUF-100) | 920W (BSUF-100) |
| 9,040W (BSUF-480) | 4,770W (BSUF-480) | 6,210W (BSUF-240) | 3,220W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) |
Huawei ME60-X16 Router Product Ordering Info
| Type | Description |
| ME60-X16 basic configuration | ME60-X16 integrated chassis components |
| ME60-X16 main processing board B4 | |
| 200Gbps Switching Network Unit B (SFUI-200-B) | |
| 100Gbps Switching Network Unit E (SFUI-100-E) | |
| ME60-X16 switching network unit B | |
| ME60-X8 basic configuration | ME60-X8 integrated chassis components (including four DC power supplies) |
| Routing Switch Board A5 | |
| Routing Switch Board A7 | |
| 100Gbps Switching Network Unit D (SFUI-100-D) | |
| 200Gbps Switching Network Unit C (SFUI-200-C) | |
| ME60-X3 basic configuration | Integrated DC chassis assembly (ME60-X3) |
| ME60-X3 integrated AC chassis components (including dual AC power) | |
| Main processing board D2 (including 2G memory and 2G USB) | |
| Main processing board D3 (including 4G memory and 2G USB) | |
| DC 48V power supply access module | |
| Primary power supply–33degC-55degC-90V-280V-53.5V / 30A- rated input 220V full load output, low load half load output | |
| 10G series boards | Flexible card broadband business processing board (BSUF-10, 4 subslots) |
| Flexible card multi-service processing board (MSUF-10, 4 subslots) | |
| 2-port OC-12c / STM-4c ATM-SFP Flexible Card (BP10) | |
| 4-port OC-3c / STM-1c ATM-SFP Flexible Card (BP10) | |
| 4-port Clear Channel E3 / Channelized T3-SMB Flexible Card (BP10) | |
| 20G series Boards | Flexible card broadband service processing board (BSUF-21,2 subslots) |
| 1-port 10GBase LAN / WAN-XFP flexible card (BP20) | |
| 1-port 10GBase LAN / WAN-XFP flexible card E (BP20-E) | |
| 12-port 100 / 1000Base-X-SFP flexible card (BP20) | |
| 10-Port 1000Base-X-SFP Flexible Card E (BP20-E) | |
| 40G series Boards | Flexible card broadband business processing board (BSUF-40, 2 subslots) |
| 2-port 10GBase LAN / WAN-XFP flexible card (BP40) | |
| 2-port 10GBase LAN / WAN-XFP flexible card E (BP40-E) | |
| 20-port 100 / 1000Base-X-SFP flexible card (BP40) | |
| 20-Port 1000Base-X-SFP Flexible Card E (BP40-E) | |
| 50G series Boards | 5-port 10GBase LAN / WAN-SFP + integrated broadband business processing board (BSUI-51) |
| 5-port 10GBase LAN / WAN-SFP + integrated multi-service processing board (MSUI-51) | |
| 5-port 10GBase LAN / WAN-SFP + integrated broadband service processing board E (BSUI-51-E) | |
| 4-port 10GBase LAN / WAN-SFP ++ 12-port 100 / 1000Base-X-SFP integrated broadband service processing board (BSUI-51) | |
| 2-port 10GBase LAN / WAN-SFP ++ 24-port 100 / 1000Base-X-SFP integrated broadband service processing board (BSUI-51) | |
| 2-port 10GBase LAN / WAN-SFP ++ 24-port 100 / 1000Base-X-SFP integrated broadband service processing board E (BSUI-51-E) | |
| 48-port 100 / 1000Base-X-SFP integrated broadband service processing board (BSUI-51) | |
| Flexible card broadband service processing board (BSUF-51,2 subslots) | |
| Flexible card multi-service processing board (MSUF-51,2 subslots) | |
| 5-port 10GBase LAN / WAN-SFP + flexible card (BP51, occupying two subslots) | |
| 5-port 10GBase LAN / WAN-SFP + flexible card E (BP51-E, occupying two subslots) | |
| 2-port 10GBase LAN / WAN-SFP + flexible card (BP51) | |
| 2-port 10GBase LAN / WAN-SFP + Flexible Card E (BP51-E) | |
| 24-port 100 / 1000Base-X-SFP flexible card (BP51) | |
| 24-Port 1000Base-X-SFP Flexible Card E (BP51-E) | |
| 100G series Boards | 10-port 10GBase WAN / LAN-SFP + integrated broadband service processing board (BSUI-100) |
| 10-port 10GBase LAN / WAN-SFP + integrated broadband business processing board (MSUI-100) | |
| 10-port 10GBase LAN / WAN-SFP + integrated broadband service processing board E (BSUI-100-E) | |
| Flexible card broadband business processing board (BSUF-100, 2 subslots) | |
| 1-port 100GBase-CFP flexible card (BP100) | |
| Flexible card multi-service processing board (MSUF-100, 2 subslots) | |
| 6-port 10GBase LAN / WAN-SFP + flexible card (BP100) | |
| 5-port 10GBase LAN / WAN-SFP + flexible card (BP100) | |
| 5-port 10GBase LAN / WAN-SFP + Flexible Card E (BP100-E) | |
| 24-port 100 / 1000Base-X-SFP flexible card (BP51) | |
| 24-Port 1000Base-X-SFP Flexible Card E (BP51-E) | |
| 240G series Boards | Flexible card broadband business processing board (BSUF-240, 2 subslots) |
| Flexible card multi-service processing board (MSUF-240, 2 sub-slots) | |
| 10-port 10GBase LAN / WAN-SFP + flexible card (BP240) | |
| 10-port 10GBase LAN / WAN-SFP + Flexible Card E (BP240-E) | |
| 12-port 10GBase LAN / WAN-SFP + flexible card (BP240) | |
| 1-port 100GBase-CFP flexible card (BP240) | |
| Service Processing Board | Universal Service Board (VSUI-20-A) |
| Universal Service Board (VSUF-40) | |
| General Service Single Board (VSUF-80) | |
| Universal Business Single Board Daughter Card (SP80) | |
| General Service Board (VSUF-160) | |
| Universal Business Single Board Daughter Card (SP160) | |
| Software | ME60 basic software (4K users), V600R008 |
| MultiserviceEngine60 Rn to R (n + 1) software version fee | |
| ME60 DSG Function License | |
| ME60 LNS & LTS Function License | |
| ME60 cross-machine high reliability function license | |
| IP Performance Measurement License (IP FPM) | |
| ME60 Ethernet Performance Detection License | |
| ME60 concurrent user license (1k users) | |
| ME60 IPSec Board Function License VSUI-20-A | |
| ME60 2M NAT Session License | |
| ME60 VSU Series Board DS-Lite Function License | |
| ME60 VSU Series Board NAT64 Function License | |
| ME60 VSU Series Single Board PCP Function License | |
| ME60 VSU series single board 20G license |
