SKU: Huawei CE8868-4C-EI Swith Category: Tags: , ,

Description

Huawei CE8868-4C-EI Swith is 100G Ethernet switch with with 4 Subcard Slots, 2 AC Power Modules, 2 FAN Boxes, Port-side Exhaust designed for data centers and high-end campus networks

Huawei CE8868-4C-EI Swith Product Overview

The switch provides high-performance, high-density 100GE/40GE/25GE/10GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 series switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed.  In addition, CloudEngine 8800 series switches can function as core or aggregation switches on DCNs to help enterprises and carriers to build a DCN platform for the cloud computing era. They can also be used as aggregation or core switches on campus networks.

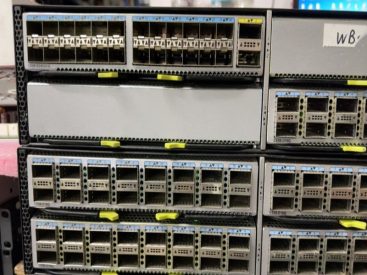

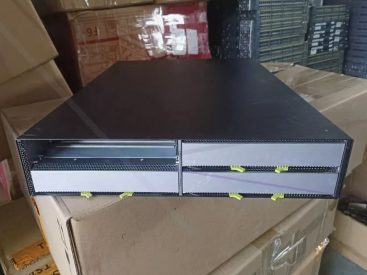

Huawei CE8868-4C-EI Swith Product Pictures

Huawei CE8868-4C-EI Swith power slot infoHuawei CloudEngine 8800 Switch Datasheet good price

Huawei CE8868-4C-EI Switches Support Guide, Manuals ycictHuawei CloudEngine 8800 Switch huawei CE switch

Huawei CE8868-4C-EI Swith Product Specifications

Model CE8868-4C-EI CE8850-32CQ-EI CE8850-64CQ-EI
Downlink Port 4 slots, flexibly combined with different cards, can achieve up to 32 x 100 GE QSFP28 or 64 x 40 GE QSFP+or 128 x25 GE SFP28 or 128 x 10 GE SFP+ 32 x 100 GE QSFP28 + 2 x 10 GE SFP+ 64 x 100 GE QSFP28
UPlink Port 6.4Tbps/57.6Tbps 6.44Tbps/103.04Tbps 12.8Tbps/204.8Tbps
Exchange capacity 2,030Mpps/3,200Mpps 4,482Mpps
Cache 32MB 22MB 42MB
Reliability Differential segment LACP Differential segment
Hardware BFD (minimum contract interval 3.3ms) BFD for BGP/IS-IS/OSPF/Static route/VXLAN Hardware BFD (minimum contract interval 3.3ms)
LACP LACP
O&M Telemetry Telemetry Telemetry
IOAM(INT) Netstream IOAM(INT)
Netstream sFlow Netstream
sFlow ERSPAN sFlow
ERSPAN enhance ERSPAN enhance
Data Center Features VXLAN routing & bridging
BGP-EVPN
M-LAG
PFC、ECN
Consumption 795W 453W 965W
Power specifications AC: 1200W AC&240VDC AC:600W AC: 1200W AC&240VDC
HDC: 1200W DC:600W HDC: 1200W
DC: 1200W DC: 1200W
Reliability AC: 90V~290V AC: 90V~290V AC: 90V~290V
HDC: DC: -38.4V~-72V HDC:
240V(188V~290V) 240V(188V~290V)
380V(188V~400V) 380V(188V~400V)
DC: -38.4V~-72V DC: -38.4V~-72V

Huawei CE8868-4C-EI Swith Product Features

  • CloudEngine 8800 series switches support Multichassis Link Aggregation Group (M-LAG) to implement link aggregation among multiple devices, improving link reliability from the card level to the device level.
  • Switches in an M-LAG system can be upgraded independently. During the upgrade, other switches in the system take over traffic forwarding to prevent service interruption.
  • Leveraging the comprehensive inter-device link aggregation technologies, the CloudEngine 8800 series switches evolve device coupling from control-plane-based stacking to M-LAG and then finally to coupling-free M-LAG Lite. These serve to implement active-active server access and highly reliable switch upgrade
  • CloudEngine 8800 series switches use the next-generation VRP8 operating system, in which an Open Programmability System (OPS) module is embedded to provide control-plane programmability.
  • The OPS provides abundant open APIs for integration with mainstream cloud platforms (including commercial and open-source cloud platforms) and third-party controllers, enabling flexible customization and automatic management of network services.
  • CloudEngine 8800 series switches support ZTP, which allows the switches to automatically obtain and load version files from a USB flash drive or file server. This frees network engineers from on-site configuration and deployment, reduces labor costs, and improves deployment efficiency

Huawei CE8868-4C-EI Swith and More Related Models

02350SUK CE8860-4C-EI CE8860-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box and Power Module)
02350RMX CE8860-EI-B-B0C CE8860EI Bundle (CE8860-4C-EI Mainframe, 1*CE88-D24S2CQ Interface Card, 1*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350RMW CE8860-EI-F-B0C CE8860EI Bundle (CE8860-4C-EI Mainframe, 1*CE88-D24S2CQ Interface Card, 1*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02350NBR CE8860-EI-B-B00 CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24T2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350NBS CE8860-EI-B-B0A CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24S2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350NBP CE8860-EI-B-B0B CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350NBM CE8860-EI-F-B00 CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24T2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02350NBL CE8860-EI-F-B0A CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24S2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02350NBJ CE8860-EI-F-B0B CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02351SGW CE8861-4C-EI CE8861-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box and Power Module)
02351SHA CE8861-4C-EI-F CE8861-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02351SGY CE8861-4C-EI-B CE8861-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02352CHJ CE8868-4C-EI CE8868-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box and Power Module)
02352CHN CE8868-4C-EI-F CE8868-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02352CHM CE8868-4C-EI-B CE8868-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02350SQW CE8850-32CQ-EI CE8850-32CQ-EI Switch (32-Port 10GE QSFP28, 2-Port 10GE QSFP+, Without Fan and Power Module)
02350SBC CE8850-EI-F-B0A CE8850-32CQ-EI Switch (32-Port 100GE QSFP28, 2-Port 10GE SFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02350SBD CE8850-EI-B-B0A CE8850-32CQ-EI Switch (32-Port 100GE QSFP28, 2-Port 10GE SFP+, 2*AC Power Module, 2*FAN Box, Port-side Intake)
02351RFF CE8850-64CQ-EI CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, 2-Port 10GE SFP+, Without Fan and Power Modules)
02351RFJ CE8850-EI-F-B0B CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, 2-Port 10GE SFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02351RFH CE8850-EI-B-B0B CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, 2-Port 10GE SFP+, 2*AC Power Module, 2*FAN Box, Port-side Intake)

Huawei CE8868-4C-EI Swith Product Applications

Huawei CE8800 topology Huawei CE8868-4C-EI Swith
