Description
HS8546V2 FTTH features 1POTS+4GE+2USB+2.4G&5G Wi-Fi
| Model | Configuration | Dimension | ||||
| LAN | Port | Wifi | PPPOE | Firmware | ||
| HS8546V2 | 4GE | 1pots | Dual-band | yes | English | 285*230*95mm/0.9kgs |
| Remarks | 2 USB, External Antenna, support IEEE802.11ac, Dual-frequency WIFI, WirelessNet-5G | |||||
HS8546V2 FTTH Product Overview
HS8546V2 FTTH is a device with 4 Gigabit Ethernet ports, 1 telephone port, 1 class B + GPON port, 2 USB ports and also equipped with a WPS button and a built-in 8G SD memory card. Huawei HS8546V2 FTTH can transmit a wireless network。 it is possible to simultaneously transmit in two 2.4 and 5G bands. It has been equipped with security functions such as a firewall and filtering based on MAC / UP / URL addresses.

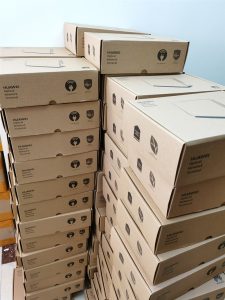

HS8546V2 FTTH Product Pictures
HS8546V2 FTTH Product Specifications
| Model | HS8546V2 |
| PON Type | GPON |
| Optical interface | SC/UPC |
| UNI | 1POTS+4GE+2USB+2.4G&5G Wi-Fi |
| WiFi standard | 2.4GHz: 2 x 2 MIMO 802.11b/g/n |
| 5GHz: 2 x 3 MIMO 802.11a/n/ac | |
| Antenna gain | 2dBi |
| Dimensions(Width×Depth×Height) | 265mm x 176mm x 82mm |
| Box Dimensions(Width×Depth×Height) | 290mm x 230mm x 95mm |
| Box Weight(kg) | 0.85kg |
| Power supply | Power supply: 11-14V DC, 1A |
| Input power: 100-240V AC, 50/60HZ | |
| Operating temperature and operating humidity | 0℃ to 40℃ |
| 5% to 95%, non-condensing | |
| Cooling | Passive cooling |
| Maximum number of MAC addresses learned | 1024 |
| L2 forwarding capability | 200 Mbit/s downstream (with any length packets) |
| 200 Mbit/s upstream (with any length packets) | |
| IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
| 1Gbit/s with any length packets in upstream direction | |
| IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
| 1Gbit/s with any length packets in upstream direction | |
| Configuration method | NMS, Web, or TR069 |
| Voice protocol | SIP, H.248 |
| Software version | V300R017C10 |
HS8546V2 FTTH Product Features
HS8546V2 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, The HS8546V2 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Smart interconnection
- Smart Wi-Fi coverage
- SIP/H.248 auto-negotiation
- Any port any service
- Parental control
Smart O&M
- IPTV video quality diagnosis
- Variable-length OMCI messages
- Active/Passive rogue ONT detection and isolation
- Call emulation, and circuit test and loop-line test
- PPPoE/DHCP simulation testing
- Wi-Fi emulation
- One-click diagnosis(Web)
HS8546V2 FTTH and More Models
10G PON ONT :
HN8055Q : XG-PON, SFP+ : 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO •238 mm x 190 mm x 26 mm (Without the base)
HN8245Q : NXG-PON, SFP+ : 2POTS+ 4GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO •238 mm x 190 mm x 26 mm (Without the base)
HN8255Ws : XGS-PON, SFP+ : 2POTS+ 4GE+1*10GE+2USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 4×4 MU-MIMO • 197 mm x 305 mm x 82 mm
Gateway ONT without WiFi
EG8040P : GPON : 4GE (PoE) • 254 mm x 140 mm x 42 mm
EG8240P : GPON : 2POTS + 4GE (PoE) • 254 mm x 140 mm x 42 mm
EG8020P : GPON : 2GE • Faceplate: 125 mm x 86 mm x 30 mm • Base: 68.5 mm x 46.5 mm x 33 mm
Bridge ONT
EG8010H : GPON : 1GE • 83 mm x 69 mm x 28 mm
EG8040H : GPON : 4GE • 176 mm x 138.5 mm x 28 mm
EG8240H : GPON : 2POTS + 4GE • 176 mm x 138.5 mm x 28 mm
EG8242H : GPON : 2POTS + 4GE + 1RF • 220 mm x 160 mm x 32 mm
WiFi ONT
EG8045H : GPON : 4GE+1USB+WiFi • 11n 2×2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)
EG8145V5 : GPON : 1POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 2×2 MIMO • 5GHz: 11ac 2×2 MIMO • 173 mm x 120 mm x 30 mm (Without an external antenna)
EG8245H : GPON : 2POTS+4GE+1USB+WIFI • 11n 2×2 MIMO • 176 mm x 138.5 mm x 28 mm (Without an external antenna)
HG8245Q2 : GPON : 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 176 mm x 265 mm x 82 mm
EG8245Q : GPON : 2POTS+4GE+1USB+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 188 mm x 143 mm x 32 mm (Without an external antenna)
EG8245H5 : GPON : 2POTS+4GE+1USB+WiFi • 11n 2×2 MIMO • 168 mm x 115 mm x 30 mm (Without an external antenna)
EG8247W : GPON : 2POTS+4GE+1USB+1RF+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 4×4 MIMO • 184 mm x 295 mm x 82 mm
EG8247H : GPON : 2POTS+4GE+1USB+1RF+WiFi • 11n 2×2 MIMO • 220 mm x 160 mm x 32 mm (Without an external antenna)
EG8247Q : GPON : 2POTS+4GE+2USB+1RF+2WiFi • 2.4GHz: 11n 3×3 MIMO • 5GHz: 11ac 3×3 MIMO • 219 mm x 159 mm x 32 mm (Without an external antenna)
EG8247H5 : GPON : 2POTS+4GE+1USB+1RF+WiFi • 11n 2×2 MIMO • 199 mm x 135 mm x 30 mm (Without an external antenna)
HS8546V2 FTTH Applications
