Description
HG8310M FTTH is a bridge-type ONT of all-optical access network solution and enables subscribers to get ultra-wideband through GPON technology.
HG8310M FTTH Product Overview
HG8310M FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The home gateway then can be connected to a PC, Mobile Terminal, STB, or Video phone to provide high-speed data, video services. This model supports one GE Ethernet interface and effectively guarantees data and HD video service experience through high-performance forwarding capability and also this provides customers with all-optical access solution and future-oriented service support capabilities.

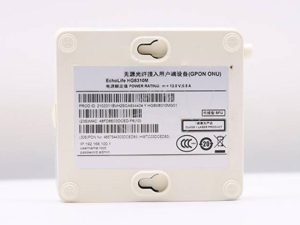

HG8310M FTTH Product Pictures
HG8310M FTTH Product Specifications
| Item | HG8310M |
| User-side port | 1xGE |
| GPON port | Class C+ Module |
| Network-side port | GPON (SC/UPC) |
| Security | MAC Filter |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Dimensions (length x width x height) | 82 mm x 90 mm x 27 mm |
| Weight | About 0.5 kg |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Altitude: 3000 m |
HG8310M FTTH Product Features
- Variable-length OMCI messages
- Active/Passive rogue ONT detection and isolation
- PPPoE/DHCP simulation testing
- Ethernet port rate limitation
- 1p priority
- SP/WRR/SP+WRR
- Broadcast packet rate limitation
- Flow mapping based on the VLAN ID,port ID, or/and 802.1p
- Indicator power saving
- Power consumption reduction of idle components in power-saving state
- COCv4
- MAC address filtering
- OMCI/Web UI
- Dual-system software backup and rollback
- 1ag Ethernet OAM
- Optical link measurement and diagnosis
- Loopback check Multicast
- IGMP v2/v3 snooping
- MLD v1/v2 snooping
HG8310M FTTH and More Models
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN English Firmware
HG8310 EPON ONT, 1*LAN English Firmware
HG8110 EPON ONT, 1*LAN+1*Voice English Firmware
HG8120 EPON ONT, 2*LAN+1*Voice English Firmware
HG8240 EPON ONT, 4*LAN+2*Voice English Firmware
HG8346R EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
HG8245 EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
GPON ONT
EG8120L GPON with one GE port, one POTS port, and one FE port.
HG8310M GPON ONT, 1*LAN English Firmware
HG8010/HG8010C GPON ONT, 1*LAN English Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE English Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE English Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE English Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE English Firmware SIP
HG8345R internal antenna GPON ONT, 4FE+WIFI (internal antenna)English Firmware SIP
HG8345R external antenna GPON ONT, 4FE+WIFI (external antenna)English Firmware SIP
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, English Firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (internal antenna)English Firmware SIP
HG8346R external antenna GPON ONT, 4FE+2VOICE+WIFI (external antenna)English Firmware SIP
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI English Firmware SIP
HG8245H external antenna GPON ONT, 4GE+2VOICE+WIFI ( external antenna)black colour English SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI English Firmware SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV English Firmware SIP
HG8310M FTTH Product Applications
