Description
Fiber Optic Splice Enclosure is Horizontal Type 2 In 2 Out 144 Core, which is a flexible and frequently utilized solution for aerial or subterranean installations, with IP protection achieving up to IP68 waterproof level. Constructed from high-tensile strength plastic, the inline fiber splice joint closure provides superior waterproof and dustproof protection in adverse conditions. The mechanical sealing installation method ensures a secure connection and simplifies maintenance of the fiber splicing. The 144-core inline fiber joint closure includes two input and two output ports, accommodating 144 fiber splices across four 24-fiber splice trays.

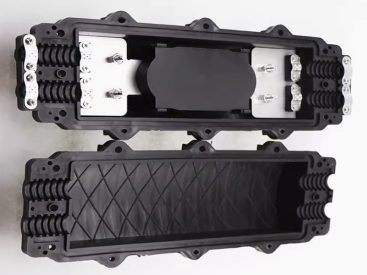

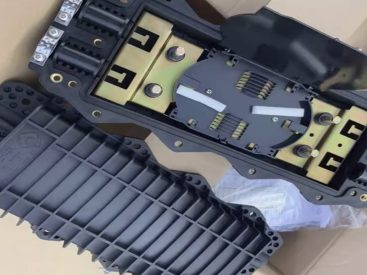

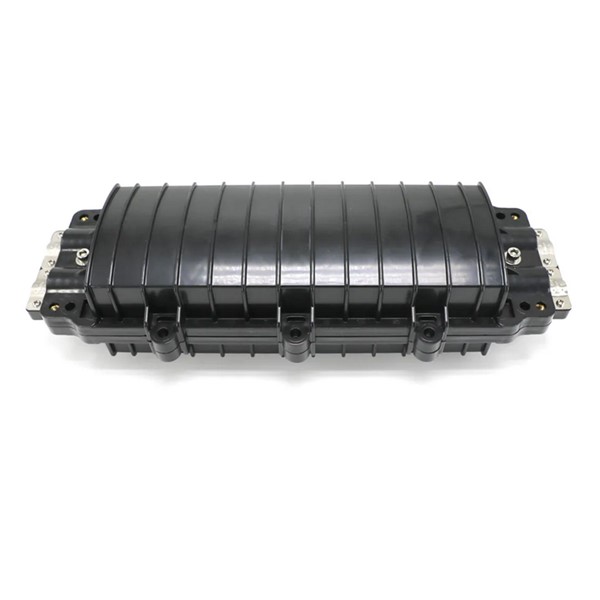

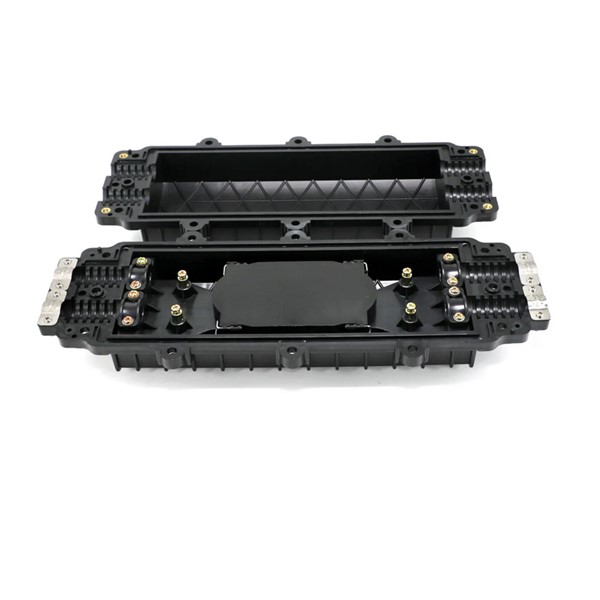

Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core Pictures
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core Specs
| Items | Parameter |
| Product Name | Fiber Optic Splice Closure |
| Maximum Fiber Capacity | 144 Ports |
| Mounting Type | Aerial-mounted Duct-mounted Underground |
| Material | PC |
| Seal Material | Silicone rubber |
| Protection Class | IP68 |
| Fiber Cable Diameter | φ7~22mm |
| Inlet / Outlet Ports Number | 2 PCS/2 PCS |
| Weight | 3.1kg |
| Dimension | 460*250*200mm |
| Working Temperature | -40℃~65℃ |
| Relative Humidity | ≤85%(At 30℃) |
| Color | Black |
| Packing Dimension | 4PCS/CTN, 520*480*430mm |
| Packing Weight | 12.5kg |
| Use | Ftth project, FTTH |
| Network | Wired LAN, Wiegand |
| Warranty Time | 12 months |
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core Features
- The closure casing is made of quality engineering PP plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance.The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core Applications
- FTTX
- CATV networks
- Local area networks
- Optical fiber communication
- Fiber optic network convergence
- Optical fiber access network
- Widely used in FTTH access network
- Telecommunication networks
- Data communications networks
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting
