Huawei CE6881-48T6CQ Switch is next-generation 10GE access switch with 48 x 10GE Base-T ports and 6 x porty 100GE QSFP28.
Huawei CE6881-48T6CQ Switch Product Overview
The switch provides high performance and high port density on data center networks and high-end campus networks. CE6881-48T6CQ has advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. With using Huawei’s VRP8 software platform, it could support extensive data center features and high stacking capabilities. Ponadto, the switch adopts flexible airflow design (przód-tył lub tył-przód) working with CloudEngine 16800 lub CloudEngine 12800 Seria przełączników rdzenia centrum danych w celu zbudowania elastyczności, faktyczny, oraz wysokiej jakości sieci typu full-mesh 40GE/100GE, spełniające wymagania centrów przetwarzania danych w chmurze. Dodatkowo, Huawei CloudEngine 6881-48T6CQ Switch provides high-density 10GE access to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also work as core or aggregation switches on campus networks.

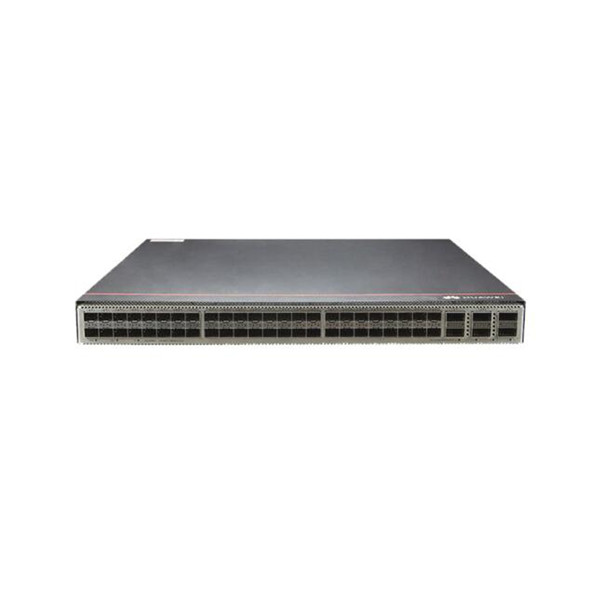

Huawei CE6881-48T6CQ Switch Product Pictures
Huawei CE6881-48T6CQ Switch Specifications
| Parametry | CloudEngine 6881-48T6CQ |
| Porty łącza w dół | 48 X 10 GE Base-T |
| Porty łącza zwrotnego | 6 X 40/100 GE QSFP28 |
| Wydajność przełączania | 2.16 Tbit/s |
| Wydajność spedycji | 940 mpps |
| Bufor | 42 MB |
| Niezawodność | LACP |
| BFD for BGP, JEST- JEST, OSPF, static route, and VXLAN | |
| Mikrosegmentacja | |
| Sprzętowy BFD | |
| O&M | Telemetria |
| Netstream | |
| sPrzepływ | |
| ERSPAN+ | |
| Funkcje centrum danych | Routing i mostkowanie VXLAN |
| BGP EVPN | |
| M-LAG | |
| PFC i ECN | |
| Maksymalne zużycie energii | 452 W |
| Zasilacz | 600W AC&240V DC |
| 1000W -48V DC | |
| 1200W HVDC | |
| Napięcie robocze | AC: 90V ~ 290 V |
| DC: -38.4V~-72V | |
| 240V HVDC: 190V ~ 290 V | |
| 380V HVDC: 190V ~ 400 V |
Huawei CE6881-48T6CQ Switch Features
- Proactively performing path detection over the entire network, periodically checking sample flows to determine the connectivity of all paths on the network and locates fault points, providing real-time network health information.
- Supporting visualization of all flows and congestion, improving service experience.
- Using a strict front-to-back/back-to-front airflow design that isolates cold air channels from hot air channels. Konstrukcja ta poprawia efektywność odprowadzania ciepła i spełnia wymagania projektowe pomieszczeń wyposażonych w centrum danych.
- Providing innovative energy-saving chips and can measure system power consumption in real time. The fan speed can be adjusted dynamically based on system consumption. These energy-saving technologies reduce O&M costs and contribute to a greener data center.
- Supporting remote positioning. Remote positioning indicators enable users to easily identify the switches they want to maintain in an equipment room full of devices.
Huawei CE6881-48T6CQ Switch Ordering Info
| CE6881-48S6CQ | CE6881-48S6CQ switch (48*10G SFP+, 6*100G QSFP28, without fan and power modules) | |
| CE6881-48S6CQ-B | CE6881-48S6CQ-B switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake) | |
| CE6881-48S6CQ-F | CE6881-48S6CQ-F switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) | |
| CE6881-48T6CQ | CE6881-48T6CQ switch (48*10G RJ45, 6*100G QSFP28, without fan and power modules) | |
| CE6881-48T6CQ-B | CE6881-48T6CQ-B switch(48*10GE RJ45,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side intake) | |
| CE6881-48T6CQ-F | CE6881-48T6CQ-F switch (48*10G RJ45, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) | |
| WENTYLATOR-031AF | Pudełko wentylatora (F,Wlot boczny panelu WENTYLATORA) | CloudEngine 6881 seria |
| WENTYLATOR-031A–B | Pudełko wentylatora (B,Wylot boczny panelu WENTYLATORA) | CloudEngine 6881 seria |
| PAC600S12-CF | 600W Moduł zasilania prądem zmiennym(Front to Back,Wlot z boku panelu zasilania) | CloudEngine 6881 seria |
| PAC600S12-CB | 600W Moduł zasilania prądem zmiennym(Z powrotem do przodu, Power panel side exhaust) | CloudEngine 6881 seria |
| PDC1000S12-DF | 1000W Moduł zasilania prądem stałym (Front to Back,Wlot z boku panelu zasilania) | CloudEngine 6881 seria |
| PDC1000S12-DB | 1000W Moduł zasilania prądem stałym (Od przodu do tyłu,Power panel side exhaust) | CloudEngine 6881 seria |
| PHD1K2S12-DB | 1200W HVDC Power Module (Back to Front, Power panel side exhaust) | CloudEngine 6881 seria |
| N1-CE68LIC-CFMM | N1-CloudFabric Management SW License for CloudEngine 6800 | |
| N1-CE68CFMM-SnS1Y | N1-CE68CFMM-SnS1Y,N1-CloudFabric Management SW License for CloudEngine 6800 | |
| N1-CE68LIC-CFFD | Licencja SW N1-CloudFabric Foundation na CloudEngine 6800 | |
| N1-CE68CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 6800-SnS-Year | |
| N1-CE68LIC-CFAD | Zaawansowana licencja oprogramowania N1-CloudFabric dla CloudEngine 6800 | |
| N1-CE68CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine -SnS -Year | |
| N1-CE68LIC-CFPM | Licencja N1-CloudFabric Premium SW na CloudEngine 6800 | |
| N1-CE68CFPM-SnS1Y | Licencja N1-CloudFabric Premium SW na CloudEngine 6800 -SnS-Rok | |
Huawei CE6881-48T6CQ Switch and More CE6800
CloudEngine 6857E-48S6CQ „48*10GE SFP+ 6*40/100GE QSFP28”
CloudEngine 6857F-48S6CQ „48*10GE SFP+ 6*40/100GE QSFP28”
CloudEngine 6857F-48T6CQ 48*10GE Base-T 6*40/100GE QSFP28
CloudEngine 6865E-48S8CQ 48*10/25GE SFP28 8*40/100GE QSFP28
CloudEngine 6881-48S6CQ 48 x porty 10GE SFP+ i 6 x porty 100GE QSFP28
CloudEngine 6881-48T6CQ 48*10G RJ45, 6*100G QSFP28
CloudEngine 6881H-48S6CQ 48*10 GE SFP+ 6*40/100 GE QSFP28
CloudEngine 6881H-48T6CQ 48*10 GE Base-T i 6*40/100 GE QSFP28
CloudEngine 6870-48S6CQ-EI-A 48*10 GE SFP+ 6*40/100 GE QSFP28
CloudEngine 6863-48S6CQ 48*10/25 GE SFP28 6*40/100 GE QSFP28
CloudEngine 6863E-48S6CQ 48*10/25 GE SFP28 6*40/100 GE QSFP28
CloudEngine 6863H-48S6CQ 48*25 GE SFP+ 6*40/100 GE QSFP28
CloudEngine 6866-48S8CQ-P 48*10/25 GE SFP28 lub 48 X 50 GE SFP56 8*40/100 GE QSFP28 lub 8 X 200 GE QSFP56
CloudEngine 6860-HAM 48*10/25 GE SFP28 lub 48 X 50 GE SFP56 8*40/100 GE QSFP28 lub 8 X 200 GE QSFP56
CloudEngine 6820H-48S6CQ 48*10 GE SFP+ 6*40/100 GE QSFP28
Huawei CloudEngine 6881-48T6CQ Switch Product Applications
