Beschrijving
SIMCom SIM5310 3G Module is a WCDMA Module designed for WCDMA/GSM/GPRS/EDGE module solution in SMT type.
SIMCom SIM5310 3G Module Product Overview
The module has strong extension capability with rich interfaces including UART, USB2.0, SPI, 2C,Keypad, PCM, enz. Aanvullend, it offers abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS. Bovendien, the item provides much flexibility and ease of integration for customer’s application. Considering them, SIMCom SIM5310 is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

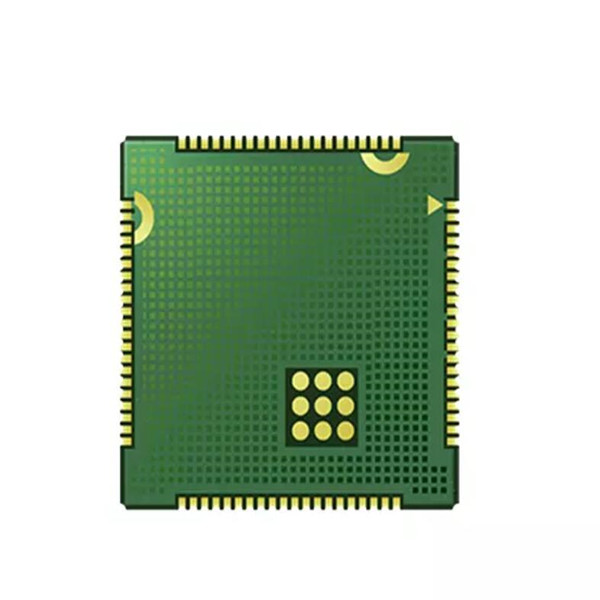

SIMCom SIM5310 3G Module Product Pictures
SIMCom SIM5310 3G Module Product Specifications
| Merk | SIMCom |
| Model | SIM5310 |
| Vormfactor | LCC 80Pin |
| Dimensies(mm) | 30 X 30X 2.9 mm |
| Gewicht | 5.0G |
| Voedingsspanningsbereik | 3.4V~ 4.2V |
| Bedrijfstemperatuur | -30℃ to +80℃ |
| Extended operation temperature | -40℃ tot +85℃ |
| Functies | • USB Driver for Microsoft Windows 2000/XP/Vista/7/8 • USB Driver for Windows CE/Mobile • USB Driver for Linux /Android • Firmware update via USB • MMS • TCP/IP • FOTA • FTP/FTPS/HTTP/HTTPS/DNS |
| Frequentiebanden | • Single-Band UMTS 2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz • GPRS multi-slot class 12 • EDGE multi-slot class 12 |
| Data overdracht | WCDMAMax. 384Kbps(DL), Max.384Kbps(UL) • EDGE Class: – Max. 236.8Kbps(DL),Max.118Kbps(UL) • GPRS – Max. 85.6Kbps(DL), Max.42.8Kbps(UL) • CSD – GSM data rate 14.4Kbps – WCDMA data rate 57.6Kbps – WCDMA 64kbps CSD for Video call |
| Interfaces | • USB2.0 • UART• SIM card • SPI• I2C• Keypad • PCM ** • Constant current sink • GPIO• RTC• ADC • Mic/Receiver ** |
| Specificaties voor sms | • Point to point MO and MT • Text and PDU mode |
| Support embedded Script Language | • LUA Script Language • Embedded AT * |
| Certificeringen | CE |
SIMCom SIM5310 3G Module Product and More Related Models
A5360E LCC+LGA
SIM5320A LCC 80Pin
SIM5320E LCC 80Pin
SIM5320J LCC 80Pin
SIM5320JE LCC 80Pin
SIM5310 LCC 80Pin
SIMCom SIM5310 3G Module Product Applications
