Beschrijving
DAC QSFP-4SFP25G-CU2M is 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-meter
DAC QSFP-4SFP25G-CU2M Product Overview
100G QSFP28 to 4x25G SFP28 DAC breakout high-speed cable is an ideal solution for short-distance transmission (up to 5m) in 100G to 25G Ethernet applications, supporting 4-channel bidirectional transmission to meet the expanding demand for cost-effective data center interconnects.

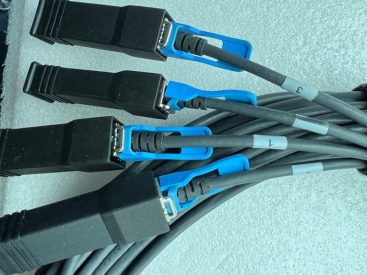

DAC QSFP-4SFP25G-CU2M Product Pictures
DAC QSFP-4SFP25G-CU2M Product Specifications
| Model | QSFP-4SFP25G-CU5M |
| Connector Type | QSFP28 to SFP28 |
| Max Data Rate | 100Gbps |
| Minimum Bend Radius | 30mm |
| Wire AWG | 26AWG |
| Cable Length | 2M |
| Jacket Material | PVC (OFNR) |
| Temperatuur | 0 tot 70°C (32 tot 158°F) |
DAC QSFP-4SFP25G-CU2M Product Features
- Power Consumption 0.5W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Minimum Bend Radius 30mm for Flexible Routing
- Supports 100G to 4x 25G Ethernet Interoperability
- Simplifies the Patching and Offers a Cost-effective Way for Short Links
- FS BOX – Support Real-time Configuration
- Hot Pluggable Cable Compliant with QSFP28/SFP28 MSA and RoHS
- Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
DAC QSFP-4SFP25G-CU2M and More DAC Cables
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-meter
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1.5-meter
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-meter
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2.5-meter
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 3-meter
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-meter
DAC QSFP-4SFP25G-CU2M Product Applications
