SKU: Huawei S5731-H48HB4XZ Switch Categorie: Labels: , ,

Beschrijving

Huawei S5731-H48HB4XZ Switch is next-generation intelligent hybrid optical-electrical fixed switch with 44 x GE SFP ports+ 4 x 10GE SFP+ ports, 4 x 10GE SFP+ ports One extended slot 1+1 power backup PoE++ and Switching capacity: 408Gbps/672Gbps

Huawei S5731-H48HB4XZ Switch Product Overview

The switch can function as core switches for small-sized campus networks and branches of medium- en grootschalige campusnetwerken, and also work as access switches for Metropolitan Area Network.Bbuilt on Huawei’s unified Versatile Routing Platform (VRP), the integrated wireless AC capabilities can manage up to 1,024 wireless Aps, the free mobility feature ensures consistent user experience, and the VXLAN functionality implements network virtualization. In aanvulling, CloudEngine S5731-H48HB4XZ supports innovative opticalelectrical synergy technologies and integrates optical ports and electrical ports, and function as a central switch to provide 60 W PoE++ power for remote units (RUs) bij 300 M

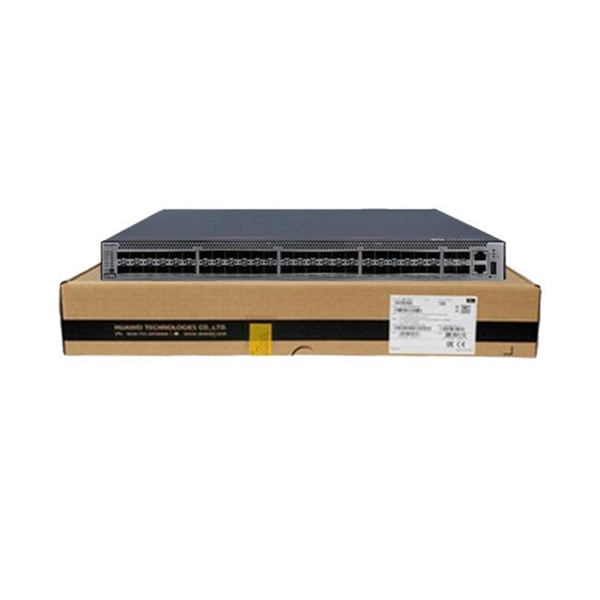

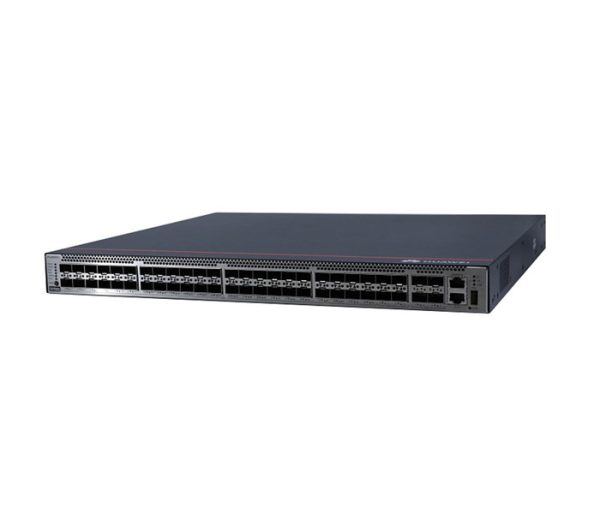

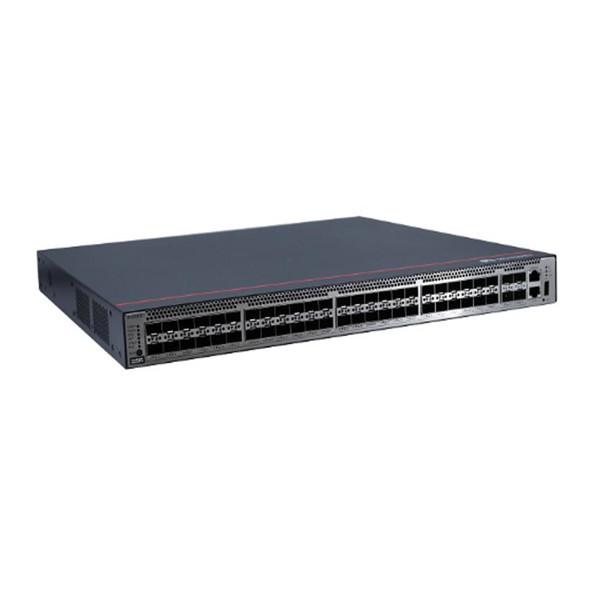

Huawei S5731-H48HB4XZ Switch Product Pictures

Huawei CloudEngine S5731-H48HB4XZ price and specs ycictHuawei S5731-H48HB4XZ price and specs huawei S5731-H ycict

Huawei CloudEngine S5731-H24HB4XZ price and specs huawei switch ycictHuawei CloudEngine 6857F-48T6CQ huawei ce6800 switch ycict

Huawei S5731-H48HB4XZ Product Specifications

Item Specificatie
Parameters CloudEngine S5731-H48HB4XZ
Schakelcapaciteit2 408 Gbit/s/672 Gbit/s
Vaste poorten 44 x GE SFP, 4 X 10 GE SFP+, 4 X 10 GE SFP+
PoE++ Ondersteund, when used with a hybrid cable and an optical-electrical module
Uitgebreide slots One extended slot, 2 X 40 GE QSFP+, 2 X 25 GE SFP28 of 8 X 10 GE SFP+ cards
Bedrijfstemperatuur op lange termijn [°C(°F)] –5°C tot +45°C (23°F tot 113 °F) op een hoogte van 0 naar 1800 M (0 naar 5905.51 ft.)
Bedrijfstemperatuur op korte termijn [°C(°F)] -5°C tot +50°C (23°F tot 122 °F) op een hoogte van 0-1800 M (0-5905.44 ft.)
Bewaar temperatuur [°C(°F)] –40°C tot +70°C (–40°F tot +158°F)
Relatieve vochtigheid op lange termijn [RV] 5% RV tot 95% RV (niet-condenserend)
Bedrijfshoogte op lange termijn [M(ft.)] 0–5000 m (0–16404 ft.)
Opslaghoogte [M(ft.)] 0-5000 M (0-16404 ft.)
Voedingsmodus Pluggable power supply
Nominale ingangsspanning [V] AC-ingang: 100 V AC naar 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC-ingang: –48 V DC to –60 V DC
Ingangsspanningsbereik [V] AC-ingang: 90 V AC naar 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC naar 290 V DC
DC-ingang: -38.4 V DC naar -72 V DC
Maximale ingangsstroom [A] The current specifications are related to the pluggable power module. Voor details, see Pluggable Power Modules.
Geheugen 2 GB
Flash-geheugen 1 GB in totaal. Om de beschikbare flashgeheugengrootte te bekijken, voer de opdracht weergaveversie uit.
Overspanningsbeveiliging van de voeding [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Soorten ventilatoren Pluggable
Warmteafvoermodus Air cooling for heat dissipation, intelligente aanpassing van de ventilatorsnelheid
Luchtstroomrichting Air intake from left, voorkant, and right and air exhaust from rear
PoE Ondersteund
Certificering EMC-certificering
Veiligheidscertificering
Certificering van productie

Huawei S5731-H48HB4XZ Switch Product Features

  • Support SVF and functions as a parent switch. Met deze virtualisatietechnologie, een fysiek netwerk met de “small-sized core/aggregation switches + access switches + AP's” structuur kan worden gevirtualiseerd in een “super switch”, waardoor het netwerkbeheer aanzienlijk wordt vereenvoudigd.
  • Support Layer 2 en laag 3 multicast-protocollen, PIM SM, PIM DM, PIM SSM, MLD, en IGMP-spionage, meeting the requirements of multi-terminal HD video surveillance and video conference access.
  • Support Layer 3 features such as OSPF, IS-IS, BGP, en VRRP, meeting enterprise access and aggregation service bearer requirements, and supporting more voice, video, en datatoepassingen.
  • Support 802.1x authentication, Authenticatie van MAC-adres, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (ACL's). It also supports user management based on user groups.
  • Developed based on the mature, stable VRP and supports IPv4/IPv6 dual stacks, IPv6-routeringsprotocollen (RIPng, OSPFv3, BGP4+, and IS-IS for IPv6).
  • With these IPv6 features, the CloudEngine S5731-H can be deployed on a pure IPv4 network, een puur IPv6-netwerk, of een gedeeld IPv4/IPv6-netwerk, helpen de transitie van IPv4 naar IPv6 te realiseren.

Huawei CloudEngine S5731-H48HB4XZ Switch and More S5731 Switches

S5731-H24T4XC (02352QPP/02352QPP-001/02352QPP-005)
S5731-H24P4XC (02352QPV/02352QPV-001/02352QPV-003)
S5731-H48T4XC (02352QPT/02352QPT-003/02352QPT-007)
S5731-H48P4XC (02352SVD/02352SVD-001/02352SVD-003)
S5731-H48T4XC-B (02353VAD/02353VAD-003/02353VAD-005)
S5731-H24HB4XZ (02354QXD)
S5731-H24HB4XZ (02354QXD-001)
S5731-H48HB4XZ (02354QXB)
S5731-H48HB4XZ (02354QXB-001)

Huawei S5731-H48HB4XZ Switch Ordering Info

CloudEngine S5731-H24HB4XZ CloudEngine S5731-H24HB4XZ(20*GE SFP-poorten, 4*10GE SFP+-poorten, 4*10GE SFP+-poorten, 1*uitbreidingsslot, PoE++, zonder voedingsmodule)
CloudEngine S5731-H48HB4XZ CloudEngine S5731-H48HB4XZ(44*GE SFP-poorten, 4*10GE SFP+-poorten, 4*10GE SFP+-poorten, 1*uitbreidingsslot, PoE++, zonder voedingsmodule)
S7Q02001 2-port 40GE QSFP+ interface card
ES5D21X08T00 8-port 10GBASE-T interface card
S7X08000 2-port 25GE SFP28 or 8-port 10GE SFP+ interface card
PAC600S56-CB 600 W AC-voedingsmodule
PAC1000S56-DB 1000 W AC PoE-voedingsmodule
PAC1000S56-CB 1000 W AC PoE-voedingsmodule
PDC1000S56-CB 1000 W DC PoE-voedingsmodule
FAN-023A-B Ventilatormodule, Air flows in from the front side and exhausts from the rear panel.
L-512AP-S57 S57-serie, Wireless Access Controller AP Resource License-512AP
L-64AP-S57 S57-serie, Wireless Access Controller AP Resource License-64AP
L-32AP-S57 S57-serie, Wireless Access Controller AP Resource License-32AP
L-1AP-S57 S57-serie, Draadloze toegangscontroller AP-bronlicentie-1AP
L-VxLAN-S57 S57-serie, VxLAN-licentie, Per apparaat
N1-S57H-M-Lic S57XX-H Series Basic SW,Per apparaat
N1-S57H-M-SnS1Y S57XX-H Series Basic SW,SnS,Per apparaat,1Jaar
N1-S57H-F-Lic N1-CloudCampus,Fundering,S57XX-H Series,Per apparaat
N1-S57H-F-SnS1Y N1-CloudCampus,Fundering,S57XX-H Series,SnS,Per apparaat,1Jaar
N1-S57H-A-Lic N1-CloudCampus,Geavanceerd,S57XX-H Series,Per apparaat
N1-S57H-A-SnS1Y N1-CloudCampus,Geavanceerd,S57XX-H Series,SnS,Per apparaat,1Jaar
N1-S57H-FToA-Lic N1-Upgrade-Foundation naar Advanced,S57XX-H,Per apparaat
N1-S57H-FToASnS1Y N1-Upgrade-Foundation naar Advanced,S57XX-H,SnS,Per apparaat,1Jaar

Huawei S5731-H48HB4XZ Switch Product Applications

Huawei CloudEngine S5731-H48HB4XZ Switch prijs en specificaties ycict
