Huawei S5720-36PC-EI-AC Switch is an Enhanced Gigabit Switch with 28 Ethernet 10/100/1000 havens, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP and Double hot swappable AC or DC power supplies, one AC power module equipped by default
Huawei S5720-36PC-EI-AC Switch Product Overview
The switch provides flexible all-gigabit access and enhanced 10GE uplink port scalability. It is widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers. Tegelijkertijd, S5720-36PC-EI-AC offers flexible GE access ports (including optical, elektrisch, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches. Aanvullend, S5720-EI supports iStack. This technology can virtualize up to nine physical switches into one logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides strong network expansion capability, enables easy increase of ports, bandwidth, and processing capacity of a stack, and simplifies configuration and management.

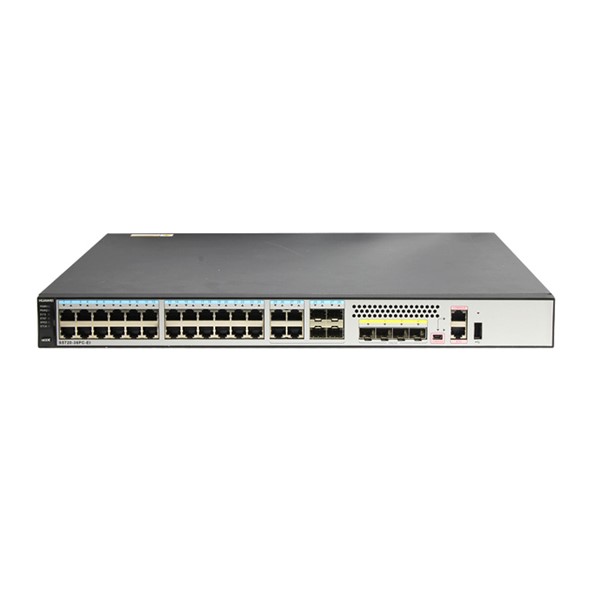

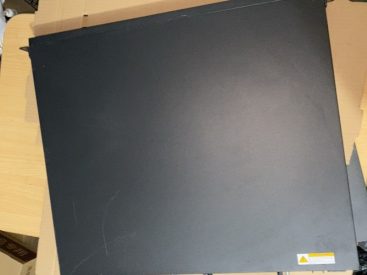

Huawei S5720-36PC-EI-AC Switch Product Pictures
Huawei S5720-36PC-EI-AC Switch Product Specifications
Item | Beschrijving |
Model | S5720-36PC-EI-AC |
Onderdeel nummer | 02350BDQ |
Haven | 28 Ethernet 10/100/1000 havens, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP |
Geheugen (RAM) | 2 GB |
Flash | 512 MB totaal. Om de beschikbare flashgeheugengrootte te bekijken, voer de opdracht weergaveversie uit. |
Gemiddelde reparatietijd (MTTR) | 2 uur |
Beschikbaarheid | > 0.99999 |
Overspanningsbeveiliging servicepoort | Service ports on front panel: ±6 kV in gewone modus |
Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode | |
Overspanningsbeveiliging van de voeding | Using AC power modules: ±6 kV in differentiële modus, ±6 kV in gewone modus |
Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
Gewicht (met verpakking) | 9.8 kg (21.61 pond) |
Poorten stapelen | Ports on the 2-port 10GE SFP+ rear interface card |
Ports on the 2-port 10GE RJ45 rear interface card | |
Ports on the 2-port QSFP+ rear stack card | |
RTC | Ondersteund |
RPS | Niet ondersteund |
PoE | Niet ondersteund |
Nominale spanningsbereik | 100 V AC naar 240 V AC, 50/60 Hz |
-48 V DC naar -60 V DC | |
Maximaal spanningsbereik | 90 V AC naar 264 V AC, 47 Hz tot 63 Hz |
-36 V DC naar -72 V DC | |
Maximaal stroomverbruik (100% doorvoer, volle snelheid van ventilatoren) | 74.6 W |
Typisch stroomverbruik (30% van de verkeersbelasting) | 39.5 W (zonder kaart) |
Tested according to ATIS standard | 47.28 W (with 2*10GE optical card) |
EEE enabled | 52.17 W (with 2*QSFP+ stack card) |
No PoE power consumption | 55.14 W (with 2*10GE electrical card) |
Bedrijfstemperatuur | 0°C tot 45 °C (32°F tot 113 °F) op een hoogte van 0-1800 M (0-5906 ft.) |
Bedrijfstemperatuur op korte termijn | -5°C tot +50°C (23°F tot 122 °F) op een hoogte van 0-1800 M (0-5906 ft.) |
Bewaar temperatuur | -40°C tot +70°C (-40°F tot +158°F) |
Lawaai bij normale temperatuur (27°C, geluidskracht) | < 51.2 dB(A) |
Relatieve vochtigheid | 5% naar 95%, niet-condenserend |
Bedrijfshoogte | AC power modules configured: 0-5000 M (0-16404 ft.) |
DC power modules configured: 0-2000 M (0-6562 ft.) | |
Certificering | EMC-certificering |
Veiligheidscertificering | |
Certificering van productie | |
Dimensies (H x B x D) | Basisafmetingen (met uitzondering van de delen die uit het lichaam steken): 44.4 mmx 442.0 mmx 424.7 mm (1.75 in. X 17.4 in. X 16.72 in.) |
Maximale afmetingen (de diepte is de afstand van de poorten op het voorpaneel tot de handgreep op het achterpaneel): 44.4 mmx 442.0 mmx 451.8 mm (1.75 in. X 17.4 in. X 17.79 in.) |
Huawei S5720-36PC-EI-AC Switch Product Features
- S5720-EI supports Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network’s IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protocol.
- S5720-EI supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One S5720-EI switch can connect to multiple aggregation switches through multiple links, waardoor de betrouwbaarheid van toegangsapparatuur aanzienlijk wordt verbeterd.
- S5720-EI provides a series of mechanisms to defend against DoS and user-targeted attacks. DoS-aanvallen zijn gericht op switches en omvatten SYN flood, Land, smurf, en ICMP-overstromingsaanvallen. Op gebruikers gerichte aanvallen omvatten valse DHCP-serveraanvallen, IP/MAC-adresspoofing, DHCP-verzoek overstroming, en wijziging van de DHCP CHADDR-waarde.
- S5720-EI sets up and maintains a DHCP snooping binding table, en verwijdert de pakketten die niet overeenkomen met de tabelgegevens. U kunt vertrouwde en niet-vertrouwde poorten voor DHCP-spionage opgeven om ervoor te zorgen dat gebruikers alleen verbinding maken met de geautoriseerde DHCP-server.
Huawei S5720-36PC-EI-AC Switch and More S5720-EI Models
S5720-32P-EI-AC 24 Ethernet 10/100/1000 havens, 4 100/1000 SFP, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
S5720-32X-EI-AC 24 Ethernet 10/100/1000 havens, 4 100/1000 SFP, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-AC 24 Gig SFP, 4 Ethernet 10/100/1000 havens, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-DC 24 Gig SFP, 4 Ethernet 10/100/1000 havens, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-36C-EI-28S-AC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-28S-DC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-AC 28 Ethernet 10/100/1000 havens, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36C-PWR-EI-AC 28 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36PC-EI-AC 28 Ethernet 10/100/1000 havens, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-50X-EI-AC 46 Ethernet 10/100/1000 havens, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-DC 46 Ethernet 10/100/1000 havens, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-AC 46 Gig SFP, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-DC 46 Gig SFP, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-52X-EI-AC 48 Ethernet 10/100/1000 havens, 4 10 Giga SFP+, 2 QSFP+ dedicated stack ports AC power supply
S5720-52P-EI-AC 48 Ethernet 10/100/1000 havens, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
S5720-56C-EI-48S-AC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-48S-DC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-AC 48 Ethernet 10/100/1000 havens, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-DC 48 Ethernet 10/100/1000 havens, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC1 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-DC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56PC-EI-AC 48 Ethernet 10/100/1000 havens, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
Huawei S5720-36PC-EI-AC Switch Product Applications
