Beschrijving
Huawei NE20E-S8 Router uses the latest VRP8.0 platform, which is the same platform as Huawei NE5000E. VRP operating system adopts RDF (Resilient Distributed Framework) elastic distributed architecture. Through relatively separated management plane, business plane, data plane and control plane, Huawei NE20E-S8 greatly improves the flexibility, betrouwbaarheid, manageability and expansion of the entire system。
| Parameters | Schakelcapaciteit | Prestaties doorsturen | Vaste poorten | Slots QTY | Maat (H x B x D) | Energieverbruik | with Full Configuration | |
| NetEngine20E-S8 | 960 Gbit/sec | 356 MP | – | 2 MPU's | 222 X 442 X 220 mm (gelijkstroom, 5 U) | 264 X 442 X 220 mm (AC, 6 U) | 645 W (gelijkstroom) | 703 W (AC) |
NE20E-S series routers include NE20E-S4, NE20E-S8, NE20E-S8A, NE20E-S16, and NE20E-S16A.
Huawei NE20E-S8 Router Product Overview
Huawei NE20E-S8 Router is a high-end network product launched by Huawei for the needs of users in transportation, financiën, stroom, government, onderwijs, and enterprises. It is mainly used in the convergence of IP backbone networks and SME networks. Kern, campus network edge, small and medium campus network access, enz.
Huawei NE20E-S8 Router takes Huawei’s self-developed NP chip. Based on distributed hardware forwarding and non-blocking switching technology, they have good wire-speed forwarding performance, Betrouwbaarheid op carrier-niveau, uitstekende schaalbaarheid, comprehensive QoS mechanisms, and rich services. Processing power. Huawei NE20E-S8 Router adopts the latest general routing platform VRP (Versatile Routing Platform) independently developed by Huawei.

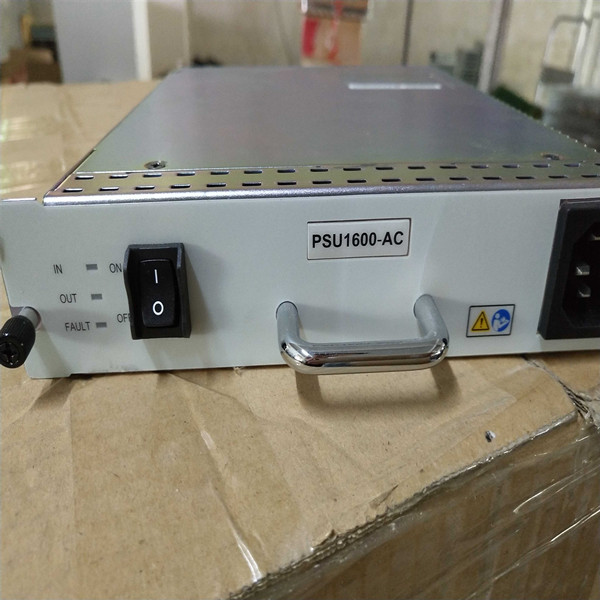

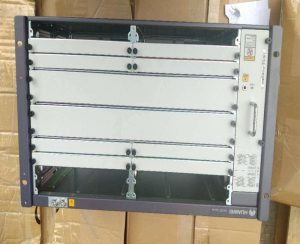

Huawei NE20E-S8 Router Product Pictures
Huawei NE20E-S8 Router Product Specifications
| Parameters | NetEngine20E-S2E | NetEngine20E-S2F | NetEngine20E-S4 | NetEngine20E-S8 | NetEngine20E-S16 | NetEngine20E-S8A | NetEngine20E-S16A |
| Schakelcapaciteit | 160 Gbit/sec | 320 Gbit/sec | 320 Gbit/sec | 960 Gbit/sec | 960 Gbit/sec | 2 Tbit/s | 2 Tbit/s |
| Prestaties doorsturen | 119 MP | 163 MP | 356 MP | 356 MP | 356 MP | 452 MP | 452 MP |
| Vaste poorten | 2 X 10 GE (SFP+) + 24 x GE (SFP) | 4 X 10 GE (SFP+) + 40 x GE (SFP) | – | – | – | – | – |
| Slots QTY | 2 PICs | 2 PICs | 2 MPU's | 2 MPU's | 2 MPU's | 2 MPU's | 2 MPU's |
| 1 NSP | 2 NSP's | 2 NSP's | 2 NSP's | 2 NSP's | |||
| 4 PICs | 8 PICs | 16 PICs | 8 PICs | 16 PICs | |||
| Maat (H x B x D) | 89 X 442 X 220 mm (2 U) | 89 X 442 X 220 mm (2 U) | 132 X 442 X 220 mm (gelijkstroom, 3 U) | 222 X 442 X 220 mm (gelijkstroom, 5 U) | 353 X 442 X 220 mm (8 U) | 222 X 442 X 220 mm (gelijkstroom, 5 U) | 353 X 442 X 220 mm (8 U) |
| 175 X 442 X 220 mm (AC, 4 U) | 264 X 442 X 220 mm (AC, 6 U) | 264 X 442 X 220 mm (AC, 6 U) | |||||
| Energieverbruik | 195 W (gelijkstroom) | 309 W (gelijkstroom) | 398 W (gelijkstroom) | 645 W (gelijkstroom) | 696 W (gelijkstroom) | 645 W (gelijkstroom) | 708 W (gelijkstroom) |
| with Full Configuration | 219 W (AC) | 335 W (AC) | 456 W (AC) | 703 W (AC) | 740 W (AC) | 703 W (AC) | 752 W (AC) |
| Interfacetypen | 100 GE, 50 GE, 40 GE, 25 GE, 10 GE, GE/FE, OC-3c/STM-1c POS, OC-12c/STM-4c POS, Gekanaliseerde OC-3/STM-1 POS, en E1/CE1 | ||||||
Huawei NE20E-S8 Router Product Features
- Self-developed chip
Huawei NE20E-S8 Router has a built-in Huawei self-developed network processor NP chip. With its flexible all-programmable architecture, new services can be realized through microcode programming. Customers do not need to replace new hardware, which saves equipment investment costs。
- Leading industrial design
Huawei NE20E-S8 Router uses industry-leading industrial design, low power consumption, green energy saving, low carbon and environmental protection. The device is only 220m deep and has a minimum height of 2U, which saves user room space. NE20E-S wide temperature design meets the working conditions of -40 ~ 65 ℃, suitable for outdoor applications in harsh environments.
- Comprehensive convergence access capabilities
Huawei NE20E-S8 Router has a variety of port types, supporting E1 / CE1, POS, CPOS, Geldautomaat, GE, 10GE, 40GE, and 100G. It has high-density fixed ports to meet the requirements of traditional wide-area aggregation access. It can also support Ethernet MSTP aggregation. To fully meet customer business needs.
Huawei NE20E-S8 Router Product Ordering Info
| Type | Beschrijving |
| NE20E-S Basisconfiguratie | NE20E-S16 DC-basisconfiguratie |
| NE20E-S16 AC-basisconfiguratie | |
| NE20E-S8 DC-basisconfiguratie | |
| NE20E-S8 AC-basisconfiguratie | |
| NE20E-S4 DC-basisconfiguratie | |
| NE20E-S4 AC-basisconfiguratie | |
| NE20E-S2F DC-basisconfiguratie | |
| NE20E-S2F AC-basisconfiguratie | |
| NE20E-S2E DC-basisconfiguratie | |
| NE20E-S2E AC-basisconfiguratie | |
| Netwerkserviceprocessor (NSP-50-E, gelden voor scenario's van –40°C tot 65°C) | |
| Netwerkserviceprocessor (NSP-120-E, gelden voor scenario's van –40°C tot 65°C) | |
| Netwerkserviceprocessor (NSP-A) | |
| Netwerkserviceprocessor (NSP-B) | |
| NE20E-S-lijnkaarten | 1-Poort 40G Base-CFP fysieke interfacekaart |
| 4-Poort 10G basis LAN/WAN-SFP+ fysieke interfacekaart | |
| 2-Poort 10G basis LAN/WAN-SFP+ fysieke interfacekaart | |
| 2-Poort 10G Basis LAN/WAN-SFP+ Fysieke interfacekaart H | |
| 1-Poort 10G Basis LAN/WAN-SFP+ + 8-Haven 100/1,000 Base-X-SFP fysieke interfacekaart | |
| 10-Haven 100/1,000 Base-X-SFP fysieke interfacekaart | |
| 10-Haven 100/1,000 Base-X-SFP fysieke interfacekaart H | |
| 8-Haven 100/1,000 Base-RJ45 fysieke interfacekaart | |
| 4-Poort OC-3c/STM-1c POS-SFP fysieke interfacekaart | |
| 2-Poort OC-3c/STM-1c (of 1-poorts OC-12c/STM-4C) POS-SFP fysieke interfacekaart | |
| 4-Poortgekanaliseerde STM-1c POS-SFP fysieke interfacekaart | |
| 1-Poortgekanaliseerde STM-1c POS-SFP fysieke interfacekaart | |
| 32-Poort E1 fysieke interfacekaart (75 ohm) | |
| 32-Poort E1 fysieke interfacekaart (120 ohm) | |
| 16-Poort E1 fysieke interfacekaart (75 ohm) | |
| 16-Poort E1 fysieke interfacekaart (120 ohm) | |
| Software | NE20E-S-serie basissoftware, VRP8, en V800R007 |
| NE20E-S-serie 1588v2-functielicentie | |
| Licentie voor IP-prestatiemeting van de NE20E-S-serie (IP-FPM) | |
| NE20E-S-serie VxLan-functielicentie | |
| NE20E-S-serie Rn tot R(n+1) Recht op softwarerelease van Rn naar R(n+1) |
Huawei NE20E-S8 Router Product Applications
