Beschrijving
Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with optical network unit to offer XGS-PON and GPON access services.
Huawei CSHF Service Board product Overview
Huawei CSHF Service Board is a 16-port XGS-PON and GPON Combo OLT interface board. This board is used in MA5800 ,EA5800 Series OLT Equipment and works together with optical network unit to offer XGS-PON and GPON access services.
Huawei SmartAX EA5800 series OLT products include four models: EA5800-X17, EA5800-X15, EA5800-X7, En EA5800-X2.
They support GPON, XG-PON, XGS-PON, GE, 10GE and other interfaces.
MA5800 series include three sizes of large, middelgroot en klein, namely MA5800-X17, MA5800-X7 En MA5800-X2, en ondersteuning voor meerdere netwerktoepassingen zoals FTTB/FTTC/FTTD/FTTH/D-CCAP.
MA5800 multi-service access equipment is a 4K/8K/VR Ready OLT in the gigabit ultra-broadband era. It adopts a distributed architecture and supports a common platform of PON/10G PON/GE/10GE. MA5800 supports multi-media Gigabit convergence, best 4K/8K/VR video experience, multi-service virtualization common platform, and 50G PON smooth evolution.
Huawei CSHF Service Board Product Pictures
Huawei CSHF Service Board Product Specifications
| Merk | Huawei |
| Model | CSHF |
| Haven | 16 |
| Type | C+-module: One-fiber bidirectional optical module, klasse C+ |
| B+-module: One-fiber bidirectional optical module, klasse B+ | |
| Bedrijfsgolflengte | C+/B+ Module: |
| GPON channel: | |
| Tx: 1490 nm | |
| Rx: 1310 nm | |
| XGS-PON channel: | |
| Tx: 1577 nm | |
| Rx: 1270 nm | |
| Inkapselingstype | SFP+ |
| Haventarief | C+/B+ Module: |
| GPON channel: | |
| Tx: 2.488 Gbit/sec | |
| Rx: 1.244 Gbit/sec | |
| XGS-PON channel: | |
| Tx: 9.953 Gbit/sec | |
| Rx: 9.953/2.488 Gbit/sec | |
| Minimaal optisch uitgangsvermogen | C+-module: |
| GPON channel: 3 dBm | |
| XGS-PON channel: 5 dBm | |
| B+-module: | |
| GPON channel: 1.5 dBm | |
| XGS-PON channel: 1 dBm | |
| Maximaal optisch uitgangsvermogen | C+-module: |
| GPON channel: 7 dBm | |
| XGS-PON channel: 8 dBm | |
| B+-module: | |
| GPON channel: 5 dBm | |
| XGS-PON channel: 4 dBm | |
| Maximale ontvangergevoeligheid | C+-module: |
| GPON channel: -32 dBm | |
| XG-PON channel: -30.5 dBm | |
| XGS-PON channel: -29 dBm | |
| B+-module: | |
| GPON channel: -28 dBm | |
| XG-PON channel: -26.5 dBm | |
| XGS-PON channel: -25 dBm | |
| Type optische connector | SC |
| Type optische vezel | Single-modus |
| Overbelasting optisch vermogen | C+-module: |
| GPON channel: -12 dBm | |
| XG-PON channel: -10 dBm | |
| XGS-PON channel: -8 dBm | |
| B+-module: | |
| GPON channel: -8 dBm | |
| XG-PON channel: -6 dBm | |
| XGS-PON channel: -4 dBm | |
| Uitstervingsratio | 8.2 dB |
| Dimensies (BxDxH) | 23.3 mmx 257.90 mmx 399.20 mm |
| Energieverbruik | Statisch: 51 W |
| Maximaal: 99 W | |
| Bedrijfstemperatuur | -40°C tot +55°C |
Huawei CSHF Service Board Product Features
- Support defense against system DoS (Denial of Service) aanvallen.
- Support MAC address filtering function.
- Support defense against ICMP/IP packet attacks.
- Support source address routing filtering function.
- Support blacklist function.
- Support DHCP option82 to enhance the security of DHCP.
- Support MAC address and port binding, support IP address and port binding.
- Supports defense against MAC/IP spoofing attacks.
- Support ONU/ONT SN (Serial Number)/Password authentication.
- Support triple churing encryption.
- GPON downstream adopts a method of encrypted broadcast transmission for different users, and supports AES (Geavanceerde coderingsstandaard) 128-bit encryption.
- Support GPON Type B OLT dual-homing.
- For dual-uplink networking, Smart Link and Monitor Link are supported.
Huawei CSHF Service Board Product and More Service Boards
| GPON | XG-PON | XGS-PON | XG-PON en GPON-combo | XGS-PON en GPON-combo | Haven | ||
| HUAWEI | MA5608T/MA5680T/ | XGBC | 4 | ||||
| MA5683T | GPBD/GPBH | XGBD | 8 | ||||
| GPFD | 16 | ||||||
| MA5800 X2/X7/X15/X17 | XGHD | TWED/XSHD/ | CGID/ | CSHD | 8 | ||
| TWHD | CGHD | ||||||
| GPLF/GPSF/ | XGSF | XSHF | CGHF | CSHF | 16 | ||
| GPUF/ GPHF | |||||||
| ZTE | C300/C320/C350 | GTGO | GTX | GTTO | GTBO | 8 | |
| GTGH | 16 | ||||||
| C600/C650/C680 | GFGH | GFXH | GFTH | GFBN/ | GFCH | 16 | |
| GFBH | |||||||

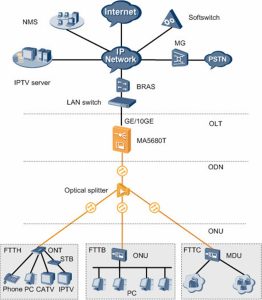

Huawei CSHF Service Board Product Applications
