Huawei CE5850-48T4S2Q-HI Switch is a next-generation, high-density Gigabit Ethernet switch with 48*GE BASE-T ports, 4*10GE SFP+-poorten, 2*40GE QSFP+ ports, which is designed for data centers and high-end campus networks.
Huawei CE5850-48T4S2Q-HI Switch Product Overview
The switch has an advanced architectural design with the industry’s highest density of GE access ports. Huawei CE5850-48T4S2Q-HI is also the first Gigabit Ethernet access switch to provide 40GE uplink ports. Het Huawei VRP8-softwareplatform gebruiken, CE5850-48T4S2Q-HI supports Transparent Interconnection of Lots of Links (TRILLER) and has a high stacking capability (tot 16 ledenschakelaars in een stapelsysteem). Aanvullend, de richting van de luchtstroom (voorkant naar- achterkant of achterkant naar voorkant) kan worden gewijzigd. Bovendien, CE5800 switches can work with CE12800 switches to build anelastic, gevirtualiseerd, hoogwaardige fabric die voldoet aan de eisen van cloud-computing datacenters.

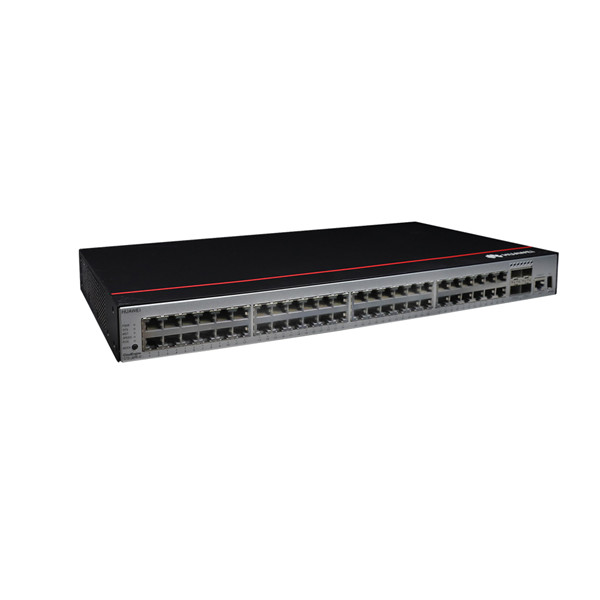

Huawei CE5850-48T4S2Q-HI Switch Product Pictures
Huawei CE5850-48T4S2Q-HI Switch Product Specifications
| Item | CE5855-48T4S2Q-NR | CE5855-24T4S2Q-NR | CE5850-48T4S2Q-HI | CE5850-48T4S2Q-NR | CE5810-48T4S-EI | CE5810-24T4S-EI |
| Poorten | 48*10/100/1000BASIS-T, 4*10GE SFP+, en 2*40GE QSFP+ | 24*10/100/1000BASIS-T, 4*10GE SFP+, en 2*40GE QSFP+ | 48*10/100/1000BASIS-T, 4*10GE SFP+, en 2*40GE QSFP+ | 48*10/100/ 1000BASIS-T, 4*10GE SFP+, en 2*40GE QSFP+ | 48*10/100/ 1000BASE-T en 4*10GE SFP+ | 24*10/100/ 1000BASE-T en 4*10GE SFP+ |
| Schakelvermogen | 336 Gbit/sec | 288 Gbit/sec | 336 Gbit/sec | 336 Gbit/sec | 176 Gbit/sec | 128 Gbit/sec |
| Prestaties doorsturen | 252 MP | 216 MP | 252 MP | 252 MP | 132 MP | 96 MP |
| Dimensies (BxDxH) | 442 mmx 420 mmx 43.6 mm | 442 mmx 420 mmx 43.6 mm | 442 mmx 420 mmx 43.6 mm | 442 mmx 420 mmx 43.6 mm | 442 mmx 420 mmx 43.6 mm | 442 mmx 420 mmx 43.6 mm |
| Gewicht (volledig geladen) | 8 kg | 7.5 kg | 8.8 kg | 8.8 kg | 8.2 kg | 8 kg |
| Werkspanning | AC：90V～290V DC：-38.4V~-72V | |||||
| Maximaal stroomverbruik | ≤130 W | ≤90 W | ≤131W | ≤133W | ≤92W | ≤68W |
| Luchtstroom ontwerp | Van voor naar achter of van achter naar voren | |||||
| Apparaat | iStack | |||||
| virtualisatie | Super virtuele stof (SVF) | |||||
| Netwerk | M-LAG | |||||
| virtualisatie | TRILLER (CE5855 & CE5850) | |||||
| VM-bewustzijn | Agile controleur | |||||
| SDN | Open programmeerbaarheidssysteem (OPS) | |||||
| Verkeersanalyse | NetStream | |||||
| sFlow | ||||||
| VLAN | Toegang toevoegen, kofferbak, en hybride interfaces met VLAN's | |||||
| Standaard VLAN | ||||||
| QinQ | ||||||
| MUX VLAN | ||||||
| MAC-adrestabel | Dynamisch leren en veroudering van MAC-adressen | |||||
| Statisch, dynamisch, en blackhole MAC-adresvermeldingen | ||||||
| Pakketfiltering op basis van bron-MAC-adressen | ||||||
| MAC-adresbeperking op basis van poorten en VLAN's | ||||||
| IP-routering | IPv4-routeringsprotocollen, zoals RIP, OSPF, BGP, en IS-IS | |||||
| IPv6-routeringsprotocollen, zoals RIPng, OSPFv3, IS-ISv6, en BGP4+ | ||||||
| IPv6 | IPv6-buurdetectie (ND) | |||||
| Pad MTU-detectie (PMTU) | ||||||
| TCP6, IPv6 pingen, tracert IPv6, stopcontact IPv6, UDP6, en Ruwe IP6 | ||||||
| Configuration and maintenance | Console, Telnet, and SSH terminals | |||||
| Network management protocols, such as SNMPv1/v2c/v3 | ||||||
| File upload and download through FTP and TFTP | ||||||
| BootROM upgrade and remote upgrade | ||||||
| 802.3het energie-efficiënte Ethernet (EEE) | ||||||
| Hot patches | ||||||
| User operation logs | ||||||
| Zero Touch-voorziening (ZTP) | ||||||
| Environmental parameters | Bedrijfstemperatuur: 0OC to 40OC (0 m to 1,800 M) | |||||
| Bewaar temperatuur: -40OC to +70OC | ||||||
| Relatieve vochtigheid: 5% RV tot 95% RV, niet-condenserend | ||||||
Huawei CE5850-48T4S2Q-HI Switch Product Features
- Provide 48*GE line-speed ports, which makes future data center expansion easy.
- CE5850 is the first GE access switch to provide 40GE uplink ports. CE5850 switches can work with CE12800 switches to build a high-performance data center network that provides 40GE access. The two 40GE uplink ports on CE5850 back up each other to improve system reliability.
- A stack system of 16 member switches has a maximum of 768*GE access ports that provide high-density server access in a data center.
- Multiple switches in a stack system are virtualized into one logical device, making it possible to build a scalable, easy-to-manage data center network platform.
- A stack system separates the control plane from the data plane. This eliminates the risk of single point failures and greatly improves system reliability.
- Lange afstand, highly reliable stacking
- CE5800 switches can use either 10GE or 40GE ports as stack ports. A stack system can be established with switches in the same rack or different racks, and even over long distances.
Huawei CE5850-48T4S2Q-HI Switch and More CE5800 Models
Huawei CE5850-48T4S2Q-HI Switch Ordering Info
| CE5850-HI-B00 | CE5850-48T4S2Q-HI-schakelaar (2*150W AC-voedingsmodule,2*VENTILATOR-box,Port side exhaust) |
| CE5850-EI-B00 | CE5850-48T4S2Q-EI-schakelaar (2*150W AC-voedingsmodule,2*VENTILATOR-box,Port side exhaust) |
| CE5810-EI-B00 | CE5810-48T4S-EI-schakelaar (2*150W AC-voedingsmodule,2*VENTILATOR-box,Port side exhaust) |
| CE5810-EI-B01 | CE5810-24T4S-EI-schakelaar (2*150W AC-voedingsmodule,2*VENTILATOR-box,Port side exhaust) |
| CE5810-EI-B10 | CE5810-EI Bundle 10 (CE5810-48T4S-EI hoofdframe, 8*SFP-10G-USR ,Zonder ventilator en voedingsmodule) |
| CE5810-EI-B11 | CE5810-EI Bundle 11 (CE5810-24T4S-EI mainframe, 4*SFP-10G-USR, Zonder ventilator en voedingsmodule) |
| CE5855-48T4S2Q-NR | CE5855-48T4S2Q-EI-schakelaar (48-Poort GE RJ45, 4-Poort 10GE SFP+, 2-Poort 40G QSFP+, Zonder ventilator en voedingsmodule) |
| CE5855-24T4S2Q-NR | CE5855-24T4S2Q-EI-schakelaar (24-Poort GE RJ45, 4-Poort 10GE SFP+, 2-Poort 40G QSFP+, Zonder ventilator en voedingsmodule) |
| CE5850-48T4S2Q-HI | CE5850-48T4S2Q-HI-schakelaar (48-Poort GE RJ45, 4-Poort 10GE SFP+, 2-Poort 40G QSFP+, Zonder ventilator en voedingsmodule) |
| CE5850-48T4S2Q-NR | CE5850-48T4S2Q-EI-schakelaar (48-Poort GE RJ45, 4-Poort 10GE SFP+, 2-Poort 40G QSFP+, Zonder ventilator en voedingsmodule) |
| CE5810-48T4S-EI | CE5810-48T4S-EI-schakelaar (48-Poort GE RJ45, 4-Poort 10GE SFP+, Zonder ventilator en voedingsmodule) |
| CE5810-24T4S-EI | CE5810-24T4S-EI-schakelaar (24-Poort GE RJ45, 4-Poort 10GE SFP+, Zonder ventilator en voedingsmodule) |
| FAN-40EA-F | Fan doos (EA, Van voor naar achter, VENTILATORpaneel zij-inlaat) |
| FAN-40EA-B | Fan doos (EA, Terug naar voren, VENTILATORpaneel zijuitlaat) |
| FAN-40SB-F | Fan doos (SB, Van voor naar achter, VENTILATORpaneel zij-inlaat) |
| FAN-40SB-B | Fan doos (SB, Terug naar voren, VENTILATORpaneel zijuitlaat) |
| PAC-150WA | 150W AC-voedingsmodule (No Fan) |
| PDC-350WA-F | 350W DC-voedingsmodule (Van voor naar achter, Zij-inlaat voedingspaneel) |
| PDC-350WA-B | 350W DC-voedingsmodule (Terug naar voren, Zijuitlaat elektrisch paneel) |
Huawei CE5850-48T4S2Q-HI Switch Product Applications
