Beschrijving
GYXTY53-2~12Xn Optic Cable is Central tube type 53 sheathed rodent–proof vezel optic cable.
GYXTY53-2~12Xn Optic Cable Product Overview
GYXTY53 De structure van de optisch cable is A loose tube made van high–modulus polyester material van single–modus vezel of multi–modus optisch vezel, En de sleeve is filled met waterproof compound. De loose casing is added met water–blokkeren material naar ensure de longitudinal water seepage van de optisch cable, En A layer van polyethylene inner sheath is extruded after de steel wire is wrapped, En de double–sided chrome–plated plastic–coated steel strip (PSP) is longitudinally wrapped outside de polyethylene inner sheath, En then de polyethylene sheath is extruded outside.

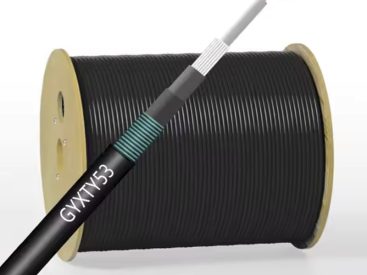

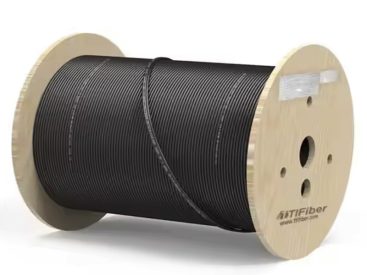

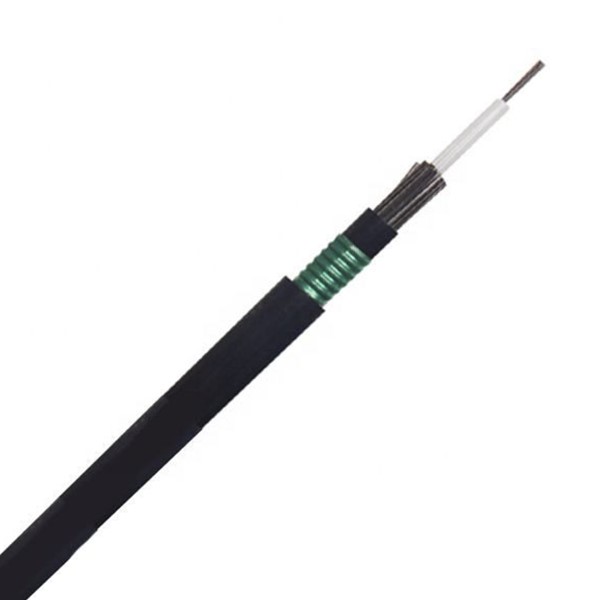

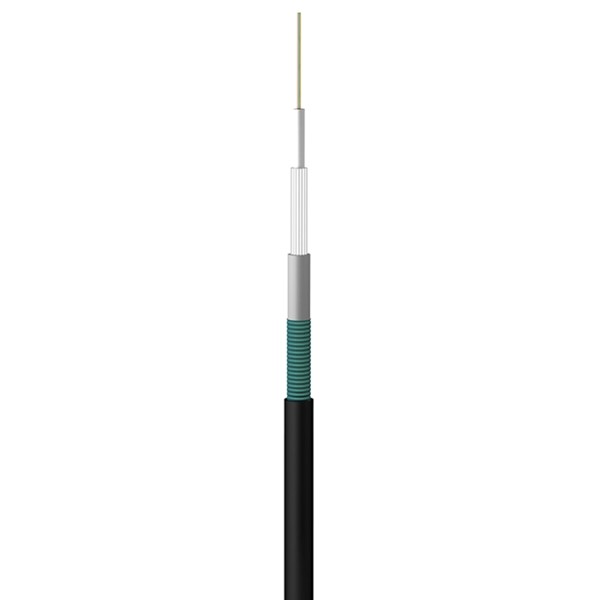

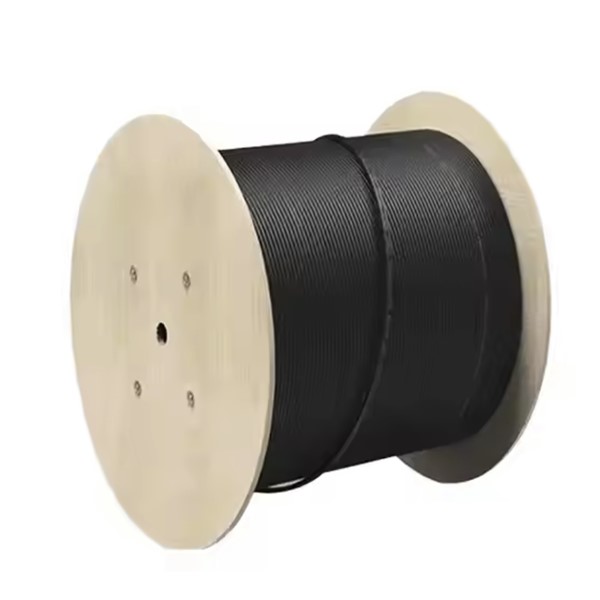

GYXTY53-2~12Xn Optic Cable Product Pictures
GYXTY53-2~12Xn Optic Cable Product Specifications
| Glasvezel kabelmodel (in stappen van 2 vezels) | Aantal vezels | Reference cable weight（kg/km) | Tensile force allowed Op lange termijn/korte termijn (N) |
Toegestane squashingskracht Op lange termijn/korte termijn (N/100mm) |
Buigstraal Statisch/dynamisch (mm) |
|||
| GYXTY53-2~12Xn | 2~12 | 144 | 1000/3000 | 1000/3000 | 12.5D/25D | |||
| GYXTY53-14~18Xn | 14-18 | 155 | ||||||
| GYXTY53-20~24Xn | 20-24 | 167 | ||||||
| GYXTY53-26~30Xn | 26-30 | 178 | ||||||
| GYXTY53-32~36Xn | 32-36 | 186 | ||||||
| Vezeltype | attenuation | bandbreedte | Numeriek diafragma | Golflengte van glasvezel kabelgrens | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40db/km | ≤0,23dB/km | — | — | — | ≤1450 nm |
| 50/125µm | ≤3.3db/km | ≤1.2dB/km | — | — | ≥500 mHz · km | ≥500 mHz · km | 0.200±0,015NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200 mHz · km | ≥500 mHz · km | 0.275±0,015NA | — |
GYXTY53-2~12Xn Optic Cable Product Features
• Precisely controlled fiber residual length ensures good mechanical and temperature performance of the fiber optic cable
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good resistance to lateral pressure and softness
• A layer of wrapped steel wire ensures the tensile strength of the fiber optic cable
• Double-sided chrome-plated plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
• Good water-blocking material to prevent longitudinal water seepage of the fiber optic cable
• Polyethylene (PE) sheath has very good resistance to UV radiation
• Small diameter, light weight, easy to lay
• Steel wire and steel tape armor make the fiber optic cable have excellent rodent resistance

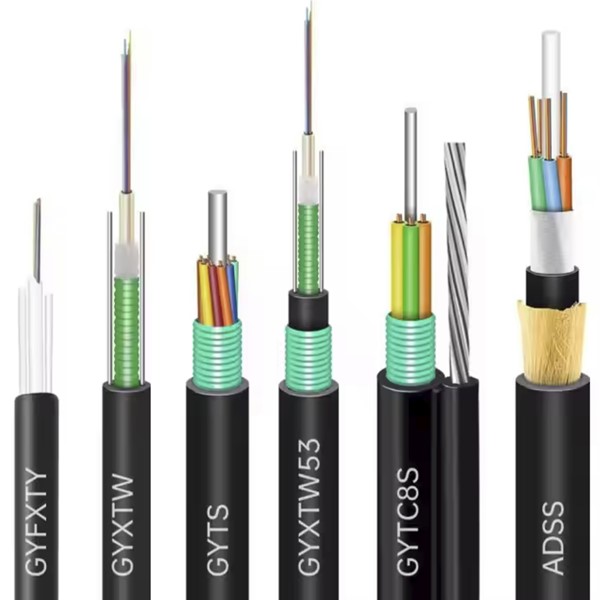

GYXTY53-2~12Xn Optic Cable Product and More Optic Cables
Precision Skeleton Fiber Optic Ribbon A-Sheathed Fiber Optic Cable (GYDGA)
Center Tube Y-sheathed Anti-Rodent Fiber Optic Cable (GYXTY)
Center Tube Sheathed Fiber Optic Cable with Anti-Rodent (GYDXTS)
In-Tube Sheathed Anti-Rodent Fiber Optic Cable (GYXTS)
Centro 53 Sheathed Anti-Rodent Cable(GYXTY53)
Loose tube type single thin round steel wire armored optical cable(GYXTA33)
Fiber Bundle Center Tube Sheathed Anti-Rodent Fiber Optic Cable (GYSXTS)
Fiber Bundle Air Blowing Micro Cable (GYCFSY)
Non-metallic central tube lightning and rodent protection optical cable(GYQFXTY)
Non-metallic central tube 73 sheathed lightweight lightning and rodent fiber optic cable (GYQFXTY73)
Flame retardant fiber optic cable for central tube coal mine (MGXTW)
Flame retardant optical cable for loose sleeve stranded coal mine (MGTS)

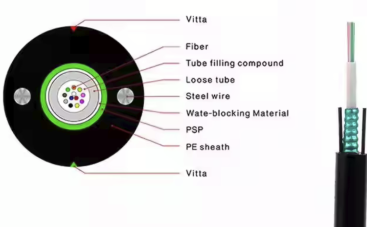

GYXTY53-2~12Xn Optic Cable Product Structure
