GYFTZY-86~96Xn Optic Cable is Loose sleeve stranded non–metallic reinforced kern non–armored flame retardant optisch cable
GYFTZY-86~96Xn Optic Cable Product Overview
The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high-modulus material, which is filled with a water-repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) tube (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.
Optical cables have become an indispensable part of modern communication infrastructure due to their advantages of high bandwidth, low loss, long-distance transmission ability, and anti-electromagnetic interference. With the development of technologies such as 5G, Internet of Things (IoT), and cloud computing, fiber optic cables are playing an increasingly important role in building high-speed and reliable communication networks.

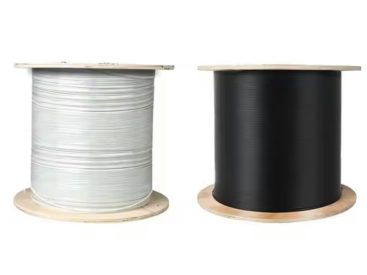

GYFTZY-86~96Xn Optic Cable Product Pictures
GYFTZY-86~96Xn Optic Cable Product Specifications
| Fiber optic cable model (in stappen van 2 vezels) |
Aantal vezels | Aantal omhulsels | Number of infill ropes | Referentiekabelgewicht (kg/km) | Trekkracht is toegestaan Op lange termijn/korte termijn (N) |
Toegestane squashingskracht Op lange termijn/korte termijn (N/100mm) |
Buigstraal Statisch/dynamisch (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Vezeltype | Attenuation （+20℃） | Bandbreedte | Numeriek diafragma | Golflengte van glasvezel kabelgrens | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0,36dB/km | ≤0,22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0,40db/km | ≤0,23dB/km | - | - | - | ≤1450 nm |
| 50/125µm | ≤3.3db/km | ≤1.2dB/km | - | - | ≥500 mHz · km | ≥500 mHz · km | 0.200± 0,015 al | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200 mHz · km | ≥500 mHz · km | 0.275± 0,015 al | - |
GYFTZY-86~96Xn Optic Cable Product Features
●Adopt “SZ“ twee–way lamination technologie
●Water-Blocking Paste filling iN the Process By Process, Water-Blocking iN the Whole Section
●Steel (Aluminum) With lap Bonding iS Reliable, high Strength, Anl torsional Without cracking
●De Residual length Of the Optical fiber iS controlled Stably
●After the cable iS formed, the Additional Attenuation Of the Optical fiber iS close tO zero, Anl the dispersion value does Not change
●Excellent environmental Performance, Applicable temperature Range iS –10°C~ 70°C
●It is suitable voor overhead, pijpleiding, direct burial En ander laying methods

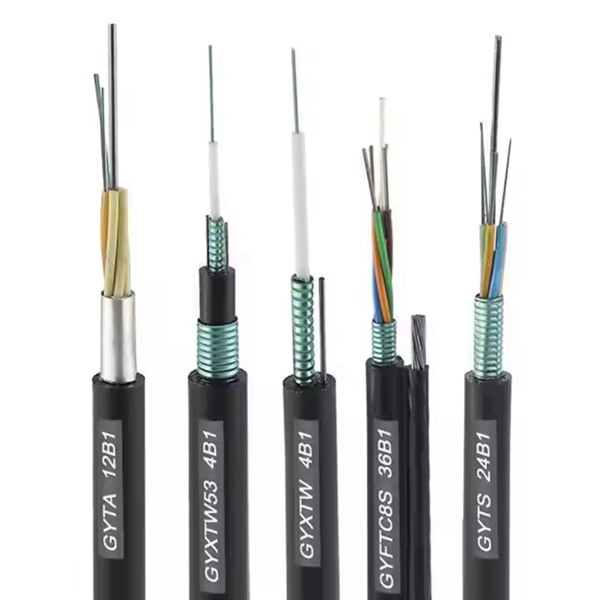

GYFTZY-86~96Xn Optic Cable Product And More Optic Cables
All-dielectric self-supporting cable (ADSS)
Fire Resistant Fiber Optic Cable (GJFZY53-FR)
Loose sleeve stranded dry fiber optic cable (DCFA)
Figuur 8 Fiber Optic Cable (GYTC8A)
Central Tube Light Armoured Fiber Optic Ribbon Cable (GYDXTW)
Central tube flame retardant fiber optic cable (GYXTZW)
Central tube type non-metallic non-armoured fiber optic cable (GYFXY)
Central tube unarmoured fiber optic cable (GYXY)
Central Tube Light Armoured Fiber Optic Cable (GYXS/GYXTW)
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
GYFTZY-86~96Xn Optic Cable Product Applications
●Long–distance communicatie, inter–office communicatie En optisch cable incoming
●It is especially suitable voor stroom systeem, multiple lightning En serious electromagnetic interference occasions, En can be used as A vezel optic cable
GYFTZY-86~96Xn Optic Cable Product Structure
