GYFTZA53-38~42Xn Optic Cable

Beschrijving

GYFTZA53-38~42Xn Optic Cable is Loose Tube Layer Stranded Non-metallic Reinforced Core Armored Flame-retardant Optical Cable

GYFTZA53-38~42Xn Optic Cable Product Overview

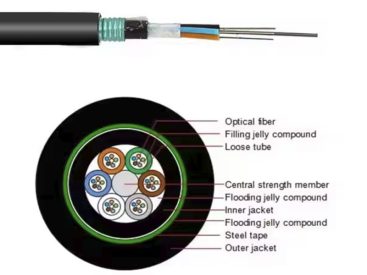

GYFTZA53 fiber optic cables are constructed by inserting a 250μm optical fiber into a loose tube made of high-modulus material filled with a waterproof compound. In the center of the core is a non-metallic reinforcing core (FRP), and for some core counts, a layer of polyethylene (PE) is squeezed on top of the non-metallic reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped into a cable
This construction makes GYFTZA53 cable an excellent choice for applications requiring flame resistance, moisture protection, and high mechanical performance in demanding outdoor settings.

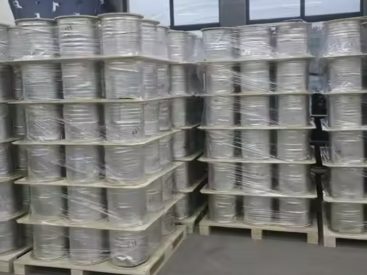

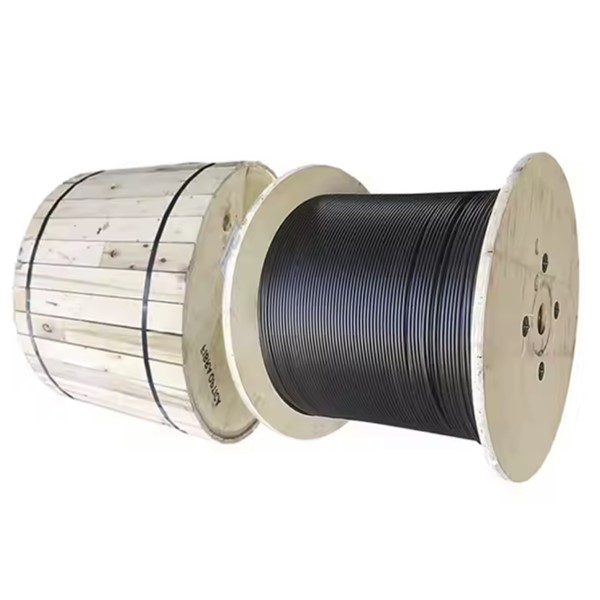

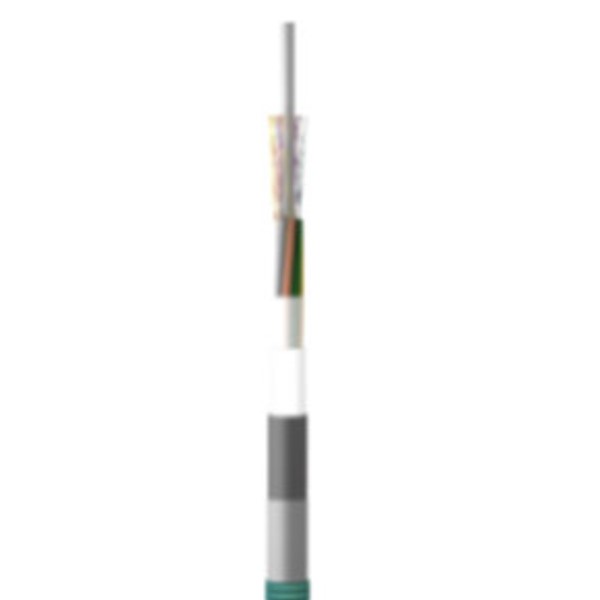

GYFTZA53-38~42Xn Optic Cable Product Pictures

GYFTZA53-38~42Xn Optic Cable Product Specifications

Fiber optic cable model (in stappen van 2 vezels)	Aantal vezels	Aantal omhulsels	Number of infill ropes	Reference cable weight （kg/km）	Trekkracht is toegestaan Op lange termijn/korte termijn (N)	Toegestane squashingskracht Op lange termijn/korte termijn (N/100mm)	Buigstraal Statisch/dynamisch (mm)
GYFTZA53-2~6Xn	2~6	1	7	275	1000/3000	1000/3000	12.5D/25D
GYFTZA53-8~12Xn	8~12	2	6	275
GYFTZA53-14~18Xn	14~18	3	5	275
GYFTZA53-20~24Xn	20~24	4	4	275
GYFTZA53-26~30Xn	26~30	5	3	275
GYFTZA53-32~36Xn	32~36	6	2	275
GYFTZA53-38~42Xn	38~42	7	1	275
GYFTZA53-44~48Xn	44~48	8	0	275
GYFTZA53-50~60Xn	50~60	5	3	290
GYFTZA53-62~72Xn	62~72	6	2	290
GYFTZA53-74~84Xn	74~84	7	1	290
GYFTZA53-86~96Xn	86~96	8	0	290
GYFTZA53-98~108Xn	98~108	9	1	327
GYFTZA53-110~120Xn	110~120	10	0	327
GYFTZA53-122~132Xn	122~132	11	1	384
GYFTZA53-134~144Xn	134~144	12	0	384
Vezeltype	Attenuation （+20℃）				Bandbreedte		Numerical aperture	Golflengte van glasvezel kabelgrens
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
G.652	-	-	≤0,36dB/km	≤0,22dB/km	-	-	-	≤1260nm
G.655	-	-	≤0,40db/km	≤0,23dB/km	-	-	-	≤1450 nm
50/125µm	≤3.3db/km	≤1.2dB/km	-	-	≥500 mHz · km	≥500 mHz · km	0.200± 0,015 al	-
62.5/125µm	≤3.5dB/km	≤1.2dB/km	-	-	≥200 mHz · km	≥500 mHz · km	0.275± 0,015 al	-

GYFTZA53-38~42Xn Optic Cable Product Features

• Exceptional Mechanical and Temperature Performance:

Engineered to perform reliably under mechanical stress and across a wide range of temperatures, making it suitable for various outdoor environments.

• Moisture-Resistant Aluminum Tape Coating:

Longitudinally wrapped coated aluminum tape provides effective moisture resistance, enhancing the cable’s durability in wet conditions.

• Double-Sided Corrugated Steel Tape (PSP) Armor:

The cable’s armor features double-sided coated steel tape, offering enhanced protection against moisture ingress and mechanical impacts, ensuring reliability in challenging environments.

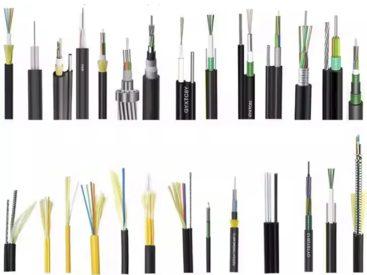

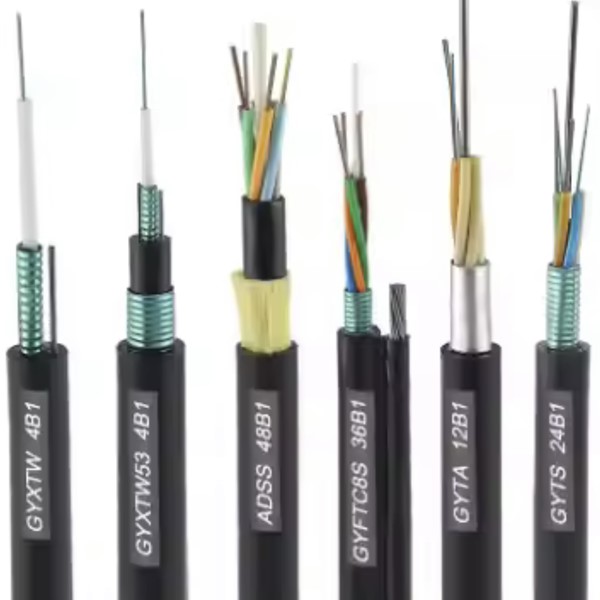

GYFTZA53-38~42Xn Optic Cable Product and More Optic Cables

Loose sleeve stranded light armored vezel strip cable (GYDTS)
Stranded loose jacket unarmoured fiber Optic cable (GYDTA)
Stranded Loose Jacket Nop-Metallic Reinforced Core Nop-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose Sleeve Stranded Reinforced core Armored flame Retardant Optical cable(GYTZA53)
Loose Sleeve Stranded Nop-Metallic Reinforced core Armored flame Retardant fiber Optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket Nop-Armoured flame Retardant fiber Optic cable (GYTZA)
Stranded loose Sleeve Nop-Metallic Reinforced core Armored fiber Optic cable (GYFTA53)
Stranded Nop-Metallic Reinforcing core Plain Armored fiber Optic cable (GYFTY53)
Stranded loose jacket Nop-Metallic Reinforced core unarmoured fiber Optic cable (GYFTA)
Loose Sleeve Stranded Nop-Metallic Reinforced core Optical cable (GYHTY)
Stranded loose jacket Nop-Metallic Reinforced core unarmoured fiber Optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored vezel optic cable (GYTA53 33)

GYFTZA53-38~42Xn Optic Cable Product Applications

• Urban Communication Networks:

Ideal for backbone and distribution networks in cities, where fire safety compliance is critical, and cables must endure urban environmental conditions.

• Industrial Zones:

Perfect for deployment in factories, refineries, and other industrial settings where potential fire hazards and mechanical stresses are common.

• Underground Duct Installations:

Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.

• Tunnel and Subway Systems:

Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.

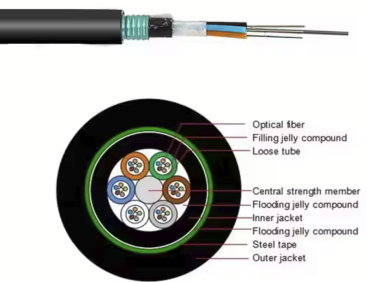

GYFTZA53-38~42Xn Optic Cable Product Structure
