विवरण
SIMCom SIM7500JE-PCIE Module is a LTE Cat 1 module withLTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc, and supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
SIMCom SIM7500JE-PCIE Module Product Overview
SIMCom SIM7500JE-PCIE Module adopts mini PCIE form factor. And it supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc, delivering maximum 10Mbps downlink rate and 5Mbps uplink rate. The module integrates multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, लिनक्स र एन्ड्रोइड आदि।) and software function. यसबाहेक, AT commands are compatible with SIM7600/SIM7600-H series modules. उनीहरु बाहेक, SIM7500-PCIE integrates main industrial standard interfaces, शक्तिशाली विस्तारको साथ, UART जस्ता प्रचुर मात्रामा इन्टरफेसहरू सहित, USB, GPIO. From them, it is suitable for main IoT applications such as telematics, निगरानी उपकरण र रिमोट निदान आदि.

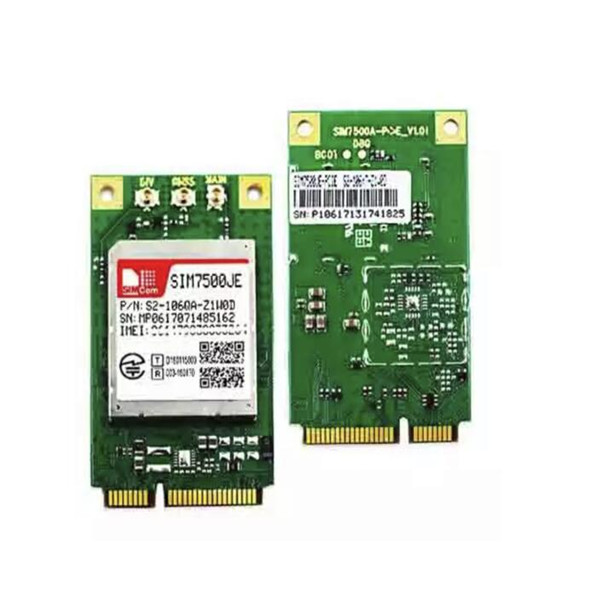

SIMCom SIM7500JE-PCIE Module Product Pictures
SIMCom SIM7500JE-PCIE Module Product Specifications
| ब्रान्ड | SIMCom | ||
| उत्पादन | SIM7500JE-PCIE | ||
| फारम कारक | Mini PCIE | ||
| आयामहरू(mm) | 50.8*30*5.35 | ||
| फ्रिक्वेन्सी ब्यान्डहरू | LTE-FDD | B1/B3/B8 | |
| WCDMA | |||
| तापक्रम | -40℃ ~ +85 ℃ | ||
| GNSS | ऐच्छिक | ||
| विद्युतीय सुविधाहरू | |||
| आपूर्ति भोल्टेज(वि) | 3.4~ 4.2 | ||
| शक्ति खपत(mA) | LTE | 1.6 | |
| WCDMA,DRX=9 | |||
| GSM, BS_PA_ | |||
| MFRMS = 2 | |||
| LTE(Mbps) | 10(DL)/5(UL) | ||
| प्रोटोकल | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||
| एन्ड्रोइड RIL | एन्ड्रोइड 5.0/6.0/7.0/8.0/9.0 | ||
| USB चालक | Microsoft Windows7/8/10Linux/Android | ||
| MBIM | Win8/Win10 | ||
| NDIS | लिनक्स/विन्डोज 7/8/10 | ||
| फर्मवेयर अपग्रेड | USB/FOTA | ||
| सिम कार्ड | 1.8V/3.0V | ||
| नियामक | TelecJATERoHSREACHSoftbank | ||
| वाहक | Softbank | ||
SIMCom SIM7500JE-PCIE Module Product Features
- बहु-नक्षत्र GNSS रिसीभर समर्थन*
- Mini-PCIE interface with strong compatibility
- प्रचुर मात्रामा सफ्टवेयर प्रकार्यहरू: फुट, LBS, TLS, VoLTE*
- LTE को लागी उपयुक्त, विश्वव्यापी कभरेजको साथ UMTS र GSM नेटवर्कहरू
- AT commands of the SIM7500-PCIE series are compatible with the SIM7600/SIM7600-H series modules
SIMCom SIM7500JE-PCIE Module Product and More Models
SIM7500A-PCIE Mini Pcie Form Factor
SIM7500AD-PCIE Mini Pcie Form Factor
SIM7500V-PCIE Mini Pcie Form Factor
SIM7500SA-PCIE Mini Pcie Form Factor
SIM7500E-PCIE Mini Pcie Form Factor
SIM7500JC-PCIE Mini Pcie Form Factor
SIM7500JE-PCE Mini Pcie Form Factor
SIMCom SIM7500JE-PCIE Module Product Applications
