PLC स्प्लिटर SC/UPC 1*16 घुसाउनुहोस् प्रकार
- विवरण
- जांच
- संलग्नक
विवरण
PLC स्प्लिटर SC/UPC 1*16 Insert Type is 1×16 PLC Fiber Optic Splitter Box SC/UPC Connector Insert Type Applied for optical networks
PLC स्प्लिटर SC/UPC 1*16 Insert Type Overview
PLC (Planar Lightwave Circuit) planar optical splitter is an integrated waveguide optical power distribution device based on quartz substrate, which has the characteristics of small size, wide working wavelength range, high reliability and good spectroscopic uniformity, especially suitable for passive optical networks (कल गर्दै, BPOON, GPON, आदि) to connect the central office and terminal equipment and realize the shunt of optical signals. There are currently 1×N and 2×N types. 1×N and 2×N splitters evenly input optical signals from single or double inlets into multiple outlets, or work backwards to merge multiple optical signals into a single or double fiber. PLC Splitters are available with 900µm loose tube single mode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.

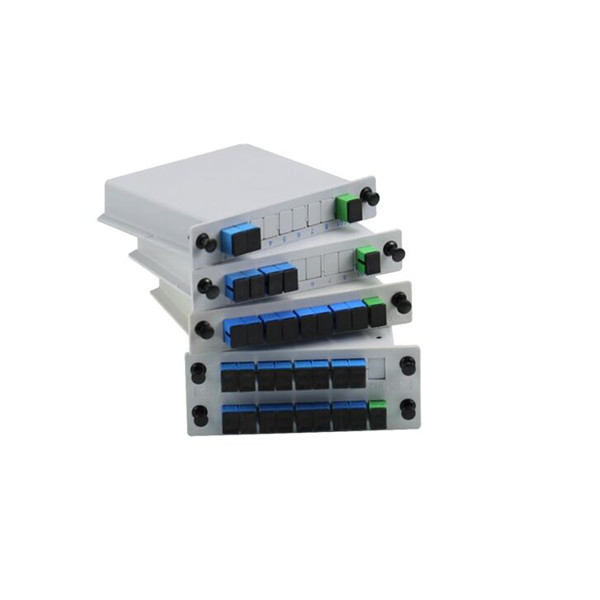

PLC स्प्लिटर SC/UPC 1*16 Insert Type Pictures
PLC स्प्लिटर SC/UPC 1*16 Insert Type Specifications
| Insert Type optical splitter parameters | ||||||||
| Operating wavelength (nm) | 1260nm～1650nm | |||||||
| फाइबर प्रकार | G657A1 or Customized | |||||||
| parameter | 1×२ | 1×4 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 | 1×128 |
| प्रविष्टि हानि (dB) (P/S class) (अधिकतम) | 4.1/4.3 | 7.4/7.6 | 10.5/10.8 | 12.3/12.5 | 13.8/14.0 | 16.8/17.2 | 20.8/21.3 | 23.8/24.2 |
| Insertion loss uniformity (dB) (अधिकतम) | 0.6 | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss (dB) (अधिकतम) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| फिर्ता घाटा (dB) (min.) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Directionality (dB) (मिनेट) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength-dependent loss (dB) (अधिकतम) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 1.2 |
| Temperature stability | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | 1 | 1.2 |
| (-40～85 ℃) (dB) | ||||||||
| Device Size (mm) (L×W×H) | 130×100
×25 |
130×100
×25 |
130×100
×25 |
130×100
×50 |
130×100
×50 |
130×100
×103 |
130×100
×205 |
N/A |
PLC स्प्लिटर SC/UPC 1*16 Insert Type Features
- Wide working wavelength
- कम सम्मिलन हानि
- Miniaturized design
- Comply with RoHS standard
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
PLC स्प्लिटर SC/UPC 1*16 Insert Type Applications
- Test Equipment
- Cable Television (केही)
- Fiber to The Point (FTTX)
- घरमा फाइबर (FTTH)
- Local Area Networks (LAN)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
PLC स्प्लिटर SC/UPC 1*16 Insert Type Topolgy
