विवरण
Huawei SFP-25G-SR Module is 25GBase-SR Optical Transceiver-SFP28-25G Multi-mode(850nm,0.1km,LC)
Huawei SFP-25G-SR Module Product Overview
Huawei SFP-25G-SR Module adopts hot-swappable SFP28 package, working wavelength is 850nm, it is a full-duplex transceiver module. Its maximum speed is up to 25.78Gbps, dual LC optical ports, and the transmission distance through multimode fiber can reach up to 70m (OM3) or 100m (OM4). SFP-25G-SR optical modules are mainly used in 25G data centers and 5G fronthaul CPRI/eCPRI networks. 25G network is an ideal solution for 10G network upgrade. On the one hand, 25G network is complementary to 100G network, but the cost is much lower than that of 100G network. On the other hand, compared with 10G network, 25G network requires ToR switches and cables. The number is less. हाल, SFP-25G-LR optical modules have been widely used in 25G data centers.

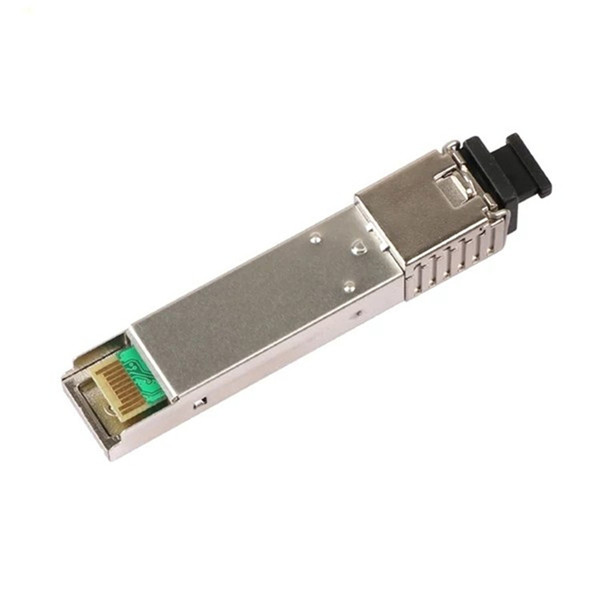

Huawei SFP-25G-SR Module Product Pictures
Huawei SFP-25G-SR Module Product Specifications
| वस्तु | विवरण |
| भाग नम्बर | 02311KNR |
| मोडेल | SFP-25G-SR |
| विवरण | 25GBase-SR अप्टिकल ट्रान्सीभर-SFP28-25G बहु-मोड(850nm,0.1km,LC) |
| सफ्टवेयर र हार्डवेयर विशेषताहरू | हार्डवेयर |
| Version support | V100R006C00 and later versions |
| ट्रान्सीभर फारम कारक | SFP28 |
| प्रसारण गति | 25GE |
| केन्द्र तरंगदैर्ध्य (nm) | 850 |
| मानक अनुपालन | 25GBase-SR |
| कनेक्टर प्रकार | LC |
| लागू केबल र अधिकतम प्रसारण दूरी | When the bit error rate (BER) is 10^-12: |
| मल्टीमोड फाइबर (OM3) (with diameter of 50 μm): 30 m | |
| मल्टीमोड फाइबर (OM4) (with diameter of 50 μm): 40 m | |
| When the BER is 5*10^-5: | |
| मल्टीमोड फाइबर (OM3) (with diameter of 50 μm): 70 m | |
| मल्टीमोड फाइबर (OM4) (with diameter of 50 μm): 100 m | |
| Modal bandwidth | मल्टीमोड फाइबर (OM3): 2000 MHz*km |
| मल्टीमोड फाइबर (OM4): 4700 MHz*km | |
| शक्ति हस्तान्तरण गर्नुहोस् (dBm) | -8.4 को +2.4 |
| अधिकतम प्राप्तकर्ता संवेदनशीलता (dBm) | -10.3 |
| ओभरलोड शक्ति (dBm) | 2.4 |
| विलुप्त हुने अनुपात (dB) | ≥ 2 |
| सञ्चालन तापमान | 0°C देखि 70°C (32°F देखि 158°F) |
| प्याक वजन(के। जि) | 1.2 |
| प्याक भोल्युम(m^3) | 0.0003 |
| प्याक आयाम(D*W*H मिमी) | 125*75*35 |
| नेट आयाम(D*W*H मिमी) | 56*13*8 |
| छुट कोटि | अप्टिकल मोड्युल |
| उत्पादन लाइन | इन्टरप्राइज नेटवर्क |
| उप उत्पादन परिवार | Core Center |
Huawei SFP-25G-SR Module Product Features
- Adopt hot-swappable SFP28 package
- Full duplex transceiver module
- 850nm VCSEL laser and PIN photodetector
- Comply with SFP28 MSA and IEEE 802.3 25GBASE-SR Ethernet standards
- The maximum rate is up to 25.78125Gbps
- The transmission distance can be up to 70m (OM3) or 100m (OM4) through multimode fiber
- The maximum power consumption is less than 1W
- Dual LC optical ports
- Commercial grade operating temperature range from 0 को 70 degrees Celsius
- Power supply voltage 3.3V
- Comply with RoHS environmental standards (नेतृत्व-मुक्त)
Huawei SFP-25G-SR Module and More 25G SFP Modules
Huawei SFP-25G-SR Module Product Applications
