विवरण
Huawei ME909s-821A V2 MiniPCIe Module is a high-quality 4G module based on the Hisilicon Balong711 platform, suitable for industrial routers, energy and power, security monitoring and other industries.
Huawei ME909s-821A V2 MiniPCIe Module Product Overview
Huawei ME909s-821A V2 MiniPCIe Module is a high-quality 4G module based on the HiSilicon Balong711 platform. The module is suitable for a wide temperature range, strong anti-electromagnetic interference ability, good signal transmission power consistency, high sensitivity, strong reliability, and superior performance. Various harsh environments. It is suitable for industrial routers, energy and power, security monitoring and other industries
The ME909s series are Cat4 LTE industrial-grade M2M wireless modules, which follow the Huawei LGA packaging standard and are compatible with the MU709s series pin-to-pin.At the same time, it has a standard Mini PCIe form, which allows customers to choose more flexibility.
The ME909s series is the first choice for applications in automotive, tracking, औद्योगिक राउटरहरू, security monitoring, and industrial flat panels. ME909s is divided into two sub-models, which are distinguished as follows according to the frequency band requirements of different shipping areas:
ME909s-120, supports overseas markets such as Europe, Asia Pacific, Latin America, आदि. ME909s-821a, support the Chinese market

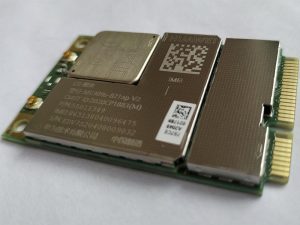

Huawei ME909s-821A V2 MiniPCIe Module Product Pictures
Huawei ME909s-821A V2 MiniPCIe Module Product Specifications
| वस्तु | विवरण |
| ब्रान्ड | Huawei |
| मोडेल | ME909s-821A V2 MiniPCIe |
| Chip Platform | Balong711 |
| प्रोसेसर | Cortex-A9 600MHz(Modem)DSP 300MHz(अडियो) |
| भण्डारण | Flash 1Gb+RAM 1Gb |
| Physical properties | MiniPCle |
| साइज(LxWxH) | 5 1mmx30.4mmx3.52mm |
| वजन | 12g |
| सञ्चालन तापमान | Normal working temperature:-30C~+75C Extended operating temperature: -40C~+85“C |
| भण्डारण तापमान | -40″C~+95C |
| आर्द्रता | RH5%~RH95% |
| भोल्टेज | 3.2V~4.2V (Typical 3.8V) |
| Ferquency | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 UMTS: B1/B5/B8/B9GSM/GPRS/EDGE:900/1800MHz |
| एस एम एस | Support MO and MT, support TEXT and PDU format |
| डाटा | LTE FDD: UL 50 Mbit/s; DL 150 Mbit/s @20M BW cat4 LTE TDD:UL 10Mbits;DL 112Mbits@20M BWcat4(Uplink downlinkconfiguration2, 1:3) DC-HSPA+: UL 5.76Mbit/s; DL 42Mbit/s WCDMA: UL 384kbitys; DL 384kbitys EDGE:UL 236.8kbit/s; DL 236.8kbit/s GPRS DL: UL 85.6kbits; DL 85.6kbit/s |
| प्रमाणीकरण | CCC/RoHS/WEEE |
Huawei ME909s-821A V2 MiniPCIe Module Product Features
- UART URATO is an 8-wire serial port, used for communication and AT command input.
- URAT2 for Linux debug log output
- 0 Support USB 2.0, USB slave
- USIM External SIM card
- PCM Support PCM digital audio signal
- GPIO Support multiple channels, other unused control pins can also be used as GPIOUsed for antenna detection, temperature reading,
- JTAG Provide JTAG (Joint Test Action Group) इन्टरफेस
- Antenna Main set antenna, Diversity antenna
Huawei ME909s-821A V2 MiniPCIe Module and More M2M Unit
ME909S-821apV2
ME909s-821 LGA
ME909s-120 Mini PCIe
ME909s 120 V2 Mini PCIe
ME909s-120 LGA
ME909u-521 Mini PCIe
ME909u-521 LGA
MU709s-6 Mini PCIe
MU709s-6 LGA
MU709s-2 Mini PCIe
MU709s-2 LGA
MU609 Mini PCIe
MU609 LGA
Huawei ME909s-821A V2 MiniPCIe Module Product Applications
