AOC QSFP56-200G-AOC-5M is 200G-QSFP56-Active Optical Cable-5m

AOC QSFP56-200G-AOC-5M Product Overview

200G QSFP56 AOC active optical cable uses four-channel PAM4 modulation technology, with a transmission rate of up to 56Gbps per lane, and is mostly used in high-performance computing data centers, with a transmission distance of 70m (OM3)/100m (OM4).

200G AOC active optical cables are mainly in QSFP-DD and QSFP56 packages, both with a wavelength of 850nm. The 200G QSFP-DD AOC modulation mode is NRZ, which is applied to 200G Ethernet with a transmission distance of 1-100M. The 200G QSFP56 AOC is modulated in PAM4 mode. Compared with NRZ, PAM4 is a more efficient modulation technique that can effectively improve bandwidth utilization, and the throughput of PAM4 is twice that of NRZ at the same baud rate.

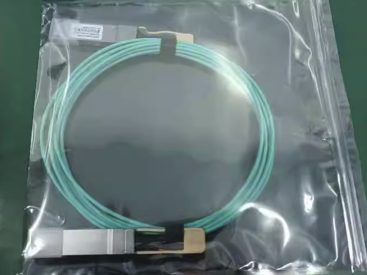

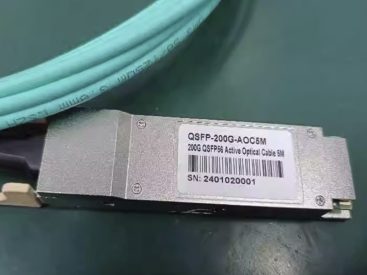

AOC QSFP56-200G-AOC-5M Product Pictures

AOC QSFP56-200G-AOCAOC QSFP56-200G price and specs

AOC QSFP56-200G price ycictAOC QSFP56-200G ycict

AOC QSFP56-200G-AOC-5M Product Specifications

वस्तु विवरणहरू
Part code 02314KLK
मोडेल QSFP56-200G-AOC-5M
description 200G-QSFP56-Active Optical Cable-5m-AOC
Connector X1 QSFP56
Connector X2 QSFP56
Cable length [m] 5m
सञ्चालन तापमान [°C] 0°C~70°C

AOC QSFP56-200G-AOC-5M Product Features

  • Available in a hot-swappable QSFP56 package
  • 850nm VCSEL laser array and PIN photodetector array
  • Built-in CDR circuitry (DSP) for receive and transmit channels
  • Compliant with QSFP56 MSA, CMIS, and IEEE 802.3cd 200GBASE-SR4 Ethernet standards
  • Maximum speed up to 212.5Gbps (4 x 50G PAM4)
  • Supports 103.125Gbps (4 x 25G NRZ) as required
  • Transmission distances up to 70m (OM3) or 100m (OM4/OM5) via multimode fiber
  • The maximum power consumption is less than 5W
  • 200GAUI-4 electrical interface
  • Built-in digital diagnostics to monitor DDM functions
  • Commercial Grade Operating Temperature: 0°C-70°C
  • The operating voltage is 3.3V
  • RoHS अनुरूप

AOC QSFP56-200G-AOC-5M Product and More 200G AOC Cables

QSFP56-200G-AOC-5M
QSFP56-200G-AOC-10M
QSFP56-200G-AOC-20M
QSFP56-200G-AOC-30M
QSFP-2QSFP56100G-AOC10M

AOC QSFP56-200G-AOC-5M Product Applications
