Penerangan

Pemisah PLC SC/UPC 1*2 Mini Type is 1 x 2 PLC Fiber Splitter, Mini Module, 900μm, SC/UPC, Single mode applied for optical network

Pemisah PLC SC/UPC 1*2 Mini Type Overview

Planar optical wave circuit (PLC) splitter is an optical power management device manufactured using quartz optical waveguide technology. It has small size, kebolehpercayaan yang tinggi, wide operating wavelength range and good channel-to-channel uniformity and is widely used in PON networks to realize optical signal power distribution. We offer a full range of 1×N distributors, tailored to specific applications. All products meet the requirements of GR-1209-CORE-2001 and GR-1221-CORE-1999.

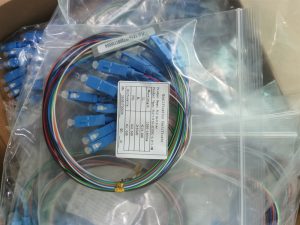

Pemisah PLC SC/UPC 1*2 Mini Type Picture

PLC Splitter SC UPC Mini Type stell tube price ycictPemisah PLC SC/UPC 1*2 Mini Type stell type price and specs ycict

Pemisah PLC SC/UPC 1*2 Mini Type price and specs ycictPLC Splitter SC UPC Mini Type blockless type 1*n 2*n price and specs ycict

Pemisah PLC SC/UPC 1*2 Mini Type Specifications

Mini type 1*N PLC Splitter Datasheet
Operating wavelength (nm) 1260nm-1650nm
Fiber type G657A1 or customer specified
Port configuration 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Kehilangan sisipan (dB) (P/S grade) maks 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21 23.8/24.2
Loss uniformity (dB) maks 0.6 0.6 0.8 1.2 1.5 2 2.5
Kehilangan Bergantung Polarisasi (dB) maks 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Kerugian Pulangan (dB) min 55 55 55 55 55 55 55
Directivity (dB) min 55 55 55 55 55 55 55
Kehilangan Bergantung Panjang Gelombang (dB) maks 0.5 0.5 0.5 0.8 0.8 1 1.2
Temperature stability(-40~85 °C)(dB) maks 0.5 0.5 0.5 0.8 0.8 1 1.2
Dimensi (mm) (L×W×H) 60×7×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6 T/A

PLC Splitter SC UPC SC APC Mini Type blockless type 1*n 2*n price and specs ycict

Mini type 2*N PLC Splitter Datasheet
Operating wavelength (nm) 1260nm-1650nm
Fiber type G657A1 or customer specified
Port configuration 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Kehilangan sisipan (dB) (P/S grade) maks 4.2 7.6 10.8 14 17.5 21 24.5
Loss uniformity (dB) maks 0.9 1.1 1.2 1.5 1.8 2.2 2.5
Kehilangan Bergantung Polarisasi (dB) maks 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Kerugian Pulangan (dB) min 55 55 55 55 55 55 55
Directivity (dB) min 55 55 55 55 55 55 55
Kehilangan Bergantung Panjang Gelombang (dB) maks 0.5 0.5 0.5 0.8 0.8 1 1.2
Temperature stability(-40~85 °C)(dB) maks 0.5 0.5 0.5 0.8 0.8 1 1.2
Dimensi (mm) (L×W×H) 60×7×4 60×7×4 60×7×4 80×12×4 80×20×6 100×40×6 T/A

PLC Splitter 1*n 2*n SC UPC SC APC price and specs ycict

Remark:
1. Kehilangan sisipan tidak termasuk penyesuai.
2. Kehilangan sisipan meningkat sebanyak 0.2dB untuk setiap penyesuai tambahan.
3. Suhu bekerja (°C):-40~85.
4. Suhu penyimpanan (°C) -40~85.
5. Kehilangan sisipan, korelasi antara panjang gelombang, pulangan kerugian, nisbah kepupusan dan saiz pakej boleh ditentukan oleh pelanggan.

Pemisah PLC SC/UPC 1*2 Mini Type Features

  • Kehilangan sisipan yang rendah
  • High isolation
  • Low polarization-dependent losses
  • Compact and compact design
  • Good channel-to-channel uniformity
  • Wide operating wavelength range
  • Kebolehpercayaan dan kestabilan yang tinggi

Pemisah PLC SC/UPC 1*2 Mini Type Applications

  • Fiber-to-the-home systems
  • Rangkaian Optik Pasif (PON)
  • CATV system
  • Communication equipment

Aplikasi jenis mini PLC Splitter ycict
