Penerangan

Huawei S5735-S48T4XEZ-V2 Switch is standard gigabit Ethernet switch with 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE, One extended slot and 1+1 sandaran bekalan kuasa. It provides GE electrical & 2.5GE optical downlink ports, 10GE uplink ports and one extended slot

Huawei S5735-S48T4XEZ-V2 Switch Product Overview

The product offers Forwarding performance: 168 Mps, and Switching capacity*: 224 Gbps/520 Gbps. It is developed based on next-generation high-performing hardware and software platform. S5735-S48T4XEZ-V2 supports Huawei Easy Operation, a solution that provides zero-touch deployment, replacement of faulty devices without additional configuration, Penggunaan berasaskan USB, batch device configuration, dan naik taraf jauh kelompok.
Keupayaan memudahkan penggunaan peranti, naik taraf, penyediaan perkhidmatan, dan operasi pengurusan dan penyelenggaraan yang lain, dan juga sangat mengurangkan O&M kos. S5735-S-V2 can be managed using SNMP v1/v2c/v3, CLI, sistem pengurusan rangkaian berasaskan web, atau SSH v2.0. Selain itu, ia menyokong RMON, berbilang hos log, pengumpulan statistik trafik pelabuhan, dan analisis kualiti rangkaian, yang memudahkan pengoptimuman dan pembinaan semula rangkaian. It can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

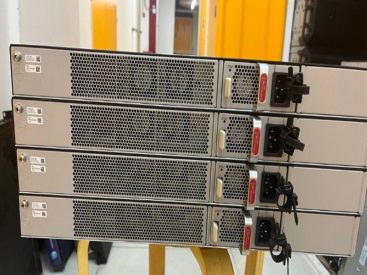

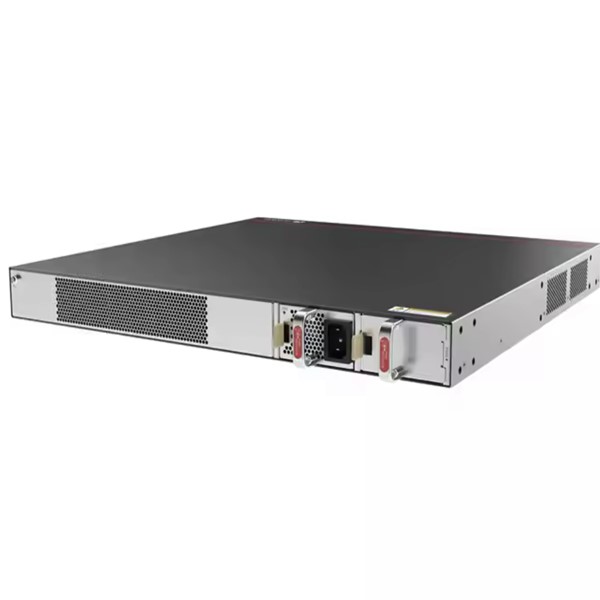

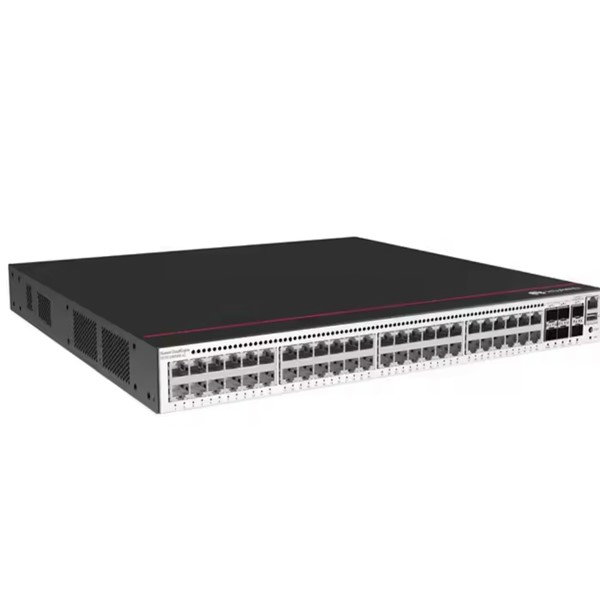

Huawei S5735-S48T4XEZ-V2 Switch Product Pictures

S5735-S48T4XEZ-V2 HuaweiS5735-S48T4XEZ-V2 Huawei S5735 switch

S5735-S48T4XEZ-V2 Huawei S5735-S-V2 overviewHuawei S5735-S24T4XEZ-V2 Switch S5735

Huawei S5735-S48T4XEZ-V2 Switch Product Specifications

Model Produk S5735-S24T4XEZ-V2 S5735-S24P4XEZ-V2 S5735-S48T4XEZ-V2 S5735-S48P4XEZ-V2 S5735-S48T4XE-XA-V2
Prestasi Pemajuan 132 Mps 132 Mps 168 Mps 168 Mps 168 Mps
Kapasiti Penukaran2 176 Gbps/520 Gbps 176 Gbps/520 Gbps 224 Gbps/520 Gbps 224 Gbps/520 Gbps 224 Gbps/520 Gbps
Pelabuhan Tetap 24 x 10M/100M/1000M Base-T ports, 4 x 10GE SFP+ port , 2 x port tindanan 12GE 48 x 10M/100M/1000M Base-T ports , 4 x 10GE SFP+ port +, 2 x port tindanan 12GE
PoE Disokong, PoE+ Disokong, PoE+
Jenis Bekalan Kuasa 1+1 sandaran bekalan kuasa 3 x power modules, Sandaran bekalan kuasa N+1 1+1 sandaran bekalan kuasa 3 x power modules, Sandaran bekalan kuasa N+1 2 x built-in AC power modules, 1+1 sandaran bekalan kuasa
Expansion Slots One expansion slot
Ciri MAC Alamat MAC auto-pembelajaran dan penuaan
Statik, dinamik, dan entri alamat MAC lubang hitam
Penapisan paket berdasarkan alamat MAC sumber
Pengehadan pembelajaran alamat MAC berasaskan antara muka
VLAN 4094 VLAN
VLAN Suara
MUX VLAN
Tugasan VLAN berdasarkan alamat MAC, protokol, Subnet IP, dasar, dan pelabuhan
Penghalaan IP Laluan statik, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Saling kendali VBST (serasi dengan PVST/PVST+/RPVST)
LNP (serupa dengan DTP)

Huawei S5735-S48T4XEZ-V2 Switch Product Features

  • S5735-S-V2 supports intelligent stack (iStack). Teknologi ini menggabungkan berbilang suis menjadi suis logik. Suis ahli dalam tindanan melaksanakan sandaran lebihan untuk meningkatkan kebolehpercayaan peranti dan menggunakan pengagregatan pautan antara peranti untuk meningkatkan kebolehpercayaan pautan.
  • S5735-S-V2 provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. CampusInsight menganalisis data rangkaian berdasarkan algoritma pengenalan kesalahan pintar, memaparkan status rangkaian masa nyata dengan tepat, secara berkesan menyempadankan dan mengesan kerosakan tepat pada masanya, dan mengenal pasti masalah rangkaian yang menjejaskan pengalaman pengguna, menjamin pengalaman pengguna dengan tepat.
  • S5735-S-V2 supports Open Programmability System (OPS), an open programmable system based on the Python language. IT administrators can program the O&M functions of a CloudEngine S5735-S-V2 switch through Python scripts to quickly innovate functions and implement intelligent O&M.

Huawei S5735-S48T4XEZ-V2 Switch Product and More Models

S5735-S24T4XE-V2 24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 1+1 sandaran bekalan kuasa

S5735-S24T4XEZ-V2 24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 1+1 sandaran bekalan kuasa

S5735-S24P4XE-V2 24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 3 bekalan kuasa, N+1 power supply backup PoE+

S5735-S24P4XEZ-V2 24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 3 bekalan kuasa, N+1 power supply backup PoE+

S5735-S24U4XE-V2 24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 3 bekalan kuasa, N+1 power supply backup PoE++(90W)

S5735-S24T8J4XE-XA-V2 24 x 10/100/1000Base-T port, 8 x 2.5 Port GE SFP+(or 2*10GE SFP+ ports), 4 x 10 Port GE SFP+, 2 x 12GE stack ports Built-in dual AC power, 1+1 sandaran bekalan kuasa

S5735-S24T8J4XEZ-V2 24 x 10/100/1000Base-T port, 8 x 2.5 Port GE SFP+(or 2*10GE SFP+ ports), 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 1+1 sandaran bekalan kuasa

S5735-S24P8J4XEZ-V2 24 x 10/100/1000Base-T port, 8 x 2.5 Port GE SFP+(or 2*10GE SFP+ ports), 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 3 bekalan kuasa, Sandaran bekalan kuasa N+1

S5735-S48T4XE-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 1+1 sandaran bekalan kuasa

S5735-S48T4XE-XA-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GE stack ports Built-in dual AC power, 1+1 sandaran bekalan kuasa

S5735-S48T4XEZ-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 1+1 sandaran bekalan kuasa

S5735-S48P4XE-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 3 bekalan kuasa, N+1 power supply backup PoE+

S5735-S48P4XEZ-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GE stack ports One extended slot 3 bekalan kuasa, N+1 power supply backup PoE+

S5735-S48U4XE-V2 48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE 3 bekalan kuasa, N+1 power supply backup PoE++(90W)

Huawei S5735-S48T4XEZ-V2 Switch Ordering Info

Model Penerangan Produk
CloudEngine S5735S24T4XE-V2 CloudEngine S5735-S24T4XE-V2 (24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE, tanpa modul kuasa)
CloudEngine S5735S24T4XEZ-V2 CloudEngine S5735-S24T4XEZ-V2 (24*10/100/1000Port BASE-T, 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S24P4XE-V2 CloudEngine S5735-S24P4XE-V2 (24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE, PoE+, tanpa modul kuasa)
CloudEngine S5735S24P4XEZ-V2 CloudEngine S5735-S24P4XEZ-V2 (24*10/100/1000Port BASE-T (PoE+), 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S24U4XE-V2 CloudEngine S5735-S24U4XE-V2 (24 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x12GE stack ports, PoE++, tanpa modul kuasa)
CloudEngine S5735S24T8J4XE-XA-V2 CloudEngine S5735-S24T8J4XE-XA-V2 (24*10/100/1000Port BASE-T, 8*2.5Port GE SFP (or 2*10GE SFP+ ports), 4*10Port GE SFP+, 2*12GE stack ports, dual built-in AC power)
CloudEngine S5735S24T8J4XEZ-V2 CloudEngine S5735-S24T8J4XEZ-V2 (24*10/100/1000Port BASE-T, 8*2.5Port GE SFP (or 2*10GE SFP+ ports), 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S24P8J4XEZ-V2 CloudEngine S5735-S24P8J4XEZ-V2 (24*10/100/1000Port BASE-T (PoE+), 8*2.5Port GE SFP (or 2*10GE SFP+ ports), 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S48T4XE-V2 CloudEngine S5735-S48T4XE (48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE, tanpa modul kuasa)
CloudEngine S5735S48T4XE-XA-V2 CloudEngine S5735-S48T4XE-XA-V2 (48*10/100/1000Port BASE-T, 4*10Port GE SFP+, 2*12GE stack ports, dual built-in AC power)
CloudEngine S5735S48T4XEZ-V2 CloudEngine S5735-S48T4XEZ-V2 (48*10/100/1000Port BASE-T, 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S48P4XE-V2 CloudEngine S5735-S48P4XE-V2 (48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x port tindanan 12GE, PoE+, tanpa modul kuasa)
CloudEngine S5735S48P4XEZ-V2 CloudEngine S5735-S48P4XEZ-V2 (48*10/100/1000Port BASE-T (PoE+), 4*10Port GE SFP+, 2*12GE stack ports, expansion card slot, tanpa modul kuasa)
CloudEngine S5735S48U4XE-V2 CloudEngine S5735-S48U4XE-V2 (48 x 10/100/1000Base-T port, 4 x 10 Port GE SFP+, 2 x 12GEstack ports, PoE++, tanpa modul kuasa)
PAC80S12-CN 80 Modul kuasa AC W
PAC180S12-CN 180 Modul kuasa AC W
PDC240S12-CN 240 Modul kuasa W DC
PAC600S12-PB 600W AC &240 Modul Kuasa V DC
PDC1K2S12-CE 1200 Modul kuasa W DC
PAC600S56-EB 600 Modul kuasa W AC PoE
PAC1000S56-EB 1000 Modul kuasa W AC PoE
PDC1000S56-EB 1000 Modul kuasa W DC PoE
N1-S57S-M-Lic S57XX-S Siri Asas SW,Setiap Peranti
N1-S57S-M-SnS1Y S57XX-S Siri Asas SW,SnS,Setiap Peranti,1tahun
N1-S57S-F-Lic N1-CloudCampus,Asas,Siri S57XX-S,Setiap Peranti
N1-S57S-F-SnS1Y N1-CloudCampus,Asas,Siri S57XX-S,SnS,Setiap Peranti,1tahun
N1-S57S-A-Lic N1-CloudCampus,Maju,Siri S57XX-S,Setiap Peranti
N1-S57S-A-SnS1Y N1-CloudCampus,Maju,Siri S57XX-S,SnS,Setiap Peranti,1tahun
N1-S57S-FToA-Lic N1-Naik Taraf-Yayasan kepada Termaju,S57XX-S,Setiap Peranti
N1-S57S-FToA-SnS1Y N1-Naik Taraf-Yayasan kepada Termaju,S57XX-S,SnS,Setiap Peranti,1tahun

Huawei S5735-S48T4XEZ-V2 Switch Product Applications
