Huawei S5735-L8P4S-QA1 Switch

Penerangan

Huawei S5735-L8P4S-QA1 Switch is a compact all-gigabit switch with 8 x 10/100/1000Base-T port, 4 x GE SFP ports AC power supply PoE+.

Huawei S5735-L8P4S-QA1 Switch Product Overview

Huawei S5735-L8P4S-QA1 Switch is a compact all-gigabit switch with 8 x 10/100/1000Base-T port, 4 x GE SFP ports AC power supply PoE+ Forwarding performance: 18 Mpps dan kapasiti Penukaran: 24 Gbps/336 Gbps. The product is based on the next-generation high-performance hardware and Huawei’s unified VRP (Versatile Routing Platform) software platform, rangkaian Ethernet yang fleksibel, and various security controls. Layer routing protocol, with higher performance and richer processing capabilities. The switcs are fanless, quiet and energy-saving. So Huawei S5735-L8P4S-QA1 Switch can be widely used in noise-sensitive business scenarios, and meet the needs of customers in the office, pendidikan, medical and other industries .

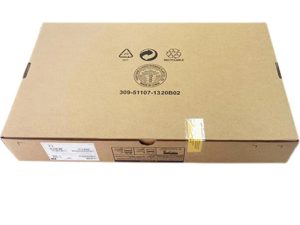

Huawei S5735-L8P4S-QA1 Switch Product Pictures

Huawei S5735-L8P4S-QA1 Product Specifications

item	Spesifikasi
Jenama	Huawei
Model	S5735-L8P4S-QA1
Pelabuhan	8 x 10/100/1000Base-T port, 4 x GE SFP ports AC power supply PoE+.
Ketinggian casis [U]	1 U
Berat tanpa pembungkusan [kg(lb)]	2.41 kg (5.31 lb)
Berat dengan pembungkusan [kg(lb)]	4.06 kg (8.95 lb)
Penggunaan kuasa biasa [W]	26.3 W
Pelesapan haba biasa [BTU/jam]	89.74 BTU/jam
MTBF [tahun]	66.56 tahun
MTTR [jam]	2 jam
Ketersediaan	>0.99999
Bunyi bising pada suhu biasa (kuasa akustik) [dB(A)]	Tanpa bunyi bising (tiada peminat), < 30
Bunyi bising pada suhu biasa (tekanan akustik) [dB(A)]	Tanpa bunyi bising (tiada peminat), < 20
Suhu operasi jangka pendek [°C(°F)]	Tidak disokong
Suhu penyimpanan [°C(°F)]	–40°C hingga +70°C (–40°F hingga +158°F)
Kelembapan relatif operasi jangka panjang [RH]	5% kepada 95%, tidak terkondensasi
Ketinggian operasi jangka panjang [m(kaki)]	0-5000 m (0-16404 kaki)
Ketinggian simpanan [m(kaki)]	0-5000 m (0-16404 kaki)
Mod bekalan kuasa	Penyesuai kuasa
Voltan masukan berkadar [V]	Input AC: 100 V AC ke 240 V AC, 50/60 Hz
Arus input maksimum [A]	2:00 pagi
Ingatan	512 MB
Memori kilat	512 MB
Pelabuhan konsol	RJ45
Pelabuhan Pengurusan Eth	Tidak disokong
USB	Tidak disokong
Perlindungan lonjakan pelabuhan perkhidmatan [kV]	Mod biasa: ±7 kV
Perlindungan lonjakan bekalan kuasa [kV]	±4 kV in differential mode and ±4 kV in common mode
Jenis peminat	tiada
Mod pelesapan haba	Pelesapan haba semulajadi
Julat voltan masukan [V]	Input AC: 90 V AC ke 290 V AC; 47 Hz kepada 63 Hz
Suhu operasi jangka panjang [°C(°F)]	–5°C to +45°C (23°F hingga 113°F) pada ketinggian 0 kepada 1800 m (0 kepada 5905.51 kaki)
Dimensi dengan pembungkusan (H x W x D) [mm(dalam.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 dalam. x 18.31 dalam. x 14.96 dalam.)
RTC	Tidak disokong
input RPS	Tidak disokong
Penggunaan kuasa maksimum [W]	Without PoE: 28 W
	Full PoE load: 159 W (PoE: 114 W)
Pelesapan haba maksimum [BTU/jam]	Without PoE: 95.54
	Full PoE load: 543.89
Pensijilan	pensijilan EMC
	Pensijilan keselamatan
	Pensijilan pembuatan

Huawei S5735-L8P4S-QA1 Switch Product Features

• Huawei S5735-L8P4S-QA1 Switch supports the Flow function. Ia menggunakan kaedah yang ditakrifkan dalam piawaian sFlow untuk mengambil sampel trafik yang melaluinya dan menghantar trafik sampel kepada pengumpul dalam masa nyata. Statistik trafik yang dikumpul digunakan untuk menjana laporan statistik, membantu perusahaan mengekalkan rangkaian mereka.
• PoE Kekal: Apabila suis PoE tidak normal Power-off atau versi perisian dinaik taraf, bekalan kuasa kepada PD tidak terganggu. Keupayaan ini memastikan bahawa PD tidak dimatikan semasa but semula suis.
• PoE pantas: PoE switches can supply power to PDs within seconds after they are powered on. This is different from common switches that generally take 1 kepada 3 minutes to start to supply power to PDs. When a PoE switch reboots due to a power failure, the PoE switch continues to supply power to the PDs immediately after being powered on without waiting until it finishes reboot. This greatly shortens the power failure time of PDs.

Huawei S5735-L8P4S-QA1 Switch and More Related Models

S5735-L8T4S-QA1 (8*10/100/1000Port BASE-T, 4*Port GE SFP, kuasa AC,Tanpa kipas)

S5735-L8P4S-QA1 (8*10/100/1000Port BASE-T, 4*Port GE SFP, PoE+, kuasa AC, Tanpa kipas)

S5735-L24T4S-QA1 (24*10/100/1000Port BASE-T, 4*Port GE SFP, kuasa AC, Tanpa kipas)

S5735-L24T4X-QA1 (24*10/100/1000Port BASE-T, 4*10Port GE SFP+, kuasa AC, Tanpa kipas)

S5735-L8T4S-A1 (8*10/100/1000Port BASE-T, 4*Port GE SFP, kuasa AC)

S5735-L8P4S-A1 (8*10/100/1000Port BASE-T, 4*Port GE SFP, PoE+, kuasa AC)

S5735-L8T4X-A1 (8*10/100/1000Port BASE-T, 4*10Port GE SFP+, kuasa AC)

S5735-L8P4X-A1 (8*10/100/1000Port BASE-T, 4*10Port GE SFP+, PoE+, kuasa AC)

S5735-L24T4S-A1 (24*10/100/1000Port BASE-T, 4*Port GE SFP, kuasa AC)

S5735-L24P4S-A1 (24*10/100/1000Port BASE-T, 4*Port GE SFP, PoE+, kuasa AC)

S5735-L24T4X-A1 (24*10/100/1000Port BASE-T, 4*10Port GE SFP+, kuasa AC)

S5735-L24T4X-D1 (24*10/100/1000Port BASE-T, 4*10Port GE SFP+, kuasa DC)

S5735-L24P4X-A1 (24*10/100/1000Port BASE-T, 4*10Port GE SFP+, PoE+, kuasa AC)

S5735-L48T4S-A1 (48*10/100/1000Port BASE-T, 4*Port GE SFP, kuasa AC)

S5735-L48P4S-A1 (48*10/100/1000Port BASE-T, 4*Port GE SFP, PoE+, kuasa AC)

S5735-L48T4X-A1 (48*10/100/1000Port BASE-T, 4*10Port GE SFP+, kuasa AC)

S5735-L48P4X-A1 (48*10/100/1000Port BASE-T, 4*10Port GE SFP+, PoE+, kuasa AC)

S5735-L12T4S-A (12 x 10/100/1000BASE-T port, 4 x port GE SFP, kuasa AC)

S5735-L12P4S-A (12 x 10/100/1000BASE-T port, 4 x port GE SFP, PoE+, kuasa AC)

S5735-L24T4S-A (24 x 10/100/1000BASE-T port, 4 x port GE SFP, kuasa AC)

S5735-L24P4S-A (24 x 10/100/1000BASE-T port, 4 x port GE SFP, PoE+, kuasa AC)

S5735-L24T4X-A (24 x 10/100/1000BASE-T port, 4 x 10 Port GE SFP+, kuasa AC)

S5735-L24T4X-D (24 x 10/100/1000BASE-T port, 4 x 10 Port GE SFP+, kuasa DC)

S5735-L24P4X-A (24 x 10/100/1000BASE-T port, 4 x 10 Port GE SFP+, PoE+, kuasa AC)

S5735-L48T4S-A (48 x 10/100/1000BASE-T port, 4 x port GE SFP, kuasa AC)

S5735-L48T4X-A (48 x 10/100/1000BASE-T port, 4 x 10 Port GE SFP+, kuasa AC)

S5735-L48P4X-A berkas (48 x 10/100/1000BASE-T port, 4 x 10 Port GE SFP+, PoE+, 1*1000Modul kuasa AC W PoE)

S5735-L32ST4X-A (24 x port GE SFP, 8 *10/100/1000Pangkalan-T, 4 x 10 Port GE SFP+, kuasa AC)

S5735-L32ST4X-D (24 x port GE SFP, 8 *10/100/1000Pangkalan-T, 4 x 10 Port GE SFP+, kuasa DC)

Huawei S5735-L8P4S-QA1 Switch Product Applications
