Huawei MPSC 10G Uplink

Penerangan

Huawei MPSC 10G Uplink IS 4 GE/10GE upstream transmission ports interface board and supports load sharing. Secara lalai, MA5800 menghubungkan ke rangkaian huluan melalui papan kawalan

Huawei MPSC 10G Uplink Product Overview

H901MPSC is the main control unit board, and the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management. H901MPSC transfers key management and control information through the master-slave serial port, in-band channel and business board to complete the configuration, management and control of the entire product, while achieving simple routing protocols and other functions.
Support load sharing at the forwarding level
Maintain serial port CON and environmental monitoring serial port ESC share an interface, support local maintenance and environmental monitoring access
Provide maintenance network port ETH, support local and remote maintenanc

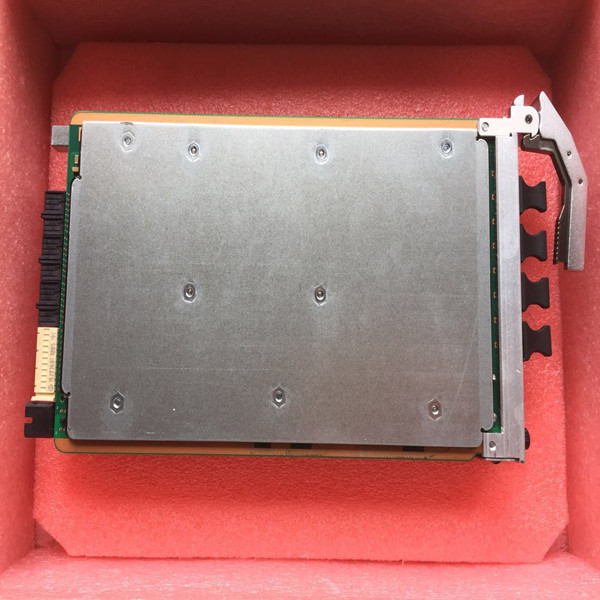

Huawei MPSC 10G Uplink Product Pictures

Huawei MPSC 10G Uplink Product Specifications

Huawei MPSC 10G Uplink Product Features

Huawei MPSC Board is a super control unit board for optical access

MPSC Board is the core for system control and service switching and aggregation and is used for MA5800-X2 subracks

• Supports active/standby switchover at the control plane
• Supports load sharing mode at the forwarding plane, doubling processing performance
• Supports ISSU, saving the upgrade interruption time
• Supports synchronization Ethernet
• Supports 1588v2
• Supports interfaces CON (RJ-45)/ESC (RJ-45), ETH (RJ-45)
• Supports Communication Interfaces L/A 0 to L/A 3 (4 x SFP+/SFP 10GE/GE ports)

Huawei MPSC 10G Uplink Product Applications
