Penerangan
Huawei CE6880-24S4Q2CQ-EI Switch is located in high-density 10G access in the data center, helping enterprises and operators to build data center network platforms for the cloud computing era, and can also be used for the core or aggregation of campus networks.
Huawei CE6880-24S4Q2CQ-EI Switch Product Overview
Huawei CloudEngine 6880-24S4Q2CQ-EI Switch is Huawei’s next-generation high-performance, high-density, low-latency 10GE/25GE Ethernet switches for data centers and high-end campuses. Huawei CloudEngine 6880-24S4Q2CQ-EI Switch adopts an advanced hardware structure to provide high-density 10GE/25GE port access and supports 40GE/100GE uplink ports. It supports rich data center features and high-performance stacking, and the air duct direction can be flexibly selected.

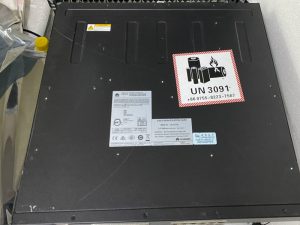

Huawei CE6880-24S4Q2CQ-EI Switch Product Pictures
Huawei CE6880-24S4Q2CQ-EI Switch Specifications
| barang | CloudEngine 6881-48S6CQ | CloudEngine 6880-24S4Q2CQ-EI |
| Pelabuhan Pautan Bawah | 48 x 10 GE SFP+ | 24 x 10 GE SFP+ |
| Pelabuhan Uplink | 6 x 40/100 GE QSFP28 | 4 x 40 GE QSFP+ and 2 x 40 GE/100 GE QSFP28 |
| Kapasiti Penukaran | 2.16 Tbit/s | 1.2 Tbit/s |
| Kadar Pemajuan | 940 Mps | 406 Mps |
| Penampan | 42 MB | 16.5 MB |
| Kebolehpercayaan | LACP | |
| Mikrosegmentasi | ||
| BFD berasaskan perkakasan | ||
| O&M | Telemetri | Telemetri |
| Netstream | Netstream | |
| ERSPAN+ | ERSPAN | |
| iPCA | iPCA | |
| Ciri Pusat Data | VXLAN penghalaan dan penyambungan | VXLAN penghalaan dan penyambungan |
| BGP EVPN | BGP EVPN | |
| iStack1 and M-LAG | iStack1 and M-LAG | |
| SFC | NSH yang ditakrifkan IETF | |
| Penggunaan Kuasa Maksimum | 380 W | 224 W |
| Bekalan Kuasa | AC: 600 W | AC: 600 W |
| DC: 350 W | ||
| Voltan Kendalian | AC: 90 V kepada 290 V | AC: 90 V kepada 290 V |
| DC: -38.4 V kepada -72 V | ||
Huawei CE6880-24S4Q2CQ-EI Switch Features
- CloudEngine 6881 siri menyediakan sehingga 48 x port 10GE, membenarkan akses pelayan 10GE berketumpatan tinggi dan evolusi yang lancar.
- CloudEngine 6881 siri menyediakan sehingga 6 x 100GE QSFP28 port. Setiap port QSFP28 juga boleh digunakan sebagai satu port QSFP+ 40GE, menyediakan fleksibiliti dalam rangkaian. Port 40GE/100GE pautan atas boleh disambungkan ke CloudEngine 16800 atau CloudEngine 12800 suis siri untuk membina platform rangkaian tidak menyekat.
- A stack system of 16 member switches has a maximum of 768 x 10GE access ports that provide high-density server access in a data center.
- Multiple switches in a stack system are virtualized into one logical device, making it possible to build a scalable and easyto-manage data center network platform.
- A stack system separates the control plane from the data plane. This eliminates the risk of single points of failure and greatly improves system reliability.
- CloudEngine 6881 series can use service ports as stack ports. A stack system can be established with switches in the same rack or different racks, and even over long distances.
- Service and stack bandwidths can be allocated based on the network scale to ensure that network resources are used more efficiently.
- CloudEngine 6881 series support multichassis link aggregation group (M-LAG), yang membolehkan pautan berbilang suis digabungkan menjadi satu untuk melaksanakan sandaran pautan peringkat peranti.
- Suis dalam sistem M-LAG semuanya berfungsi dalam keadaan aktif untuk berkongsi trafik dan menyandarkan satu sama lain, enhancing system reliability.
- Switches in an M-LAG system can be upgraded independently. Semasa naik taraf, suis lain dalam sistem mengambil alih pemajuan trafik untuk memastikan perkhidmatan tidak terganggu.
- M-LAG menyokong dwi-homing ke Ethernet, VXLAN, dan rangkaian IP, membenarkan rangkaian yang fleksibel
Huawei CE6880-24S4Q2CQ-EI Switch Ordering Info
| Kerangka utama | |
| CE6881-48S6CQ | CE6881-48S6CQ switch (48*10G SFP+, 6*100G QSFP28, without fan and power modules) |
| CE6881-48S6CQ-B | CE6881-48S6CQ-B switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake) |
| CE6881-48S6CQ-F | CE6881-48S6CQ-F switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) |
| Fan Tray | |
| Model | Penerangan |
| KIPAS-031A-F | Kotak kipas (F,Pengambilan sisi panel kipas) |
| KIPAS-031A-B | Kotak kipas (B,Ekzos sisi panel kipas) |
| Kuasa | |
| Model | Penerangan |
| PAC600S12-CF | 600Modul Kuasa W AC(Hadapan ke belakang,Pengambilan sisi panel kuasa) |
| PAC600S12-CB | 600Modul Kuasa W AC(Kembali ke Depan, Ekzos sisi panel kuasa) |
| Perisian | |
| N1-CE68LIC-CFMM | Lesen N1-CloudFabric Management SW untuk CloudEngine 6800(N1-CE68LIC-CFMM software is applicable to Non-SDN scenario, includes basic software functions and VXLAN) |
| N1-CE68CFMM-SnS1Y | N1-CE68CFMM-SnS1Y,Lesen N1-CloudFabric Management SW untuk CloudEngine 6800 |
| N1-CE68LIC-CFFD | Lesen N1-CloudFabric Foundation SW untuk CloudEngine 6800 (N1-CE68LIC-CFFD software is |
| applicable to single DC scenarios, includes basic software functions, VXLAN, dan | |
| Telemetri,Agile Controller-DCN management of each fixed device,Fabricinsight Intelligent network analysis basic function) | |
| N1-CE68CFFD-SnS1Y | Lesen N1-CloudFabric Foundation SW untuk CloudEngine 6800-SnS-1 Tahun (The annual fee for the CloudFabric N1 package ) |
| N1-CE68LIC-CFAD | Lesen N1-CloudFabric Advanced SW untuk CloudEngine 6800 (N1-CE68LIC-CFAD software is applicable to multiple DC scenarios, includes all the functions of the N1-CE68LIC-CFFD software package and NSH function) |
| N1-CE68CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine -SnS -1 tahun (The annual fee for the CloudFabric N1 package) |
Huawei CE6880-24S4Q2CQ-EI Switch Product Applications
