Penerangan
Huawei CE6860-HAM Switch is next-generation 10GE/25GE/50GE access switch with 48 x 25GE SFP28 interfaces or 48 x 50GE SFP56 interfaces, 8 x 100GE QSFP28 interfaces, atau 8 x 200GE QSFP56 interfaces
Huawei CE6860-HAM Switch Overview
CE 6860-HAM is next-generation 10GE/25GE/50GE access switch with 48 x 25GE SFP28 interfaces or 48 x 50GE SFP56 interfaces, 8 x 100GE QSFP28 interfaces, atau 8 x 200GE QSFP56 interfaces. The switch provides high performance, kebolehpercayaan yang tinggi, low latency, and easy O&M.for high-reliability multicast networking in data centers. It adopts advanced hardware structure design with high-density 10GE/25GE/50GE port access, and 40GE/100GE/200GE uplink ports. And can flexibly select the direction of the air duct Supporting large-scale 32K multicast groups, extremely fast convergence of single point of failure, zero service impact, and zero production interruption. Sebagai tambahan, the model could meet the 3rd generation bandwidth evolution and flexible server access to meet the capacity expansion in the next 10 tahun.

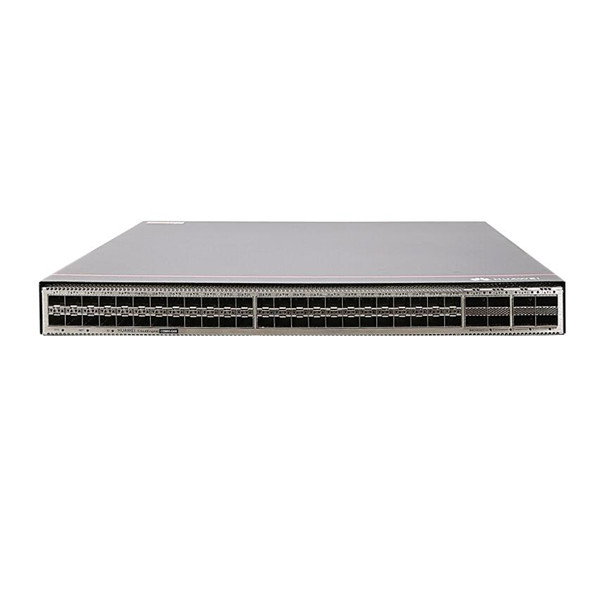

Huawei CE6860-HAM Switch Pictures
Huawei CE6860-HAM Switch Specifications
| Parameter | CloudEngine 6860-HAM |
| Pelabuhan Pautan Bawah | 48 x 10/25 GE SFP28 atau 48 x 50 GE SFP56 |
| Pelabuhan Uplink | 8 x 40/100 GE QSFP28 atau 8 x 200 GE QSFP56 |
| Kapasiti Penukaran | 8 Tbit/s |
| Prestasi Pemajuan | 2175 mpps |
| Penampan | 64 MB |
| Kebolehpercayaan | LACP |
| BFD berasaskan perkakasan | |
| O&M | Telemetri |
| Netstream | |
| ERSPAN+ | |
| AnyFlow | |
| Intelligent Traffic Analysis | |
| Acara Paket | |
| Ciri Pusat Data | 32k multicast entries, MoFRR |
| VXLAN penghalaan dan penyambungan | |
| BGP EVPN | |
| M-LAG 3.0 | |
| Penggunaan Kuasa Maksimum | 48 x 50 PRU + 8 x 200 PRU: 619 W |
| 48 x 25 PRU + 8 x 100 PRU: 544 W | |
| Bekalan Kuasa | 600W AC&240V DC |
| 1000W -48V DC | |
| 1200W HVDC | |
| Voltan Kendalian | AC: 90V～290V |
| DC: -38.4V～-72V | |
| 240V HVDC: 190V～290V | |
| 380V HVDC: 190V～400V |
Huawei CE6860-HAM Switch Features
- Supporting cross-device link aggregation M-LAG (Kumpulan Pengagregatan Pautan Multichassis), yang boleh merealisasikan pengagregatan pautan antara berbilang peranti, thereby transferring link reliability from the single board level to the device level.
- Sistem berbilang aktif, on the one hand, the dual-return system realizes traffic load sharing, on the other hand, the system is multi-active, hot backup protection, and the system is more reliable;
- Each node of M-LAG can be upgraded independently, and other nodes undertake service forwarding during the upgrade process, achieving zero service interruption;
- Flexible networking, ordinary Ethernet, VXLAN and IP network dual return access can adopt M-LAG access mode.
- Supporting NetConf protocol, can be docked with Huawei iMaster NCE-Fabric;
- Supporting Ansible automated management and O&M tools to achieve unified provisioning of physical and virtual networks.
- Can be deeply integrated by mainstream cloud platforms (including commercial cloud platforms and open source cloud platforms) and third-party Controllers, supporting flexible customization and automatic management of networks.
Huawei CE6860-HAM Switch and More CE6800
CloudEngine 6857E-48S6CQ “48*10GE SFP+ 6*40/100GE QSFP28 “
CloudEngine 6857F-48S6CQ “48*10GE SFP+ 6*40/100GE QSFP28 “
CloudEngine 6857F-48T6CQ 48*10GE Base-T 6*40/100GE QSFP28
CloudEngine 6865E-48S8CQ 48*10/25GE SFP28 8*40/100GE QSFP28
CloudEngine 6881-48S6CQ 48 x 10GE SFP+ port dan 6 x 100GE QSFP28 port
CloudEngine 6881-48T6CQ 48*10G RJ45, 6*100G QSFP28
Enjin Awan 6881H-48S6CQ 48*10 GE SFP+ 6*40/100 GE QSFP28
Enjin Awan 6881H-48T6CQ 48*10 GE Base-T dan 6*40/100 GE QSFP28
CloudEngine 6870-48S6CQ-EI-A 48*10 GE SFP+ 6*40/100 GE QSFP28
CloudEngine 6863-48S6CQ 48*10/25 GE SFP28 6*40/100 GE QSFP28
CloudEngine 6863E-48S6CQ 48*10/25 GE SFP28 6*40/100 GE QSFP28
Enjin Awan 6863H-48S6CQ 48*25 GE SFP+ 6*40/100 GE QSFP28
CloudEngine 6866-48S8CQ-P 48*10/25 GE SFP28 atau 48 x 50 GE SFP56 8*40/100 GE QSFP28 atau 8 x 200 GE QSFP56
CloudEngine 6860-HAM 48*10/25 GE SFP28 atau 48 x 50 GE SFP56 8*40/100 GE QSFP28 atau 8 x 200 GE QSFP56
CloudEngine 6820H-48S6CQ 48*10 GE SFP+ 6*40/100 GE QSFP28
Huawei CE6860-HAM Switch Ordering Info
| CE6860-HAM | CE6860-HAM Switch (48*25GE SFP28, 8*100GE QSFP28 without Power Fan) (CM) |
| CE6860-HAM-B | CE6860-HAM switch (48*25GE SFP28, 8*100GE QSFP28, 2* Bekalan kuasa AC, 4* fan box, port side air intake) (CM) |
| CE6860-HAM-F | CE6860-HAM switch (48*25GE SFP28, 8*100GE QSFP28, 2* Bekalan kuasa AC, 4* fan box, port side air outlet) (CM) |
| KIPAS-031A-F | Kotak kipas (F, fan box panel side air intake) CE6860-HAM |
| KIPAS-031A-B | Kotak kipas (B, fan box panel side air outlet) CE6860-HAM |
| PAC600S12-EF | 600Modul kuasa AC W (front and rear air ducts, power supply panel side air intake) CE6860-HAM |
| PAC600S12-EB | 600Modul kuasa AC W (rear front air duct, power supply panel side air outlet) CE6860-HAM |
| PDC1000S12-DF | 1000Modul kuasa W DC (front and rear air ducts, power supply panel side air intake) CE6860-HAM |
| PDC1000S12-DB | 1000Modul bekalan kuasa W DC (rear front air duct, power supply panel side air outlet) CE6860-HAM |
| PHD1K2S12-DB | 1200W high voltage DC power supply module (rear front air duct, power supply panel side air outlet) CE6860-HAM |
| CE68-RTU-24XS | CloudEngine6800 24*25GE port enables RTU |
| CE68-RTU-U24S | CloudEngine 6800 24*25GE upgrade to 24*50GE capacity upgrade RTU |
| CE68-RTU-U8CQ | CloudEngine 6800 8*100GE upgrade to 8*200GE capacity upgrade RTU |
| N1-CE68LIC-CFFD | N1-CE6800 switch CloudFabric Foundation package |
| N1-CE68CFFD-SnS1Y | N1-CE6800 Switch CloudFabric Foundation Package – Subscription and Support – tahun |
| N1-CE68LIC-CFAD | N1-CE6800 switch CloudFabric Advanced package |
| N1-CE68CFAD-SnS1Y | N1-CE6800 Switch CloudFabric Advanced Package – Subscription and Support – tahun |
| N1-CE68LIC-CFPM | N1- CloudEngine 6800 Switch CloudFabric Premium package |
| N1-CE68CFPM-SnS1Y | N1- CloudEngine 6800 Switch CloudFabric Premium Package – Subscription and Support – tahun |
| N1-CE68LIC-SEC | N1-CloudEngine 6800 Switch Security Feature Pack |
| N1-CE68SEC-SnS1Y | N1-CloudEngine 6800 Switch Security Feature Pack – Subscription and Support – tahun |
| N1-CE68LIC-TCPAC | N1-CloudEngine 6800 Switch TCP Acceleration Scenario Value-Added Package |
| N1-CE68TCPAC-SnS1Y | N1-CloudEngine 6800 Switch TCP Acceleration Scenario Value-Added Package – Subscript |
| N1-CE-F-LIC-DM | N1-CloudEngine Digital Maps Feature Pack – tetap |
| N1-CEFDM-SnS1Y | N1-CloudEngine Digital Map Base Package, Subscription and Support-year per device box |
| N1-CE-F-LIC-AFP1KVM | N1-CloudEngine Network Flow Analytics value-added package per 1000VM-Fixed |
| N1-CEFAFP1KVM-SnS1Y | N1-CloudEngine Network Flow Analytics value-added package per 1000VM, per device in a box – Subscription and Support-year-Electroni |
| N1-CE68UPG-F-A | N1-CloudEngine 6800 Data Center Network Software License Upgrade Package: Asas kepada Maju |
| N1-CE68UGFA-SnS1Y | N1-CloudEngine 6800 Data Center Networking Software License Upgrade Package: Foundation to Advanced-Subscription and Support-year |
| N1-CE68UPG-A-P | N1-CloudEngine 6800 Data Center Network Software License Upgrade Package: Lanjutan kepada Premium |
| N1-CE68UGAP-SnS1Y | N1-CloudEngine 6800 Data Center Networking Software License Upgrade Package: Advanced to Premium-Subscription and Support-year |
Huawei CE6860-HAM Switch Applications
