Penerangan
HG8040H FTTH is an indoor Optical Network Terminal (ONT) used in Huawei’s FTTH solution with 4 GE Port
HG8040H FTTH Product Overview
HG8040H FTTH is a bridging-type ONT used in the Huawei all-optical access solution. This model implements ultra-broadband access through the GPON technology. And offers 4 pelabuhan GE. The high-performance forwarding capability gives the service experience of data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

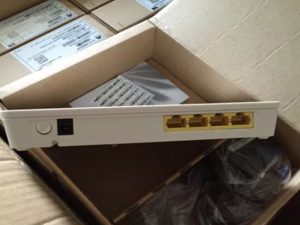

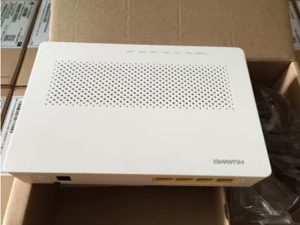

HG8040H FTTH Product Pictures
HG8040H FTTH Product Specifications
| Model | HG8040H |
| Pelabuhan | 4PRU |
| Dimensi (H x W x D) (mm) | 176 mm x 138.5 mm x 28 mm |
| Berat badan | < 500 g |
| Suhu Operasi | 0°C hingga +40°C |
| Kelembapan operasi | 5% RH kepada 95% RH (tidak berkondensasi) |
| Input penyesuai kuasa | 100–240 V AC, 50–60 Hz |
| Bekalan kuasa sistem | 11–14 V DC, 1 A |
| Penggunaan kuasa statik | 4 W |
| Penggunaan kuasa maksimum | 7.5 W |
| Penunjuk | POWER/PON/LOS/LAN |
HG8040H FTTH Product Features
- Kelas B+
- Sensitiviti penerima: -27dBm
- Panjang gelombang: AS 1310 nm, DS 1490 nm
- Penapis penyekat panjang gelombang (WBF)
- Pemetaan fleksibel antara GEM Port dan TCONT
- GPON: consistent with the SN or password
- authentication defined in G.984.3
- FEC dua arah
- SR-DBA dan NSR-DBA
- Tag VLAN berasaskan port Ethernet dan penyingkiran teg
- 1:1 VLAN, N:1 VLAN, atau penghantaran telus VLAN
- QinQ VLAN
- Hadkan bilangan alamat MAC yang dipelajari
- Pembelajaran alamat MAC
- Local switching/isolation based on Ethernet ports
- Transparent transmission of IPv6 packets at Layer 2
- L2 forwarding: 1G uplink, 2G pautan bawah
- Variable-length OMCI messages
- Active/Passive rogue ONT detection and isolation
- PPPoE/DHCP simulation testing
- Ethernet port rate limitation
HG8040H FTTH Product and More Related Models
| Spesifikasi | Port sisi pengguna | Dimensi | Network-side Ports |
| HG8010H | 1 PRU | 90 mm x 82 mm x 27 mm | GPON |
| HG8040H | 4 PRU | 176 mm x 138.5 mm x 28 mm | GPON |
| HG8110H | 1 PRU + 1 PERIUK | 134 mm x 115 mm x 27 mm | GPON |
| HG8240H | 4 PRU + 2 PERIUK | 176 mm x 138.5 mm x 28 mm | GPON |
| HG8242H | 4 PRU + 2 PERIUK + 1 beberapa | 220 mm x 160 mm x 32 mm | GPON |
| HG8245H | 4 PRU + 2 PERIUK + 1 USB + Wi-Fi | 176 mm x 138.5 mm x 28 mm | GPON |
| HG8245Q2 | 4 PRU + 2 PERIUK + 2 USB + 2.4G and 5G Wi-Fi | 285 mm x 174 mm x 70 mm | GPON |
| HG8247H | 4 PRU + 2 PERIUK + 1 USB + Wi-Fi + 1 beberapa | 220 mm x 160 mm x 32 mm | GPON |
| HN8055Q | 4 PRU + 1 x 10 PRU + 2.4G and 5G Wi-Fi + 2 USB | 238 mm x 190 mm x 26 mm | XG-PON |
| HN8245Q | 4 PRU + 2 PERIUK + 2.4G and 5G Wi-Fi + 2 USB | 238 mm x 190 mm x 26 mm | XG-PON |

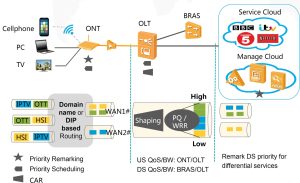

HG8040H FTTH Product Applications
