Penerangan
GYXTA33-26~36Xn Optic Cable is Loose central tube type single thin round steel wire armored optik cable. It is an important part of the modern communication network due to the advantages of long transmission distance, fast transmission speed, large transmission capacity and strong anti-interference ability
GYXTA33-26~36Xn Optic Cable Product Overview
GYXTA33 The structure daripada yang fiber optic cable ialah that a 250μm optik fiber ialah sleeved into a loose tube made daripada tinggi–modulus material, dan yang loose tube ialah filled dengan a kalis air compound. A layer of single thin round steel wire is twisted on the outside of the loose tube to form a compact and round cable core, and the gap in the cable core is filled with water-blocking filler. After yang longitudinal wrapping daripada plastic–coated aluminum strip (Apl), a lapisan daripada polyethylene inner sheath ialah extruded, dan then a single thin round steel wire ialah armored, dan finally yang polyethylene outer sheath ialah extruded into a cable.

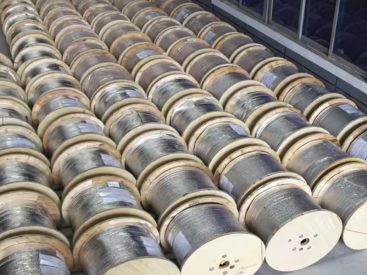

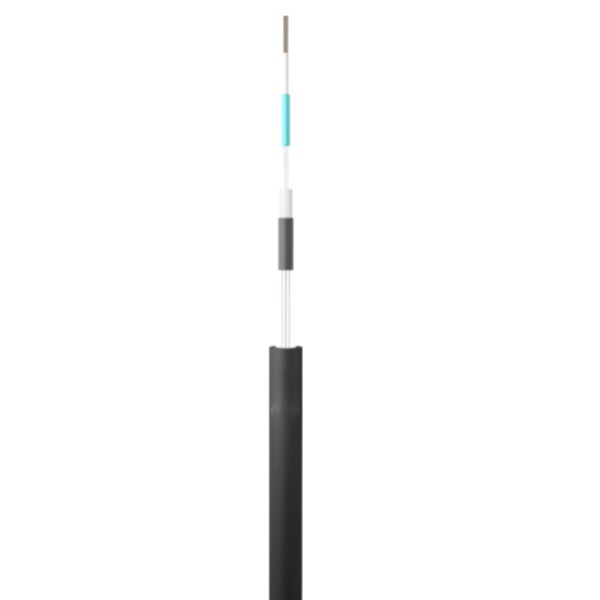

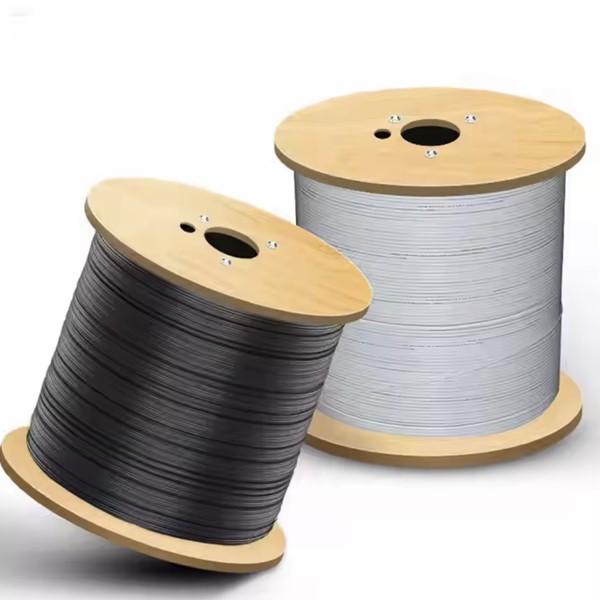

GYXTA33-26~36Xn Optic Cable Product Pictures
GYXTA33-26~36Xn Optic Cable Product Specifications
| Fiber Optic Cable Type (in 2-fiber increments) | Number of fibers | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Statik/Dinamik (mm) |
|||
| GYXTA33-2~12Xn | 2~12 | 448 | 3000/5000 | 12.5D/25D | ||||
| GYXTA33-14~24Xn | 14~24 | 478 | ||||||
| GYXTA33-26~36Xn | 26~36 | 510 | 4000/10000 | |||||
| Fiber type | Attenuation （+20℃） | Lebar jalur | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYXTA33-26~36Xn Optic Cable Product Features
• Very good mechanical dan suhu properties
• Double-layer single thin round steel wire armor makes the fiber optic cable have stronger tensile performance
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• Small size, light weight, easy to lay
• The following measures are taken to ensure the waterproof performance of the cable:
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Good water–blocking material prevents longitudinal water seepage daripada yang fiber optic cable

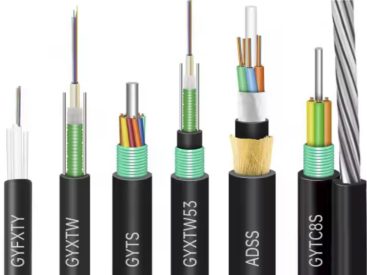

GYXTA33-26~36Xn Optic Cable and More Optic Cables
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (BERSAMA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYXTA33-26~36Xn Optic Cable Product Applications
Permohonan: direct burial, climbing, underwater

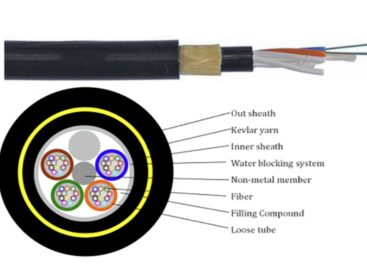

GYXTA33-26~36Xn Optic Cable Product Structure
