Penerangan
GYTA53-26~30Xn Optic Cable is Longgar lengan lapisan terkandas diperkuat perisai optik kabel
GYTA53-26~30Xn Optic Cable Product Overview
The struktur daripada yang GYTA53 serat optik kabel ialah itu a 250μm optik serat ialah lengan ke a longgar tiub dibuat daripada tinggi–modulus bahan, dan yang longgar tiub ialah diisi dengan a kalis air kompaun. sayan tDia cmasukkan of tDia cbijih is a metal rtafsiran cbijih, and fatau some cbijih cables, a lAyer polyethylene (PE) is sgoyah out of tDia metal rtafsiran cbijih. TDia L.oose tUbe (and filler rope) aRe tWisted abulat tDia cEnral rtafsiran cbijih to fOrm a cOmpact and rounded cbijih, and tDia gAPS within tDia cbijih aRe fIlled with water-bmengunci fIlling. The plastic-coated aL.uminum strip (APL) is L.ongitudinally wrapped and extruded with a L.ayer of polyethylene inner sheath, and the double-sided pL.astic-coated steel strip (PSP) is L.ongitudinally wrapped and extruded with polyethylene sheath to form a cable.

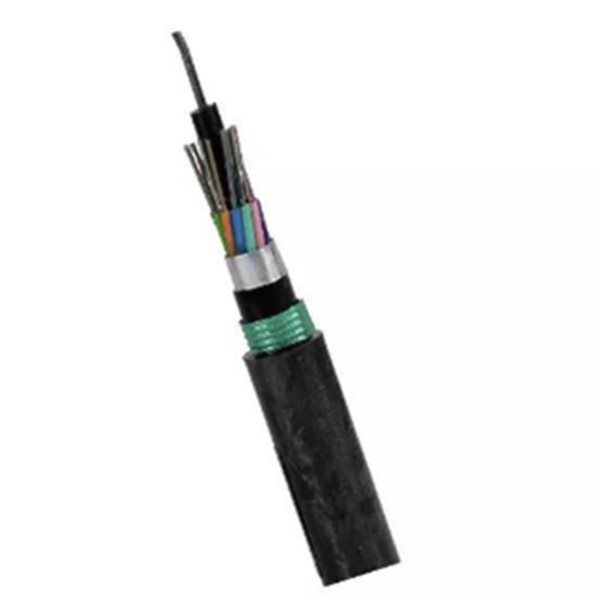

GYTA53-26~30Xn Optic Cable Product Pictures
GYTA53-26~30Xn Optic Cable Product Specifications
| Model kabel gentian optik (dalam kenaikan 2 serat) | Bilangan serat | Bilangan casing | Bilangan tali infill | Berat kabel rujukan (kg/km. |
Daya tegangan dibenarkan Jangka panjang/jangka pendek (N) |
Daya squashing yang dibenarkan Jangka panjang/jangka pendek (N/100mm) |
Bend Radius Statik/Dinamik (mm) |
|
| GYTA53-2~6Xn | 2~ 6 | 1 | 5 | 177 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTA53-8~12Xn | 8~12 | 2 | 4 | 177 | ||||
| GYTA53-14~18Xn | 14~ 18 | 3 | 3 | 177 | ||||
| GYTA53-20~24Xn | 20~ 24 | 4 | 2 | 177 | ||||
| GYTA53-26~30Xn | 26~ 30 | 5 | 1 | 177 | ||||
| GYTA53-32~36Xn | 32~ 36 | 6 | 0 | 177 | ||||
| GYTA53-38~48Xn | 38~ 48 | 4 | 1 | 194 | ||||
| GYTA53-50~60Xn | 50~ 60 | 5 | 0 | 194 | ||||
| GYTA53-62~72Xn | 62~ 72 | 6 | 0 | 204 | ||||
| GYTA53-74~84Xn | 74~ 84 | 7 | 1 | 239 | ||||
| GYTA53-86~96Xn | 86~ 96 | 8 | 0 | 239 | ||||
| GYTA53-98 ~ 108XN | 98~ 108 | 9 | 1 | 275 | ||||
| GYTA53-110~120Xn | 110~ 120 | 10 | 0 | 275 | ||||
| GYTA53-122~132Xn | 122~ 132 | 11 | 1 | 312 | ||||
| GYTA53-134~144Xn | 134~ 144 | 12 | 0 | 312 | ||||
| GYTA53-146~216Xn | 146~ 216 | 13~ 18 | 5~ 0 | 312 | ||||
| Jenis serat | Pelemahan | Lebar jalur | Bukaan Berangka | Fiber Optic cable cut-off wavelength | ||||
| (+20 ℃） | @850nm | @1300nm | ||||||
| @850nm | @1300nm | @1310nm | @1550nm | |||||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40db/km | ≤0.23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | - | - | ≥500mHz · km | ≥500mHz · km | 0.200± 0.015 sudah | - |
| 62.5/125µm | ≤3.3db/km | ≤1.0dB/km | - | - | ≥200MHz · km | ≥500mHz · km | 0.275± 0.015 sudah | - |
GYTA53-26~30Xn Optic Cable Product Features
It has very good mechanical properties and temperature characteristics
The loose tube material itself has good hydrolysis resistance and high strength
The tube is filled with a special ointment to protect the optical fiber
Good compression resistance and softness
The following measures are taken to ensure the waterproof performance of the fiber optic cable:
-Single metal center reinforcing core
-Tiub longgar dipenuhi dengan sebatian kalis air khas
– Pengisian teras penuh
– Plastic-coated aluminium strip (Apl) moisture barrier
-Pita keluli bersalut plastik dua sisi (PSP) meningkatkan kebolehtelapan kelembapan kabel gentian optik
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYTA53-26~30Xn Optic Cable Product and More Optic Cables
Kabel mikro bukan logam unitube dalam/luar(JET)
Kabel Tidak Berperisai Unitube（GYXY）
Unitube Kabel Bukan Berperisai Bukan Logam（GYFXY）
DUA Kabel Gentian Optik Udara FRP (HIDUP SAYA)
Kabel Tidak Berperisai Tiub Longgar Terdampar（GYTA）
Kabel berperisai ringan Tiub Longgar Terdampar（GYTS）
Kabel Berperisai Tiub Longgar Terdampar（GYTY53）
Kabel Berperisai Tiub Longgar Terdampar（GYTA53）
Kabel Bukan Berperisai Anggota Kekuatan Bukan Logam（GYFTY）
Kabel Bukan Berperisai Anggota Kekuatan Bukan Logam(BERSAMA)
Kabel berperisai Ahli Kekuatan Bukan Logam（GYFTY53）
Kabel berperisai Ahli Kekuatan Bukan Logam（GYFTA53）
GYTA53-26~30Xn Optic Cable Product Applications
Permohonan: pipeline, overhead, direct burial
GYTA53-26~30Xn Optic Cable Product Structure
