Penerangan
FMMM03001 is Optical Cable Parts,MPO/PC,MPO/PC,Multimode(OM3,Bending Insensitive),30m,8 Teras,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Dalaman
FMMM03001 Product Overview
Multimode optical fiber uses multiple optical signal modes to transmit data, which is an important form of optical fiber communication. Multimode fiber typically has a larger core diameter than single mode fiber, making it more suitable for short-distance, high-bandwidth transmission. In multimode fibers, the OM (Optical Multimode) standard is widely adopted, and different levels of OM standards represent different performance and application characteristics.
OM1 multimode fiber is one of the first standards to be applied to fiber optic communication systems. With a core diameter of 62.5 microns, it is typically used for short-distance transmissions such as local area networks (LANs) and intranet enterprises. OM1 fibers are based on common LED light sources with short transmission distances and are suitable for low-cost applications.
OM2 multimode fiber is an upgrade standard in the OM family with an improved core diameter compared to OM1. With a core diameter of 50 microns, OM2 fiber is suitable for short-distance transmission scenarios that require higher bandwidth.
OM3 multimode fiber represents an important upgrade in the multimode fiber standard to meet the demand for higher speeds and greater bandwidth. The core diameter is also 50 microns, but by employing more advanced technology, OM3 fiber has achieved a significant improvement in transmission performance.
OM4 multimode fiber is an important upgrade in the OM family, which aims to provide solutions with higher bandwidth, longer transmission distances and higher density. By employing optimized materials and design, OM4 multimode fiber offers a significant step forward in performance.
OM5 multimode fiber is the latest standard in the OM family and is designed to meet the demand for higher bandwidth and greater flexibility in the field of optical communications in the future. Using wavelength division multiplexing technology, OM5 brings more innovation and application possibilities to optical fiber communication systems.

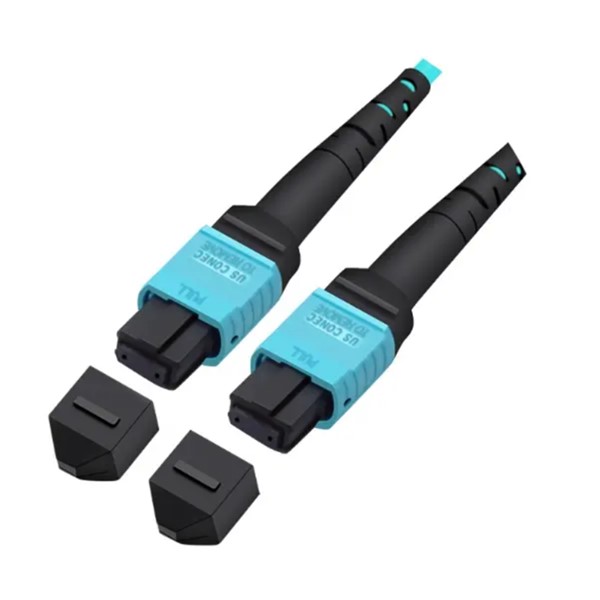

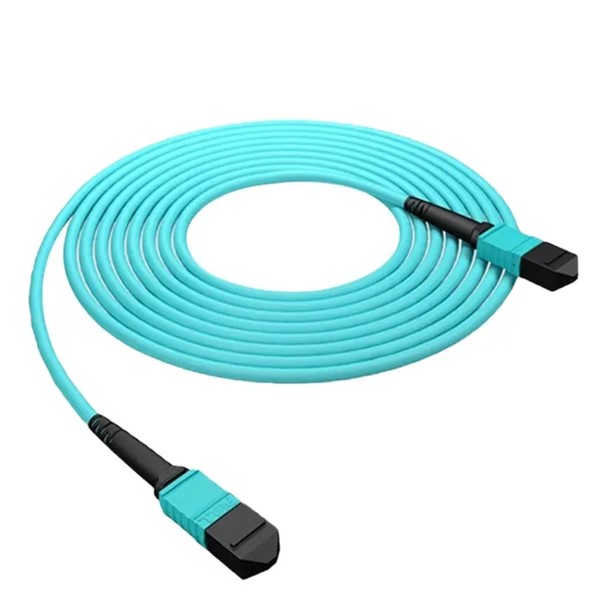

FMMM03001 Product Pictures
FMMM03001 Product Specifications
Jenis Penyambung | MPO UPC to MPO/UPC |
Gred Serat | Bend Insensitive |
Kiraan Serat | Dupleks |
Mod Gentian | OM3 50/125μm |
Panjang gelombang | 850/1300nm |
10G Ethernet Distance | 300m at 850nm |
Kehilangan Sisipan | ≤0.3dB |
Kerugian Pulangan | ≥30dB |
Min. Jejari Bengkok (Teras gentian) | 7.5mm |
Min. Jejari Bengkok (Kabel Gentian) | 20/10D (Dinamik/Statik) |
Attenuation at 850nm | 3.0dB/km |
Attenuation at 1300nm | 1.0dB/km |
Jaket Kabel | Riser (OFNR) |
Cable Outside Diameter (OD) | 2.0mm |
Kekutuban | A (Tx) kepada B (Rx) |
Operating/Storage Temperature | Beroperasi: -20 hingga 70°C (-4 to 158℉)
Penyimpanan: -40 to 80℃ (-40 to 176℉) |
FMMM03001 Product Features
- High-speed transmission: Berbilang mod 10 Gigabit fiber patch cords support multi-mode optical fiber transmission, which can achieve high-speed data transmission, up to 10Gbps or higher rate, to meet the needs of high-speed data transmission
- High bandwidth: It can provide high-bandwidth data transmission, which is suitable for occasions that require a large amount of data transmission, ensuring the efficiency and quality of data transmission
- Kerugian rendah: The use of high-quality multi-mode optical fiber, with the characteristics of low loss, can reduce the attenuation of optical signals, improve the transmission quality and distance, and ensure the stable transmission of signals
- Long life: With high-quality materials and precise manufacturing process, it has the characteristics of long life, which can work stably and reliably for many years, reducing the frequency of replacement and maintenance
- Easy to install: Saiz kecil, light weight, easy to install and maintain, suitable for a variety of complex optical fiber communication environments, improve installation efficiency and ease of use
FMMM03001 Product and More Fiber Cable
Penerangan | Nombor Bahagian | Model | Connector X1 | Connector X2 | Cable length | Bend radius |
Kod tampalan,SC/PC,SC/PC,Mod tunggal,5m,G.652D,3mm | 14130098 | SS-OP-D-SC-S-5 | SC/PC | SC/PC | 5 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Mod tunggal,5m,G.652D,2mm | 14130193 | SS-OP-LC-SC-S-5 | LC/PC | SC/PC | 5 m | 30 mm |
Kod tampalan,LC/PC-LC/PC,Singlemode,G.652D,2mm,5m | 14130195 | SS-OP-D-LC-S-5 | LC/PC | LC/PC | 5 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Mod tunggal,10m,G.652D,2mm | 14130196 | SS-OP-LC-SC-S-10 | LC/PC | SC/PC | 10 m | 30 mm |
Kod tampalan,LC/PC,FC/PC,Mod tunggal,10m,G.652D,2mm | 14130197 | SS-OP-LC-FC-S-10 | LC/PC | FC/PC | 10 m | 30 mm |
Kod tampalan,LC/PC,LC/PC,Mod tunggal,10m,G.652D,2mm | 14130199 | SS-OP-D-LC-S-10 | LC/PC | LC/PC | 10 m | 30 mm |
Kod tampalan,LC/PC,FC/PC,Berbilang mod,10m,A1b,2mm | 14130221 | SS-OP-LC-FC-M-10 | LC/PC | FC/PC | 10 m | 30 mm |
Kod tampalan,LC/PC,LC/PC,Berbilang mod,10m,A1B,2mm | 14130222 | SS-OP-D-LC-M-10 | LC/PC | LC/PC | 10 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Berbilang mod,10m,A1b,2mm | 14130223 | SS-OP-LC-SC-M-10 | LC/PC | SC/PC | 10 m | 30 mm |
Optical adapter-LC/PC-LC/PC-Blue-Shell:Plastic-Sleeve:Zirconia-Square | 14130248 | QW1P0FIBER06 | LC/PC | LC/PC | – | – |
Kod tampalan,LC/PC,LC/PC,Mod tunggal,20m,G.652D,2mm | 14130251 | SS-OP-D-LC-S-20 | LC/PC | LC/PC | 20 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Berbilang mod,30m,A1b,2mm | 14130275 | SS-OP-LC-SC-M-30 | LC/PC | SC/PC | 30 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Mod tunggal,30m,G.652D,2mm | 14130276 | SS-OP-LC-SC-S-30 | LC/PC | SC/PC | 30 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Berbilang mod,20m,A1b,2mm | 14130279 | SS-OP-LC-SC-M-20 | LC/PC | SC/PC | 20 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Mod tunggal,20m,G.652D,2mm | 14130280 | SS-OP-LC-SC-S-20 | LC/PC | SC/PC | 20 m | 30 mm |
Kod tampalan,LC/PC,LC/PC,Berbilang mod,20m,A1b,2mm | 14130295 | SS-OP-D-LC-M-20 | LC/PC | LC/PC | 20 m | 30 mm |
Kod tampalan,LC/PC,LC/PC,Berbilang mod,5m,A1b,2mm | 14130296 | SS-OP-D-LC-M-5 | LC/PC | LC/PC | 5 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Berbilang mod,50m,A1b,2mm | 14130311 | SS-OP-LC-SC-M-50 | LC/PC | SC/PC | 50 m | 30 mm |
Kod tampalan,LC/PC,SC/PC,Mod tunggal,50m,G.652D,2mm | 14130312 | SS-OP-LC-SC-S-50 | LC/PC | SC/PC | 50 m | 30 mm |
Kod tampalan,LC/PC,LC/PC,Mod tunggal,6m,G.652D,2mm | 14130360 | SS-OP-D-LC-S-6 | LC/PC | LC/PC | 6 m | 30 mm |
Optical Cable Parts,MPO/PC,MPO/PC,MULTI-MODE,2m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,43MM SHORT MPO,BENDING INSENSITIVE | 14130823 | F00MPMP01 | MPO/PC | MPO/PC | 2 m | 18 mm |
Optical Cable Parts,MPO/PC,MPO/PC,Multimode(OM3,Bending Insensitive),30m,8 Teras,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Dalaman | 14130823-002 | FMMM03001 | MPO/PC | MPO/PC | 30 m | 17.5 mm |
Optical Cable Parts,MPO/PC,MPO/PC,Multimode(OM3,Bending Insensitive),100m,8 Teras,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Dalaman | 14130823-003 | FMMM10001 | MPO/PC | MPO/PC | 100 m | 17.5 mm |
Optical Cable Parts,MPO/PC,MPO/PC,MULTI-MODE,15m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,60mm MPO,Bending insensitive | 14130923 | SS-OP-D-MPO12-M-15 | MPO/PC | MPO/PC | 15 m | 18 mm |
Optical Cable Parts,MPO/PC,MPO/PC,Berbilang mod,10m,8 cores,GJFH-8A1a.3(OM4),3.5mm,0mm,LSZH,Bending Insensitive | 14134486 | MPO12-MPO12-M4-10 | MPO/PC | MPO/PC | 10 m | |
LC/UPC LC/APC SC/UPC SC/APC FC/APC FC/UPC ST/UPC LSH/APC MTR/UPC G.657.A1 G.657.A2 G.652.D BIF G.651 |
FMMM03001 Product Applications
