Quectel RG502Q-EA 5G Module is 5G Sub-6 GHz LGA modules optimized specially for IoT and M2M applications delivering max data rates up to 5 Gbps downlink and 900 Mbps uplink supporting both 5G NSA and SA modes, Option 3x, 3a and Option 2 network architectures
Quectel RG502Q-EA 5G Module Product Overview
Quectel RG502Q-EA 5G Module is a 5G Sub-6 GHz LGA modules optimized specially for IoT and M2M applications. this module can deliver maximum data rates up to 5 Gbps downlink and 900 Mbps uplink. Meanwhile It supports both 5G NSA and SA modes, Option 3x, 3a and Option 2 network architectures, which makes it backwards compatible with 4G/3G network.
RG50xQ is a series of industrial-grade modules for industrial and commercial applications only. It includes: RG500Q series (RG500Q-EA and RG500Q-NA*), RG501Q-EU* and RG502Q-EA. It supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

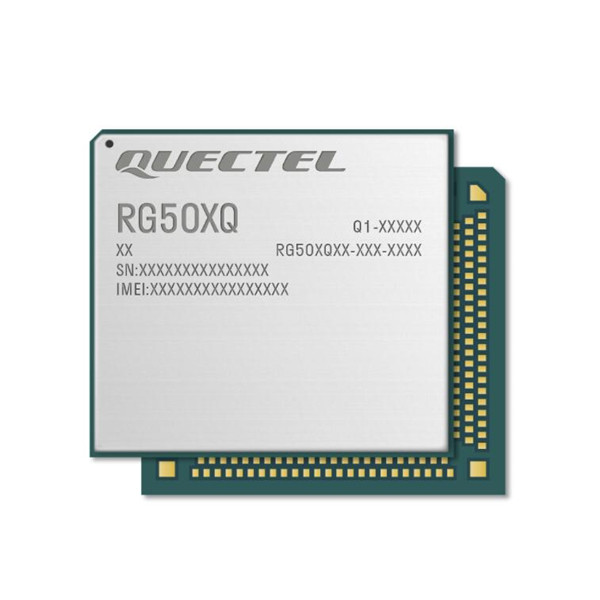

Quectel RG502Q-EA 5G Module Product Picture
Quectel RG502Q-EA 5G Module Product Specifications
Model Name | RG500Q-EA&RG502Q-EA |
Region/Operator | EMEA/APAC |
Dimensions (mm) | 41.0 × 44.0 × 2.75 |
Weight (g) | 11 |
Operating Temperature | -30 °C to +75 °C |
Extended Temperature | -40 °C to +85 °C |
5G NR NSA | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 |
5G NR SA | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 |
LTE-FDD | B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 |
LTE-TDD | B34/B38/B39/B40/B41/B42/B43 |
WCDMA | B1/B3/B5/B6/B8/B19 |
MIMO | DL: 4 × 4 UL②: 2 × 2 |
GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS (Optional) |
Carrier | RG500Q-EA: |
South Korea: LGU+ | |
Australia: Telstra* | |
China: China Telecom/China Mobile/China Unicom | |
RG502Q-EA: TBD | |
Regulatory | RG500Q-EA: |
Europe: CE | |
China: SRRC/NAL/CCC | |
South Korea: KC | |
Australia/New Zealand: RCM | |
RG502Q-EA: | |
Europe: CE | |
Australia/New Zealand: RCM | |
Others | RoHS |
5G SA Sub-6 GHz | RG500Q-EA: 2.1 Gbps (DL)/ 900 Mbps (UL) RG502Q-EA: 4.2 Gbps (DL)/ 900 Mbps (UL) |
5G NSA Sub-6 GHz | RG500Q-EA: 2.5 Gbps (DL)/ 650 Mbps (UL) RG502Q-EA: 5.0 Gbps (DL)/ 650 Mbps (UL) |
LTE | RG500Q-EA: 1.0 Gbps (DL)/ 200 Mbps (UL) |
RG502Q-EA: 2.0 Gbps (DL)/ 200 Mbps (UL) | |
UMTS | 42 Mbps (DL)/ 5.76 Mbps (UL) |
Antennas | Cellular: 6 + 2 (n79)GNSS: × 1 |
Voice | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Supply Voltage Range | 3.3–4.3 V, typ. 3.8 V |
Output Power | Class 3 (24 dBm +1/-3 dB) for WCDMA bands |
Class 3 (23 dBm ±2 dB) for LTE bands | |
Class 3 (23 dBm ±2 dB) for 5G NR bands | |
Class 2 (26 dBm ±2 dB) for LTE B38/B40/B41/B42 bands | |
HPUE④ | |
Class 2 (26 dBm +2/-3 dB) for 5G NR n41/n77/n78/n79 bands HPUE④ | |
Power Consumption | 0.033 mA @ Power off |
1.45 mA @ Sleep, typ. | |
20.1 mA @ Idle | |
(U)SIM | × 2, 1.8/2.95 V |
UART | × 3 |
SD Card | × 1 |
USB 2.0/3.0/3.1 | × 1 |
PCIe 3.0 | Gen3, Lane × 2 |
RGMII | × 1 |
PCM* | × 1 |
I2S* | × 1 |
I2C | × 1 |
SPI | × 1 |
ADC | ● |
RESET_N | ● |
GPIOs (QuecOpen®) | ● |
Wi-Fi | ● |
DTMF* | ● |
DFOTA* | ● |
Quectel RG502Q-EA 5G Module Product Feature
- 5G sub-6GHz module
- 0mm × 44.0mm × 2.75mm
- LGA form factor
- downlink 2.5Gbps / 900Mbps uplink
- Extended temperature range of -40°C to +85°C
- Supporting both NSA and SA modes
- Supporting Option 3x, 3a and Option 2 network architecture
- Supporting Qualcomm® IZat™ location technology Gen9C Lite
- Supporting MIMO
- USB 3.1 / PCIe 3.0 high speed interface
- Quectel Enhanced AT Commands
- Multi-constellation GNSS receiver available
- Feature refinements: DFOTA and VoLTE (optional)
