Description
Quectel EC20 R2.1 LGA Module is a LTE category 4 module optimized specially for M2M and IoT applications, delivering 150Mbit/s downlink and 50Mbit/s uplink data rates. Designed in the compact and unified form factor, EC20 R2.1 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21/EC25/EG25-G modules.
Quectel EC20 R2.1 LGA Module Product Overview
Quectel EC20 R2.1 LGA Module is an upgraded version of EC20 R2.0. Adopting laser engraving process, EC20 R2.1 features a more fashionable appearance, strong metallic texture, better thermal dissipation capability and durable label information, which makes it ideally suited for large-scale production.
This module supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.

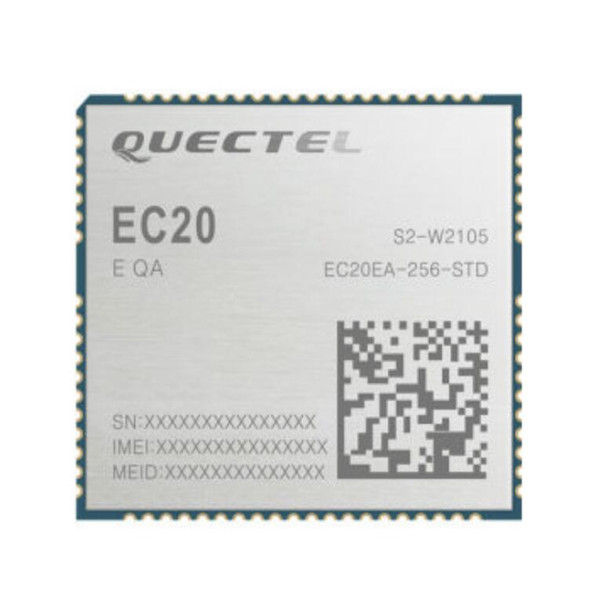

Quectel EC20 R2.1 LGA Module Product Picture
Quectel EC20 R2.1 LGA Module Product Specification
| EC20-CE R2.1: | Enhanced Features | Software Features |
| LTE FDD: B1/B3/B5/B8 | SDIO for Wi-Fi Function (Optional) | USB Serial Driver: |
| LTE TDD: B38/B39/B40/B41 | UART for BT4.0* Function (Optional) | Windows XP, Windows Vista, |
| WCDMA: B1/B8 | eCall* | Windows 7/8/8.1/10, Windows CE 5.0/6.0/7.0*, |
| TD-SCDMA: B34/B39 | DTMF | Linux 2.6/3.x/4.1, Android 4.x/5.x/6.x/7.x |
| CDMA: BC0 | DFOTA: Delta Firmware Upgrade over the Air | RIL Driver: |
| GSM: 900/1800MHz | (U)SIM Card Detection | Android 4.x/5.x/6.x/7.x |
| Data | Antenna: DL MIMO, support Rx-diversity | NIDS Driver: |
| LTE: | GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS | Windows 7/8/8.1/10 |
| LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL) | Electrical Characteristics | ECM Driver: |
| LTE TDD: Max 130Mbps (DL)/Max 35Mbps (UL) | Output Power: | Linux 2.6/3.x/4.1 |
| UMTS: | Class 3 (23dBm±2dB) for LTE FDD | Gobinet Driver: |
| DC-HSDPA: Max 42Mbps (DL) | Class 3 (23dBm±2dB) for LTE TDD | Linux 2.6/3.x/4.1 |
| HSUPA: Max 5.76Mbps (UL) | Class 2 (24dBm+1/-3dB) for TD-SCDMA | Linux qmi wwan Driver: |
| WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) | Class 3 (24dBm+1/-3dB) for WCDMA | 3.x (3.4 and later)/4.1 |
| TD-SCDMA: | Class 3 (24dBm+2/-1dB) for CDMA BC0 | Protocols: |
| Max 4.2Mbps (DL)/Max 2.2Mbps (UL) | Class E2 (27dBm±3dB) for EDGE 900MHz | TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/ |
| CDMA2000: | Class E2 (26dBm±3dB) for EDGE 1800MHz | CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE |
| EVDO: Max 3.1Mbps (DL)/Max 1.8Mbps (UL) | Class 4 (33dBm±2dB) for GSM 900MHz | General Features |
| 1X Advanced: Max 307.2Kbps (DL/UL) | Class 1 (30dBm±2dB) for GSM 1800MHz | 3GPP E-UTRA Release 11 |
| GSM: | Consumption: | Bandwidth: 1.4/3/5/10/15/20MHz |
| EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL) | 11uA @Power off | Extended Temperature: -40°C ~ +85°C |
| GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) | 1.8mA @LTE Sleep (PF=128) | Dimensions: 29.0mm x 32.0mm x 2.4mm |
| Voice | 1.5mA @LTE Sleep (PF=256) | LCC Package |
| Speech Codec Modes: | 20mA @Idle | Approx. 5.3g |
| HR/FR/EFR/AMR/AMR-WB | Sensitivity: | Supply Voltage: 3.3V~4.3V, 3.8V Typ. |
| Echo Arithmetic: | FDD B1: -101.6dBm (10M) | 3GPP TS27.007 and Enhanced AT Commands |
| Echo Cancellation/Noise Reduction | FDD B3: -101.9dBm (10M) | Approvals |
| VoLTE: | FDD B5: -102dBm (10M) | RoHS Compliant |
| Digital Audio and VoLTE (Voice over LTE) | FDD B8: -102.1dBm (10M) | CCC/SRRC/NAL (China) |
| (Optional) | TDD B38: -101.3dBm (10M) | |
| Interfaces | TDD B39: -101.2dBm (10M) | |
| USB 2.0 with High Speed up to 480Mbps | TDD B40: -101.4dBm (10M) | |
| Digital Audio through PCM (Optional) | TDD B41: -101.4dBm (10M) | |
| 1.8V/3.0V (U)SIM Interface | WCDMA B1: -112dBm | |
| NETLIGHT × 2 (NET_STATUS and NET_MODE) | WCDMA B8: -112dBm | |
| UART × 2 (Main Port and Debug Port) | TD-SCDMA B34: -110dBm | |
| RESET (Active Low) | TD-SCDMA B39: -110dBm | |
| PWRKEY (Active low) | CDMA BC0: -108dBm | |
| Solder Pads for Primary, Rx-diversity and GNSS | GSM 900: -109dBm | |
| Antennas | GSM 1800: -109dBm | |
| ADC × 2 | ||
| SDIO × 2 (For Wi-Fi and SD Card) |
Quectel EC20 R2.1 LGA Module Product Feature
- LTE category 4 module optimized for M2M and IoT applications
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- Multi-constellation GNSS receiver available for applications
- requiring fast and accurate fixes in any environment
- Feature refinements: supports DFOTA, eCall* and DTMF
- MIMO technology meets demands for data rate and link
- reliability in modem wireless communication systems
