Description
Huawei S5732-H24S4X6QZ-V2 Switch is a next-generation enhanced all-optical GE/10GE hybrid switch with 24 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports and 1+1 power backup
Huawei S5732-H24S4X6QZ-V2 Switch Product Overview
It is the next-generation enhanced all-optical Ethernet switch with Forwarding performance: 456 Mpps and Switching capacity: 608 Gbps/2.4 Tbps. S5732-H-V2 boasts various IDN features. For example, the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. In addition to capabilities of traditional switches, S5732-H-V2 provides open interfaces and supports user defined forwarding behavior. Enterprises can use the open interfaces to develop new protocols and functions independently or jointly with equipment vendors to build campus networks meeting their own needs.
With these merits, S5732-H-V2 can function as core switches for small-sized campus networks and aggregation/access switches for medium- and large-sized campus networks, and also work as access switches for Metropolitan Area Network.

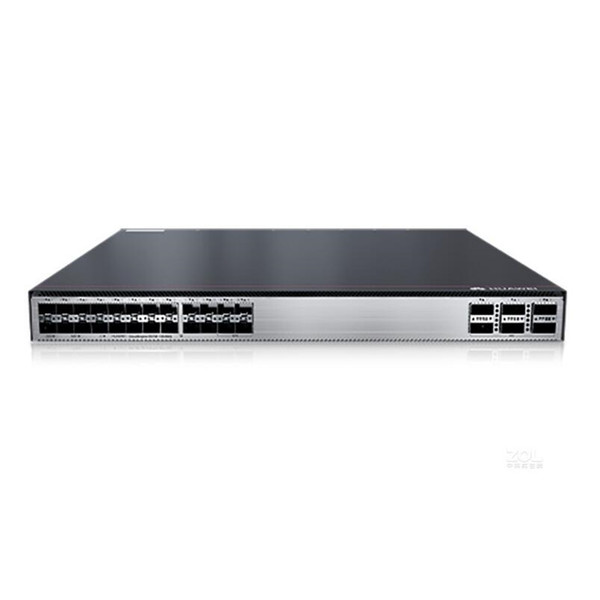

Huawei S5732-H24S4X6QZ-V2 Switch Product Pictures
Huawei S5732-H24S4X6QZ-V2 Switch Product Specifications
| Model | CloudEngine S5732-H24S4X6QZ-V2 |
| Forwarding Performance | 456 Mpps |
| Switching Capacity² | 608 Gbps/2.4 Tbps |
| Fixed Ports | 24 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports |
| Extended Slots | One extended slot, support 2*40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards(expected to be supported in R23C00) |
| MAC Features | IEEE 802.1d compliance |
| Automatic MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level |
| VXLAN | VXLAN L2 and L3 gateways |
| Centralized and distributed gateways | |
| BGP-EVPN | |
| Configured through the NETCONF protocol | |
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) |
| LNP (similar to DTP) | |
| VCMP (similar to VTP) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 7.06 kg (15.56 lb) |
| Weight with packaging [kg(lb)] | 10.04 kg (22.13 lb) |
| Typical power consumption [W] | 174 W |
| Typical heat dissipation [BTU/hour] | 593.71 BTU/hour |
| Maximum power consumption [W] | 224 W |
| Maximum heat dissipation [BTU/hour] | 764.31 BTU/hour |
| Static power consumption [W] | 133 W |
| MTBF [year] | 52.24 year |
Huawei S5732-H24S4X6QZ-V2 Switch and More Models
S5732-H24S4X6QZ-V2
S5732-H24S4X6QZ-TV2
S5732-H44S4X6QZ-V2
S5732-H44S4X6QZ-TV2
S5732-H24UM4Y2CZ-V2 (02354VCM)
S5732-H24UM4Y2CZ-V2 (02354VCM-001)
S5732-H24UM4Y2CZ-V2 (02354VCM-002)
S5732-H24UM4Y2CZ-TV2 (02354VCN)
S5732-H24UM4Y2CZ-TV2 (02354VCN-001)
S5732-H24UM4Y2CZ-TV2 (02354VCN-002)
S5732-H24UM4Y2CZ-TV2 (02354VCN-003)
S5732-H48UM4Y2CZ-V2 (02354VBU)
S5732-H48UM4Y2CZ-V2 (02354VBU-001)
S5732-H48UM4Y2CZ-V2 (02354VBU-002)
S5732-H48UM4Y2CZ-TV2 (02354VCJ)
S5732-H48UM4Y2CZ-TV2 (02354VCJ-001)
S5732-H48UM4Y2CZ-TV2 (02354VCJ-002)
S5732-H48UM4Y2CZ-TV2 (02354VCJ-003)
Huawei S5732-H24S4X6QZ-V2 Switch Ordering Info
| CloudEngine S5732H44S4X6QZ-V2 | CloudEngine S5732-H44S4X4QZ-V2 (44*GE SFP ports, 4*10GE SFP+ ports, 6*40GE QSFP ports, 1*expansion slot, without power module) |
| CloudEngine S5732H44S4X6QZ-TV2 | CloudEngine S5732-H44S4X4QZ-TV2 (44*GE SFP ports, 4*10GE SFP+ ports, 6*40GE QSFP ports, 1*expansion slot, HTM, without power module) |
| CloudEngine S5732H24S4X6QZ-V2 | CloudEngine S5732-H24S4X6QZ-V2 (24*GE SFP ports, 4*10GE SFP+ ports, 6*40GE QSFP ports, 1*expansion slot, without power module) |
| CloudEngine S5732H24S4X6QZ-TV2 | CloudEngine S5732-H24S4X6QZ-TV2 (24*GE SFP ports, 4*10GE SFP+ ports, 6*40GE QSFP ports, 1*expansion slot, HTM, without power module) |
| PAC600S12-PB | 600W AC power module |
| PDC1K2S12-CE | 1200W DC power module |
| FAN-031A-B | Fan module |
| L-MLIC-S57H | S57XX-H Series Basic SW,Per Device |
| N1-S57H-M-Lic | S57XX-H Series Basic SW,Per Device |
| N1-S57H-M-SnS1Y | S57XX-H Series Basic SW,SnS,Per Device,1Year |
| N1-S57H-F-Lic | N1-CloudCampus,Foundation,S57XX-H Series,Per Device |
| N1-S57H-F-SnS1Y | N1-CloudCampus,Foundation,S57XX-H Series,SnS,Per Device,1Year |
| N1-S57H-A-Lic | N1-CloudCampus,Advanced,S57XX-H Series,Per Device |
| N1-S57H-A-SnS1Y | N1-CloudCampus,Advanced,S57XX-H Series,SnS,Per Device,1Year |
| N1-S57H-FToA-Lic | N1-Upgrade-Foundation to Advanced,S57XX-H,Per Device |
| N1-S57H-FToA-SnS1Y | N1-Upgrade-Foundation to Advanced,S57XX-H,SnS,Per Device,1Year |
Huawei S5732-H24S4X6QZ-V2 Switch Product Applications
