Description
Huawei S1720-52GWR-PWR-4P-E Switch is easy to install and maintain with Downlink: 48 Ethernet 10/100/1,000 ports, Uplink: 4 Gig SFP ports, PoE+ and AC power supply. it offers Forwarding performance: 78 Mpps and Switching Capacity: 336 Gbit/s
Huawei S1720-52GWR-PWR-4P-E Switch Product Overview
The switch is ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and others. It is easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks.
Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.
Unmanaged switches: Include S1700
16G, S1700 24 AC, S1700 24GR, S1724G AC, S1700 52R 2T2P AC and S1700 52GR 4X
Web managed switches: Include S1720
10GW 2P, S1720 10GW PWR 2P, S1720 28GWR 4P, S1720 28G WR 4X, S1720 28GWR PWR 4P, S1720 28GWR PWR 4TP, S1720 28GWR PWR 4X, S1720 52GWR 4P, S1720 52GWR 4X, S1720 52GWR PWR 4P and S1720 52GWR PWR 4X

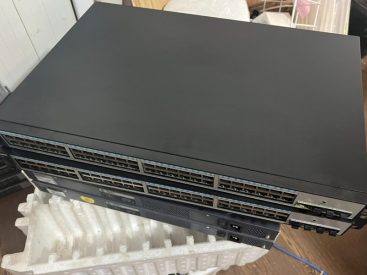

Huawei S1720-52GWR-PWR-4P-E Switch Product Pictures
Huawei S1720-52GWR-PWR-4P-E Switch Product Specifications
| Product Model | S1720-28GWR-4P-E S1720-28GWR-PWR-4P-E S1720-28GWR-PWR-4TP-E S1720-28GWR-4X-E S1720-28GWR-PWR-4X-E S1720-52GWR-4P-E S1720-52GWR-PWR-4P-E S1720-52GWR-4X-E S1720-52GWR-PWR-4X-E |
| Device Management | SNMP Web system network management (HTTPS) DHCP client User password protection One-key restoration CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series) |
| Switching Capacity | S1720-28GWR-P/TP series: 68 Gbit/s S1720-28GWR-X series: 168 Gbit/s S1720-52GWR-P series: 336 Gbit/s S1720-52GWR-X: 336 Gbit/s |
| Forwarding Performance | S1720-28GWR-P/TP series: 42 Mpps S1720-28GWR-X series: 96 Mpps S1720-52GWR-P series: 78 Mpps S1720-52GWR-X series: 132 Mpps |
| Fixed Ports | S1720-28GWR-P series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-28GWR-TP series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports S1720-28GWR-X series Downlink: 24 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports S1720-52GWR-P series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 1,000 Base-X optical ports S1720-52GWR-X series Downlink: 48 x 10/100/1,000 Base-T electrical ports Uplink: 4 x 10G Base-X optical ports |
| VLAN Features | 4K VLANs Access port Trunk port Hybrid port Management VLAN Voice VLAN |
| IP Routing | IPv4 and IPv6 static routing RIP, RIPng, and OSPF (S1720-E series) |
| Device Maintenance | Remote Network Monitoring (RMON) “System log Ping and traceroute Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) “ |
Huawei S1720-52GWR-PWR-4P-E Switch Product Features
- S1700 can adjust the power output for transmissions based on the cable length. It can also set any ports that are not transmitting traffic to sleep mode.
- The models that use a fan free design reduce power consumption and noise. Non-blocking and High-speed Forwarding
- All S1700 ports provide Layer 2 wire speed forwarding capabilities to ensure non blocking packet forwarding. S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost effective.
- S1700/S1720 M AC address table supports up to 8K/16K of MAC addresses, making it easy to expand networks and deploy new services. The S1700 support layer 3 static routing forwarding which include IPv4 and IPv6 protocols.
- When a PoE switch is rebooted after the software version is upgraded, the power supply to PDs is not interrupted. This capability ensures that PDs are not powered off during the switch reboot.
Huawei S1720-52GWR-PWR-4P-E Switch Product and More Models
S1720-10GW-2P-E (8 Ethernet 10/100/1,000 ports, 2 Gig SFP, with license, AC 110/220V)
S1720-10GW-PWR-2P-E (8 Ethernet 10/100/1,000 PoE+ ports, 2 Gig SFP, with license, AC 110/220V)
S1720-28GWR-4P-E (24 Ethernet 10/100/1,000 ports, 4 Gig SFP, with license, AC 110/220V)
S1720-28GWR-4X-E (24 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, with license, AC 110/220V)
S1720-28GWR-PWR-4P-E (24 Ethernet 10/100/1,000 ports, 4 Gig SFP, PoE+, with license, 370W POE AC 110/220V)
S1720-28GWR-PWR-4X-E (24 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, PoE+, with license, 370W POE AC 110/220V)
S1720-52GWR-4P-E (48 Ethernet 10/100/1,000 ports, 4 Gig SFP, with license, AC 110/220V)
S1720-52GWR-4X-E (48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, with license, AC 110/220V)
S1720-52GWR-PWR-4P-E (48 Ethernet 10/100/1,000 ports, 4 Gig SFP, PoE+, with license, 370W POE AC 110/220V)
S1720-52GWR-PWR-4X-E (48 Ethernet 10/100/1,000 ports, 4 10 Gig SFP+, PoE+,with license,370W POE AC 110/220V)
S1720-28GWR-PWR-4TP-E (24 Ethernet 10/100/1,000, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP, 8 ports PoE+, with license, 124W POE AC, front access)
S1720X-16XWR-E (16 10Gig SFP+, with license, AC110/220V)
S1720X-32XWR-E (32 10Gig SFP+, with license, AC110/220V)
Huawei S1720-52GWR-PWR-4P-E Switch Product Applications
